3.5 Ton, W 31 1/2 x H 17 1/2 x D 21 1/2, Horizontal Cased Evaporator Coil

3.5 Ton, W 31 1/2 x H 17 1/2 x D 21 1/2, Horizontal Cased Evaporator Coil

Model: Blueridge BH1P42B (Item No. 695215)

Actual product may vary from photos.

Model: Blueridge BH1P42B (Item No. 695215)

You save: 36%
Compare to: $439.00
Or as low as
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.

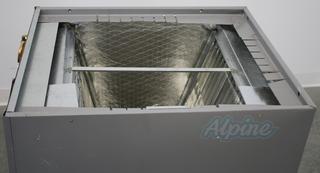

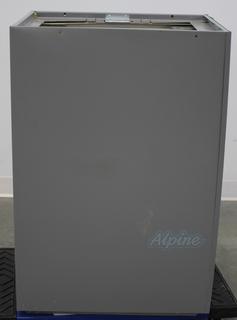

This Blueridge 3.5 Ton Horizontal Cased Evaporator Coil has some cosmetic damage incurred during shipping. Unit has significant coil damage. For detailed photos please click 'See Additional Images' above. This Blueridge 3.5 Ton Horizontal Cased Evaporator Coil meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

The Blueridge BH1P Cased Horizontal Flow Indoor Coils are for horizontal applications in air conditioning or heat pump split systems.

This unit comes equipped with an orifice (flowrater) for the listed tonnage. If you wish to pair the coil with a condenser or heat pump of a different tonnage, an orifice in that tonnage will need to be used (unless a TXV is required instead). See this step-by-step guide to learn how to easily change the orifice.  Alternatively, instead of an orifice a thermostatic expansion valve (TXV) may be used or required for some equipment. Check out some additional installation Tips for Selecting Matched Components and Line Sets to help with your installation project.


Standard Features

  • Dedicated horizontal flow application
  • OmniguardTM Total Corrosion Protection* our advanced evaporator coil helps protect against leaks and corrosion for long term performance
  • Microban® antimicrobial additive in the drain pan to resist mold and mildewgrowth
  • Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
  • Preformed flanges in outlet for quick and easy plenum connections
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • Interlocking door assemblies and snug line seal grommets to minimize air leakage
  • Foil-face insulation for easy cleaning
  • Tubing located at door split for easy coil service or cleaning
  • All drain pans are compatible with UV lights
  • All piston coils are compatible with R22 or R410a
  • Factory installed TXV for quick installation in high efficiency applications.
  • Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage.
  • Dual condensate drains on front and back of coil allows flexibility of placement to accomodate left or right airflow furnaces
  • 10-year limited parts warranty available when applied with a system. See limited warranty document for details
view information
Cooling BTUs
42000 BTU
view information
view information
Suction Line Size (OD)
7/8 Inches
view information
Liquid Line Size (OD)
3/8 Inches
view information
Cooling Tonnage
3.5 Tons
Number of Rows
view information
Cabinet/Chassis Size
Coil Width
31.5000 inches
Coil Height
17.5000 inches
Coil Depth
21.2500 inches
Equipment Type
Evaporator Coil
view information
Orifice Size
0.076 inches
Plenum Opening Height
16.38 inches
Plenum Opening Width
20.38 inches
Shipping Weight
66 lbs
view information
R-22 / R-410A
