1.5 Ton, W 12 7/8 x H 11 1/4 x D 20, Uncased Evaporator Coil

1.5 Ton, W 12 7/8 x H 11 1/4 x D 20, Uncased Evaporator Coil

Model: Goodman CAUFA1714A6 (Item No. 704697)

Actual product may vary from photos.

Model: Goodman CAUFA1714A6 (Item No. 704697)

$280.00
Or as low as
You save: 34%
Compare to: $426.00
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
highlights

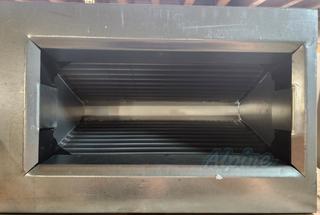

This CAUFA1714A6 has some cosmetic damage incurred during shipping. Unit has minor fin damage on both sides, For detailed photos please click 'See Additional Images' above. This CAUFA1714A6 meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

The Goodman® CAUFA Uncased Upflow/Downflow Indoor Coils are made for split system air conditioners and heat pumps.

The All-Aluminum evaporator coil is constructed from aluminum tubing, fins and end plates giving you asingle metal solution for outstanding, time-tested, heat transfer performance properties.

For Tips for Selecting Matched Components and Line Sets click here.



Standard Features

  • Compact and lightweight all-aluminum evaporator coil with AlumaFin7 technology

  • Optimized for use with R-410A refrigerant

  • Check flowrator for cooling and heat pump applications

  • 21" depth for easier attic access

  • Rust resistant, thermoplastic drain pans featuring a low water-retention design

  • DecaBDE-free thermoplastic drain pan with secondary drain connections

  • UV-resistant drain pan

  • AHRI certified; ETL listed



Note:  Before you purchase an evaporator coil, make sure the width and height of the coil does not exceed the available area in your ductwork where the coil will be installed.  If it does, select a coil with smaller dimensions.  (If the coil depth exceeds the available space, this is usually okay since the ductwork can be modified to make it fit, as shown in our installation video.)

Specs
System Information
view information
Configuration
Downflow / Upflow
Number of Rows
3
Equipment Type
Evaporator Coil
view information
Refrigerant
R-22 / R-410A
Performance
view information
Base Cooling Capacity
17000 BTU
view information
Cooling Tonnage
1.5 Tons
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
3/4 Inches
Product Dimensions
view information
Cabinet/Chassis Size
A
Coil Width
12 7/8 inches
Coil Height
11 1/4 inches
Coil Depth
20.000000000 inches
Product Weight
16 lbs
Shipping Weight
16 lbs
Important Measurements
view information
Orifice Size
0.051 inches
