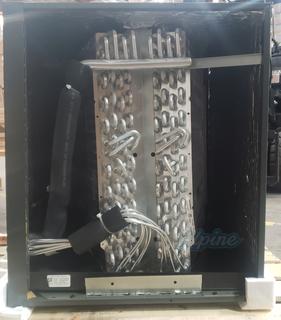

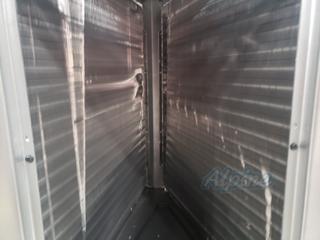

This  Evaporator Coil has some cosmetic damage incurred during shipping. For detailed photos please click 'See Additional Images' above. This  Evaporator Coil meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

The Goodman® CHPF Cased Horizontal “A” Coils are made for split system air conditioners and heat pumps. Each case is made of quality galvanized steel with a painted, leather-grain-embossed finish. The coil’s cabinet is painted Architectural Gray.

This coil can operate with a heat pump or air conditioner of two different tonnages, as noted in the product description above. The unit comes equipped with an orifice (flowrater) for the larger listed tonnage. If you wish to pair the coil with an air conditioner or heat pump of the smaller tonnage, an orifice in that tonnage will need to be used (unless a TXV is required instead). If you are purchasing a new Goodman heat pump or air conditioner, the required orifice can be found on our site by clicking the Accessories tab on the product page for that item. However, if you are purchasing this coil only and wish to pair it with equipment of the lower tonnage rating as listed on the description for this coil, you will need to separately purchase the smaller orifice and install it in the coil before operating. See this step-by-step guide to learn how to easily do so. Alternatively, instead of an orifice a thermostatic expansion valve (TXV) may be used or required for some equipment, such as 14 SEER and higher heat pumps and all equipment that uses R-410A refrigerant (see equipment spec sheets for details or call us for assistance).

For Tips for Selecting Matched Components and Line Sets click here.

Standard Features

• Suitable for use with R-410A and R-22 refrigerants
• Rust-proof, high-temperature, thermoplastic drain pans feature a low water-retention design
• Available with check flowrater expansion device for heat pump or cooling-only applications
• Rifled tubing and corrugated aluminum fin coils
• Foil-faced insulation

Cabinet Features

• High-quality post-paint cabinet
• Split-seam front for easy access
