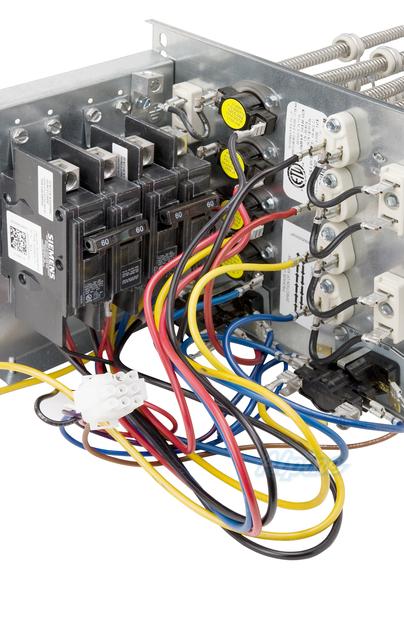

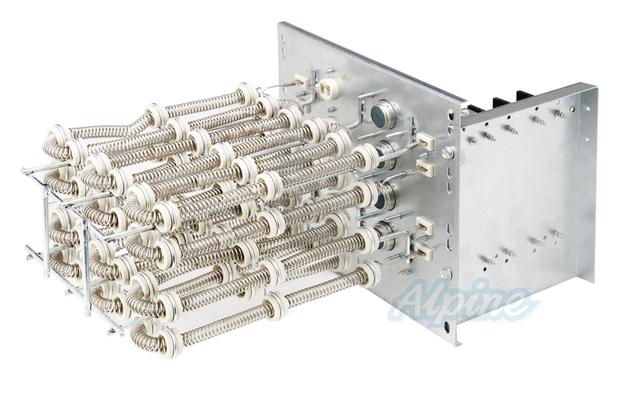

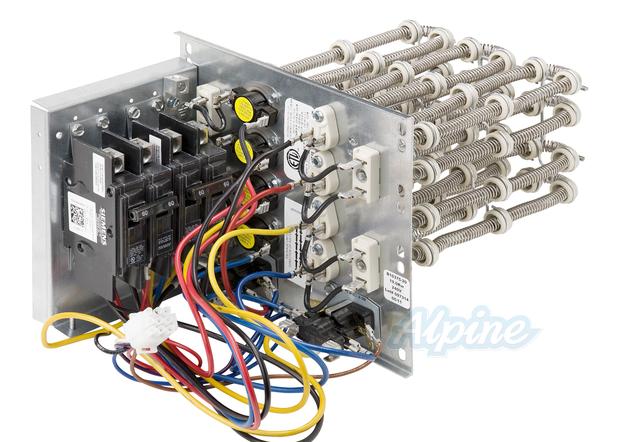

19.5 Kilowatt Heater Coil (68,200 BTUs of Heat), For Goodman Package Units

19.5 Kilowatt Heater Coil (68,200 BTUs of Heat), For Goodman Package Units

Model: Alpine AH-HKP-20C

Actual product may vary from photos.

Model: Alpine AH-HKP-20C

Or as low as

Volume Discounts
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.

The Alpine branded heater coils can be manufactured either by Goodman or by Warren. They are designed to install in and work perfectly with the Goodman models that they are accessorized to.

This 240 volt heater coil can be added to a Goodman self contained air conditioner to provide winter-time heating capabilities or in a self contained heatpump as an auxilary heat source.

Produces 68,200 BTUs of heat.

Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into self contained air conditioners and heat pumps. Rust-resistant nickel chromium heat elements.

If you are installing the heater coil in a packaged air conditioner or heat pump, another circuit in addition to the heater coil circuit(s) is still required to operate the packaged unit

Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see the Specifications tab above for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.

view information
Stages of Heat
view information
Electrical Information
view information
Amperage Requirement (Circuit 1 / Circuit 2)
50 / 50
view information
60 Hz
view information
Voltage Phase
Maximum Overcurrent Protection (Single Circuit)
Multiple options - Please check documentation
view information
208 - 240 Volts
view information
Parts Warranty
5 Years
Replacement Parts
Goodman SPW-01
Goodman SPW-01
Single Point Wiring Kit
DiversiTech 640-UL25
DiversiTech 640-UL25
DiversiTech 640-UL25 Foil Tape
