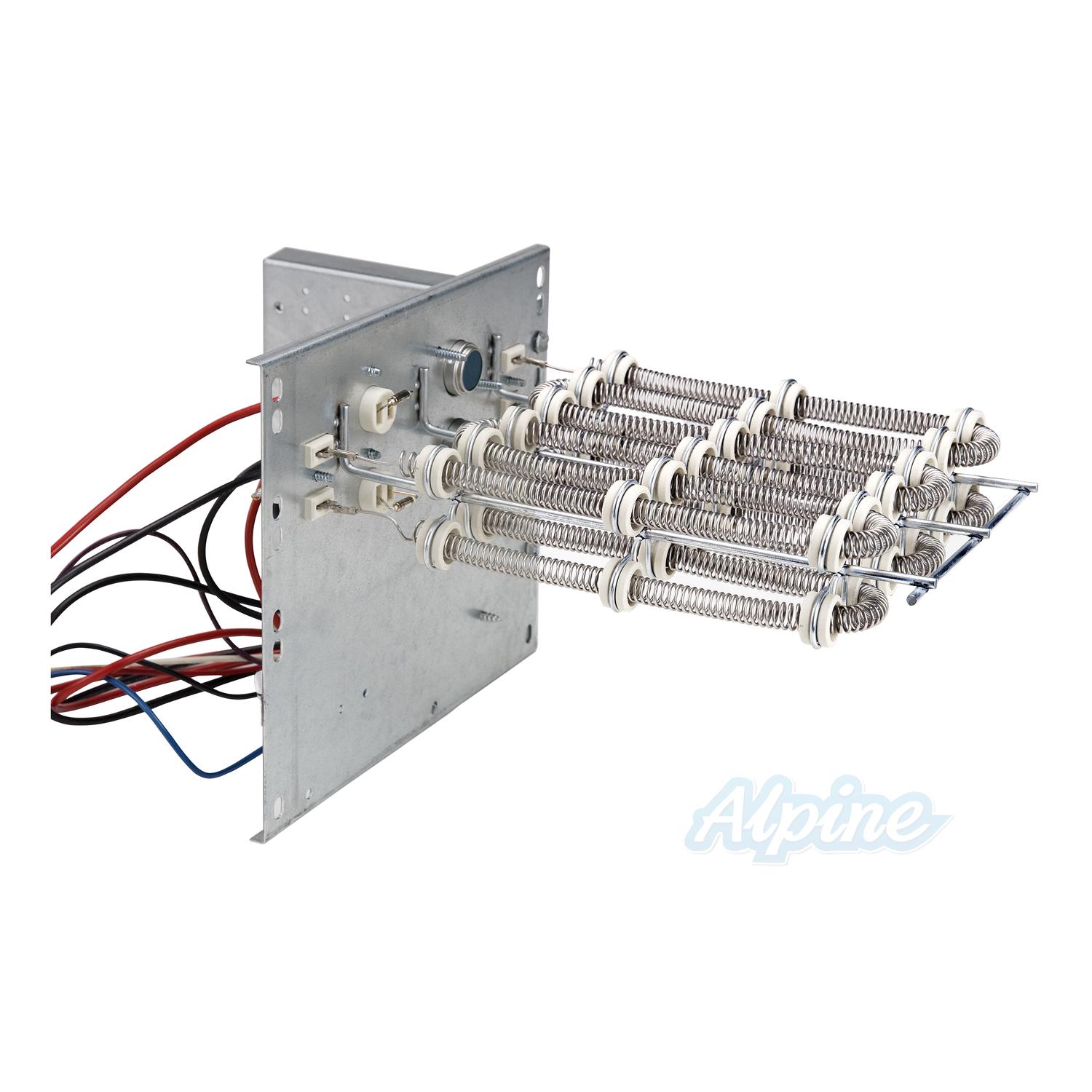

10 Kilowatt Heater Coil (34,100 BTUs of Heat)

10 Kilowatt Heater Coil (34,100 BTUs of Heat)

Model: Alpine AHKP-10C

Mouse over or pinch image to zoom in.
Actual product may vary from photos.

Model: Alpine AHKP-10C

$114.99
You save: 23%
Compare to: $150.24
Or as low as
Volume Discounts
Qty:
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

This 240 volt heater coil can be added to a Goodman self contained air conditioner to provide winter-time heating capabilities or in a self contained heatpump as an auxilary heat source.

Produces 24,100 BTUs of heat.

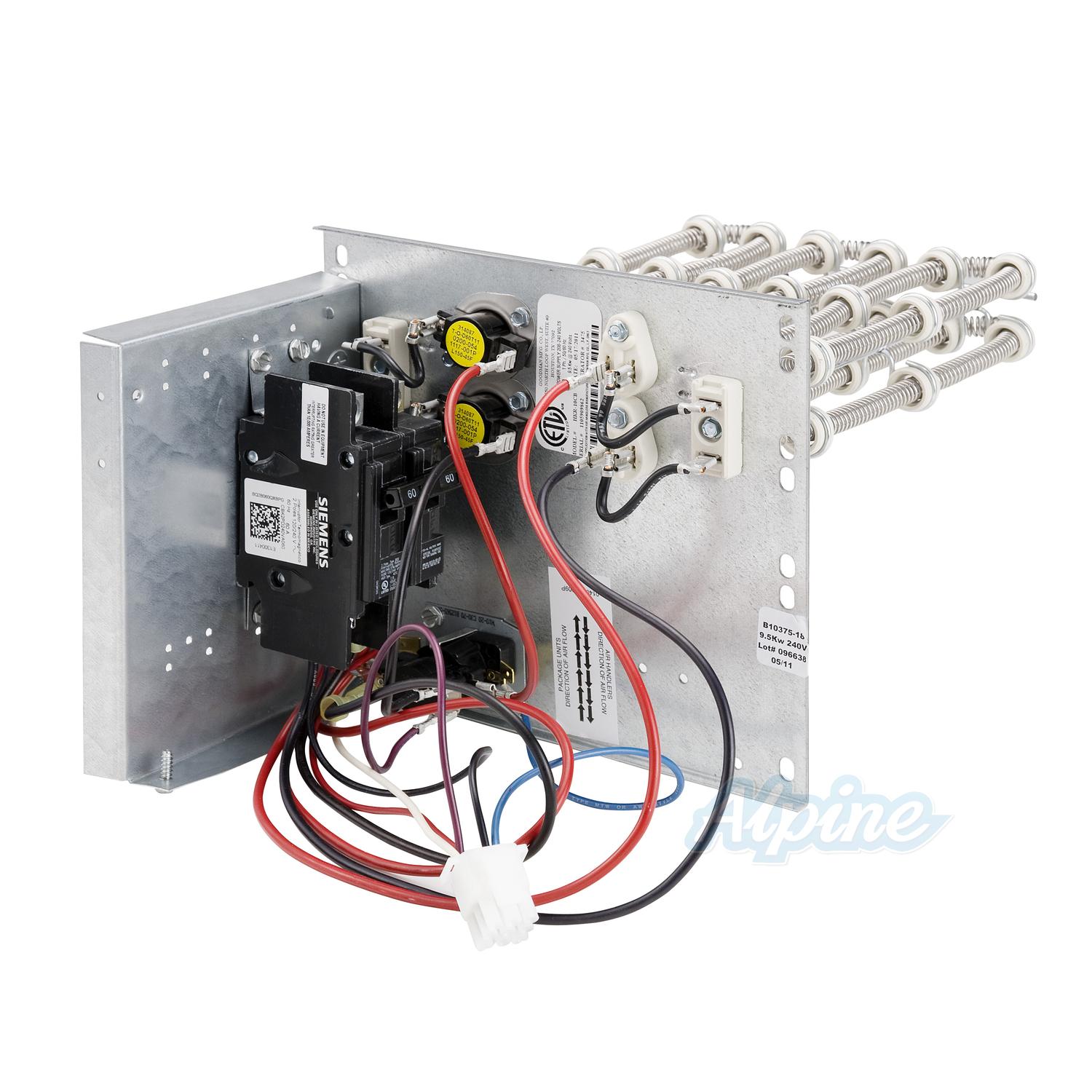

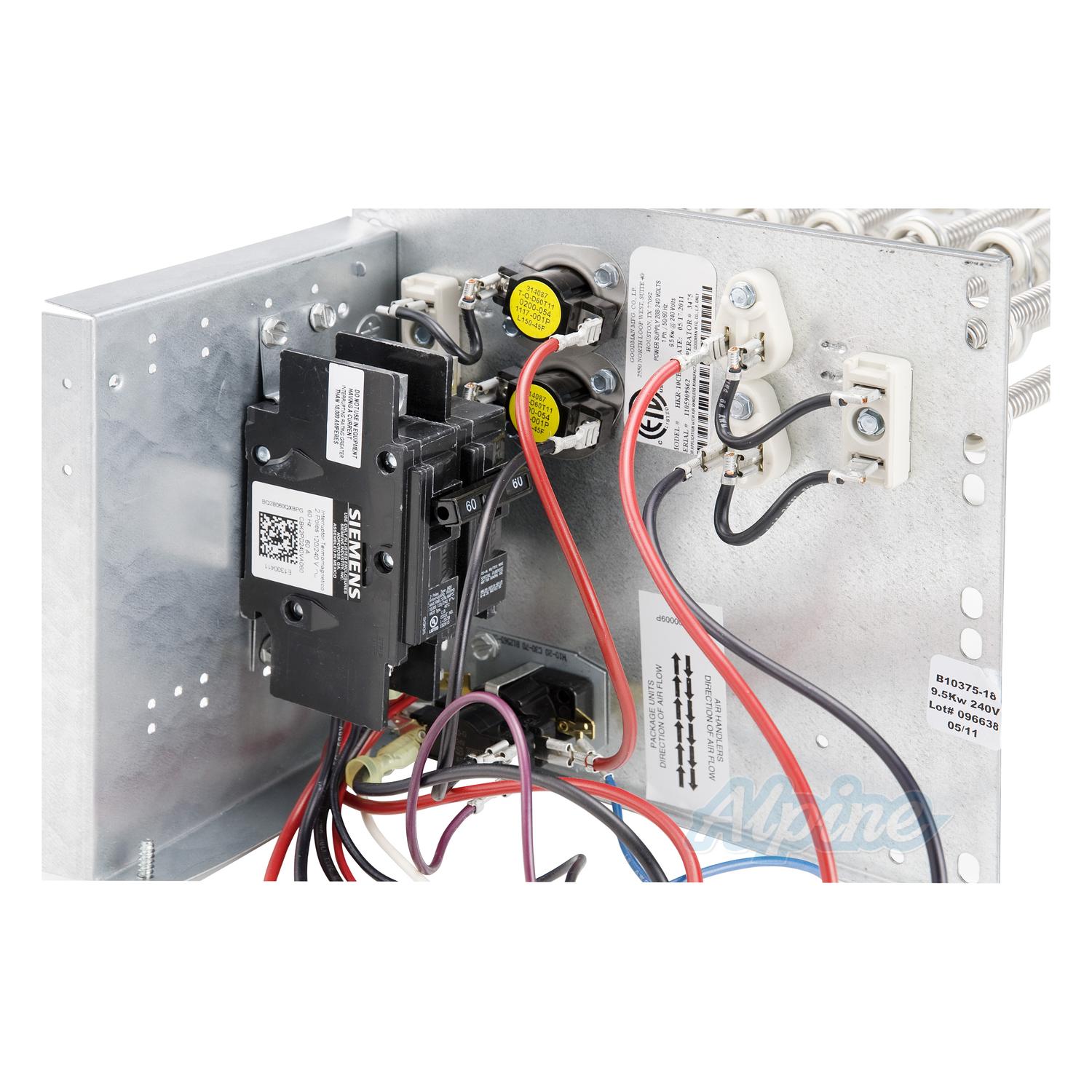

Controlled by sequencers for optimum temperature balance. Completely assembled and tested. Built-in overcurrent protection on all units as indicated in electrical data chart (see spec sheet). Multiple branch circuit capability. High temperature limit controls for safe operation. Plug-in wiring harness for easy installation into self contained air conditioners and heat pumps. Rust-resistant nickel chromium heat elements.
If you are installing the heater coil in a packaged air conditioner or heat pump, another circuit in addition to the heater coil circuit(s) is still required to operate the packaged unit
Depending on the heater coil size being installed, one or two circuits to the heater coil will be necessary (see the Specifications tab above for quantity and amperage of circuits required for this heater coil.) At your home's circuit panel, individual 220 volt double-pole circuit breakers are required for each circuit.

Specs
Stages of Heat
1
Kilowatt
9.5
Maximum Overcurrent Protection (Single Circuit)
50
Voltage
208 - 240 Volts
Frequency
60 Hz
Voltage Phase
1
