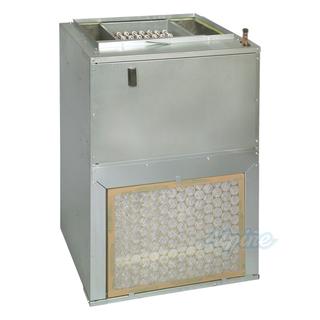

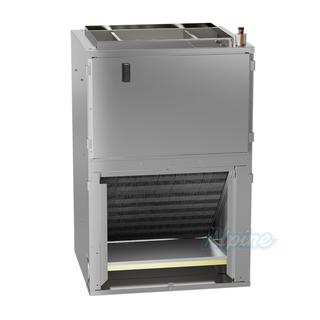

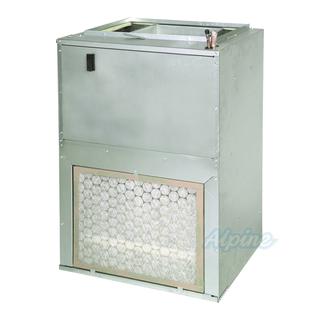

The Goodman AWST Wall Mount Air Handler for R-32 refrigerant systems offers an unbeatable combination of high performance and low cost. The SmartFrame™ rust-resistant, fully insulated steel cabinet allows you to easily configure the unit for horizontal, or vertical upflow or downflow installations. The high-efficiency direct drive multi-speed blower is adjustable to your particular needs and has a time-delay to optimize comfort. This system also comes equipped with a factory-installed thermal expansion valve (TXV) designed to be used with R-32 cooling and heat pump applications. See below for more features.

Standard Features

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Direct drive, high-efficiency multi-speed blower motor
• All-aluminum evaporator coil
• Optimized for use with R-32 refrigerant
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Factory installed pull type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• Built-in filter rack (filter included)
• Large chassis with front return only
• Wall hanging bracket provided
• AHRI certified; ETL listed
• UL 60335 2-40 Compliant
• Factory installed R-32 sensor designed for lifespan of coil
