3 Ton, 13 SEER Self-Contained Packaged Air Conditioner, Multi-Position
3 Ton, 13 SEER Self-Contained Packaged Air Conditioner, Multi-Position
New Item!
Model: Goodman GPC1336M41
Actual product may vary from photos.
This product is no longer available.
Model: Goodman GPC1336M41
Check Out These Similar Items
3 Ton Cooling / 90,000 BTU Heating 14 SEER Gas Package Unit, Multi Positional
Blueridge BPRPGE1436-090EP
highlights

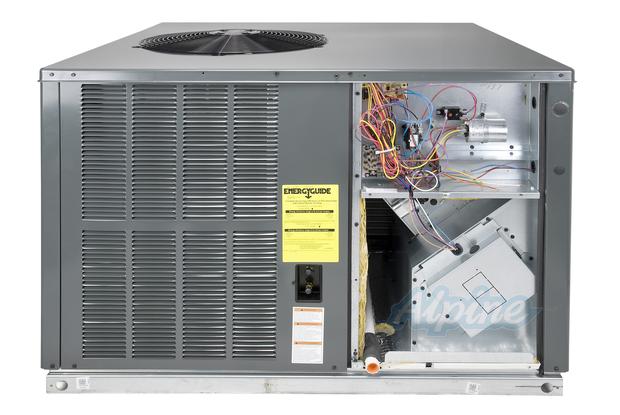

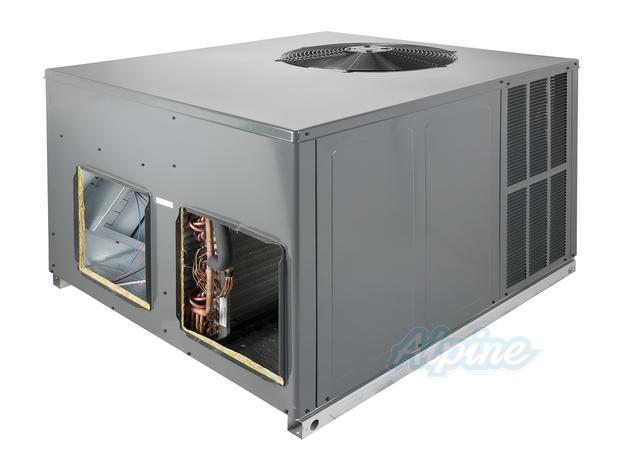

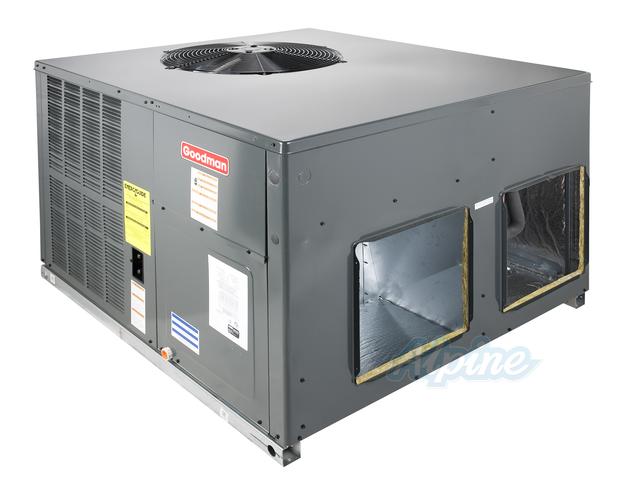

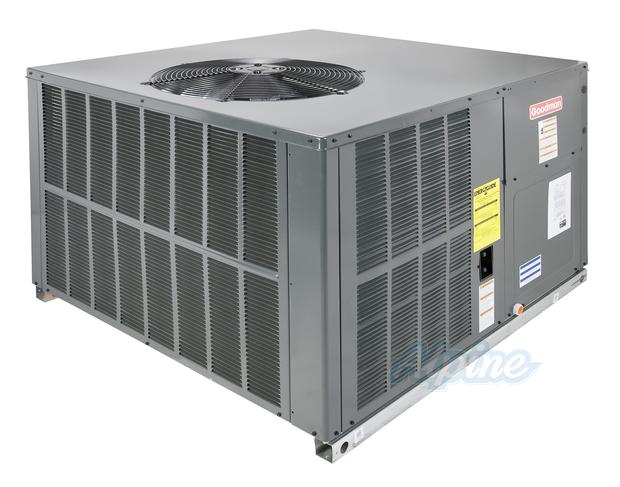

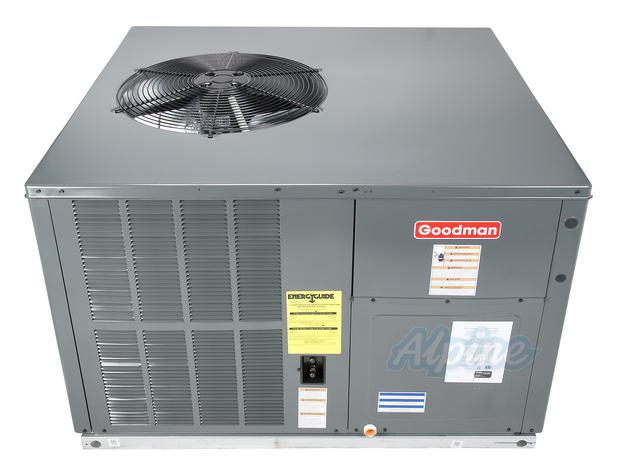

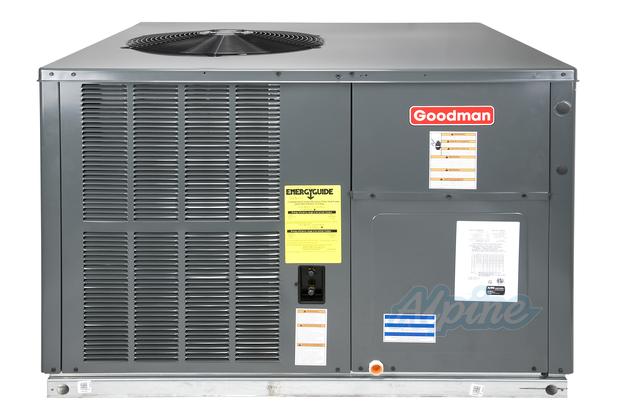

The Goodman® GPC13M 13 SEER Packaged Air Conditioner features energy-efficient cooling and can provide heat (with the addition of a heater coil) in one self-contained unit. The GPG13M is housed in a heavy-gauge, galvanized-steel cabinet protected by a high-quality, UV-resistant powder-paint finish. This unit allows for ground-level or rooftop applications, and is approved for manufactured or modular homes.
Standard Features
- Energy-efficient compressor with internal relief valve
- EEM blower motor; PSC blower motor on 3-ton units

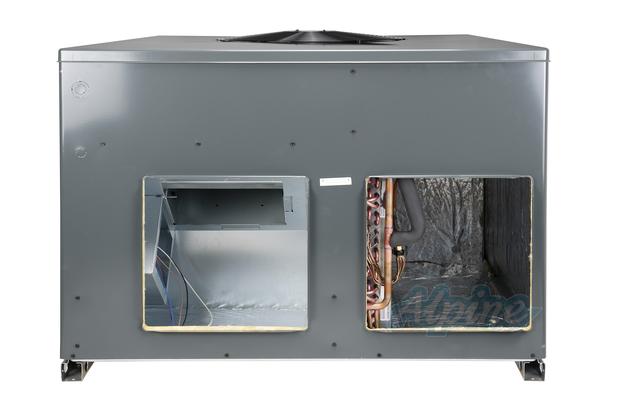

- Convertible airflow — horizontal or downflow

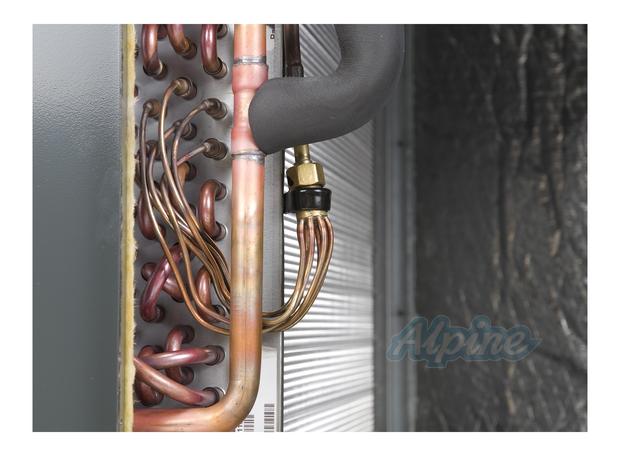

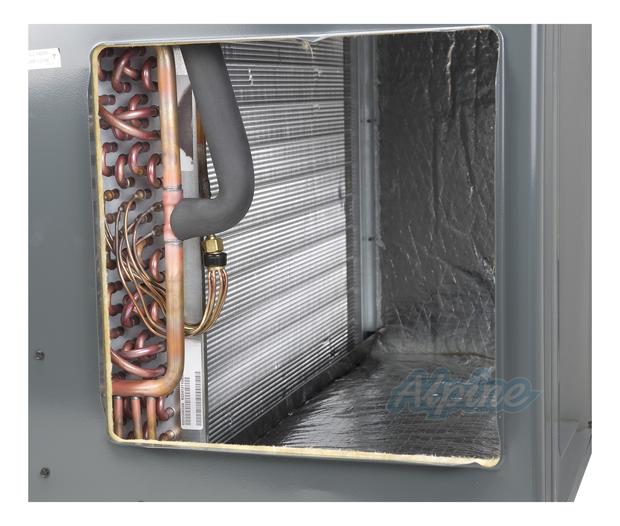

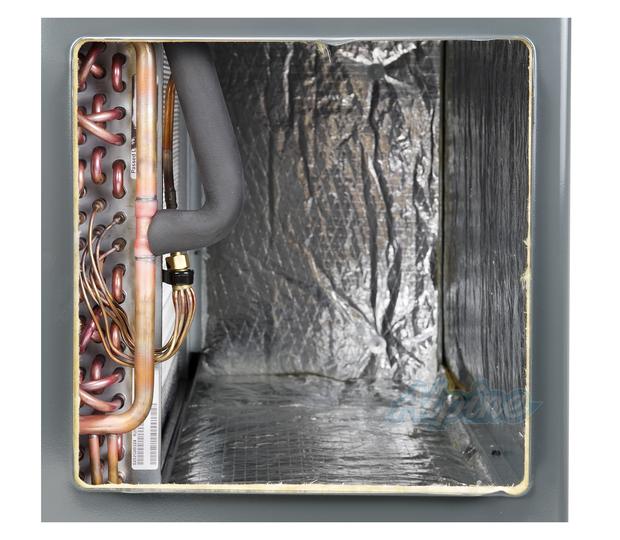

- Copper tube/aluminum fin coil
- Totally enclosed, permanently lubricated condenser fan motor
- Fully charged R-410A system
- Factory-installed liquid line filter dryer
- Electric heat kit available as a field-installed accessory
Cabinet Features
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish

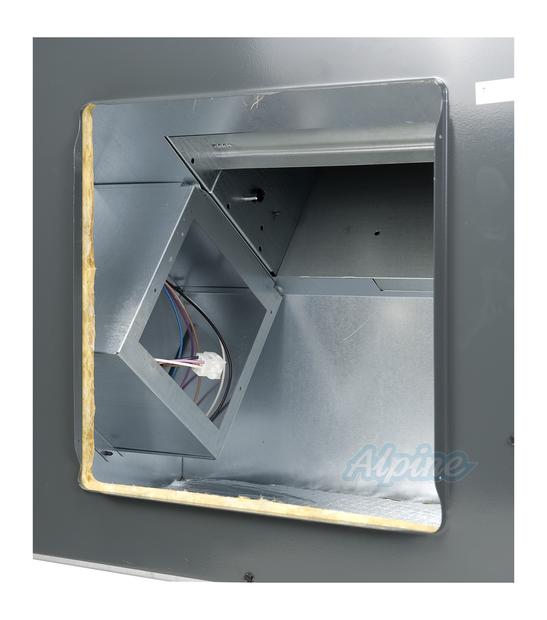

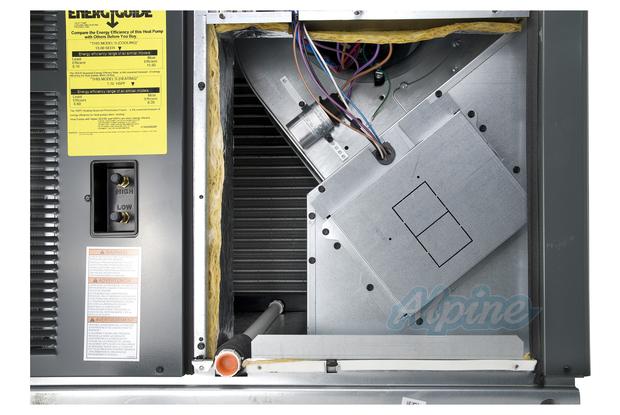

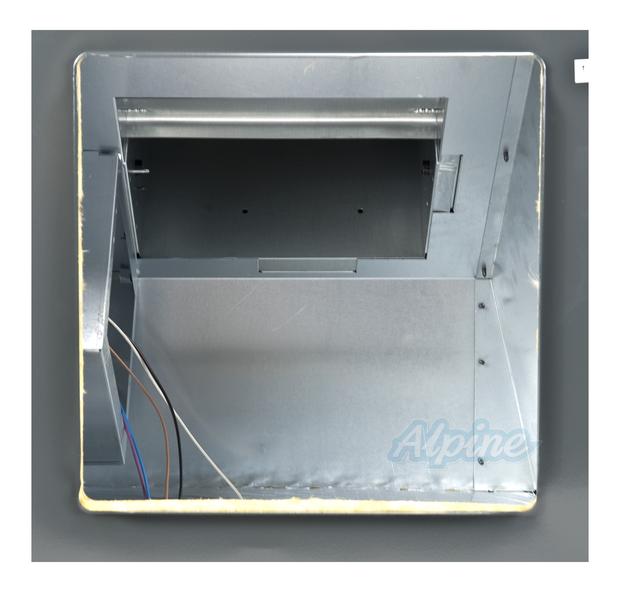

- Fully insulated blower compartment with convenient access panels
- Louvered condenser coil protection
- One footprint; two heights
Specs
System Information
Configuration
Downflow / Horizontal
Equipment Type
Package Unit
Refrigerant Compatibility
R-410A
Efficiency
SEER
13.0 SEER
Performance
Base Cooling Capacity (95F)
35000 BTU
Nominal CFM
1205
Electric Heat Capabilities (Optional)
10 / 15 / 5 / 8 Kilowatts
Compressor Type
Scroll
Cooling Tonnage
3 Tons
Noise Level
78 Decibels
Electrical Information
Frequency
60 Hz
Voltage Phase
1
Maximum Overcurrent Protection (Breaker)
40 Amps
Voltage
208 / 230 Volts
Product Dimensions
Width
47 Inches
Depth
51 Inches
Height
34 3/4 Inches
Pad Size
50x53 Inches
Product Weight
410 lbs
Warranty
Compressor Warranty
10 Years With Online Registration
Parts Warranty
10 Years
Accessories
Enjoy free shipping on any accessories purchased with the Goodman GPC1336M41.
Accessories for Models GPD & GPG Self-Contained Furnaces w/AC
Goodman 20464501PDGK
Horizontal Return / Supply Duct Cover Kit for Medium Chassis GPC, GPH and GPG Self-Contained Units (for Downflow Applications)
$1999
McDaniel Metals D14CRBPGCHMA
Roof Curb (Flat roof applications) for All Goodman GPG Chassis Sizes
$41999
McDaniel Metals SQRPG101/102
Square to Oval Adapters (16 Inch Dia) - Downflow - Small / Medium Chassis Goodman Self-Contained Units
$16999
McDaniel Metals SQRPGH101/102
Square to Round Adapters (16 Inch Dia) - Horizontal - Small / Medium Chassis Goodman Self-Contained Units
$16999
Electrical Disconnect
Alpine AG-DCT
Safety Non-Fused Electrical Disconnect
$2199
Electrical Whips
Alpine AG-WHP10
1/2 x 48 Inches, #10 Gauge Electrical Whip
$2499
Heater Coils
Alpine AH-HKP-15C
15 Kilowatt Heater Coil (51,150 BTUs of Heat), For Goodman Package Units
$22999
Alpine AH-HKR-05C
5 Kilowatt Heater Coil (16,200 BTUs of Heat), For Goodman Package Units and Modular Blowers
$9999
Alpine AH-HKR-08C
7 Kilowatt Heater Coil (23,800 BTUs of Heat), For Goodman Package Units and Modular Blowers
$12999
Outdoor Pads & Brackets
Alpine AG-PAD50X53
50" x 53" x 3" Condensing Unit Pad
$23999
Thermostats
Honeywell TH2110DV1008
Pro 2000 Universal Programmable Thermostat - One Stage Heat One Stage Cool
$5499
Honeywell TH6110D1021
FocusPro 6000 Universal Programmable Thermostat - One Stage Heat One Stage Cool (Large Screen)
$12499
Honeywell TH8110R1008
VisionPro 8000 Programmable Touchscreen Thermostat, One Stage Heat One Stage Cool
$21999
Honeywell TH4110U2005
T4 Pro Programmable Thermostat with stages up to 1 Heat/1 Cool Conventional Systems
$6999
Documents
Goodman HKR Supplemental Install Instructions(PDF, 103 KB)- GPC13M Brochure(PDF, 358 KB)
- Goodman GSX14 & GSZ14 Warranty(PDF, 357 KB)
- Goodman GPC13M R-410A Spec Sheet(PDF, 836 KB)
- Goodman GPC/GPH13M R-410A Installation Instructions(PDF, 531 KB)
- Goodman GPC13M R-410A Technical Information(PDF, 637 KB)
- Wire Gauge Sizes(PDF, 40.9 KB)
