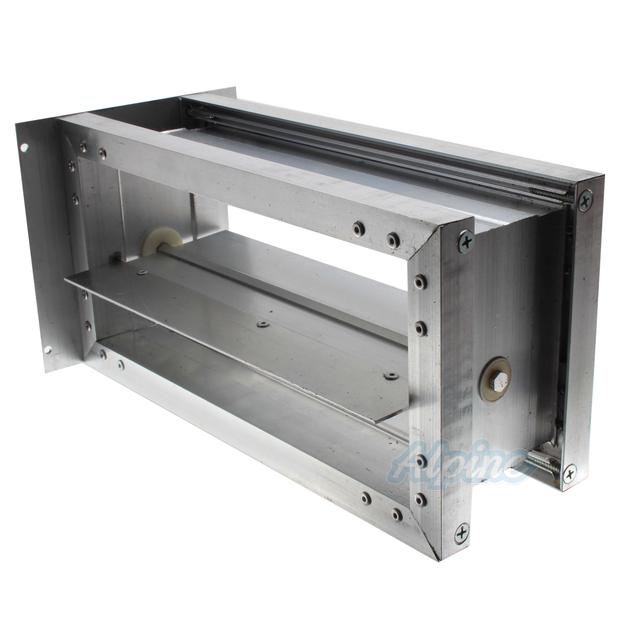

8" x 6" Side Mount Automatic Zone Control Damper

8" x 6" Side Mount Automatic Zone Control Damper

Model: Honeywell ZD8X6

Actual product may vary from photos.

Model: Honeywell ZD8X6

$16799
Or as low as

Volume Discounts
Qty:

Only 1 left in stock

Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

The ZD is a power close, and spring open damper. It has a 24-volt, spring-return, power-closed damper motor used to control circulating air in heating, cooling and ventilating systems. It is used when a normally-open damper is required. The ZD is typically used with the TotalZone® Systems and other electronic mini-zone damper systems.

Features

  • Reliable spring-return motor.
  • Fail-safe, normally-open operation.
  • Strong 24-volt spring-return motor
  • Quiet operation with fewer blades.
  • Simple, easy-to-wire, two-wire operation
  • Parallel blade design for low leakage performance.
  • Easy slip-in design.
  • Solid construction using extruded aluminum frame and blades.
  • Can be mounted on the side or bottom of the duct, as the application requires.
  • Mechanical visual position indicator for damper status.

Ordering Instructions: Order ZD (dimension 1) X (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10X8 is a 10" x 8" damper with the motor on the 8" side; but a ZD8X10 is a 8" x 10" damper that has the motor on the 10" side.

Specs
System Information
Wires to Motor
2
Shape
Rectangular
Motor Mount
Side
view information
Product Type
Dampers
Electrical Information
view information
Frequency
60 Hz
Amps
0.32
view information
Voltage
24 Volts
Important Measurements
view information
Damper Size
8 x 6 inches
Accessories
Tools
DiversiTech 640-UL25
DiversiTech 640-UL25
DiversiTech 640-UL25 Foil Tape
$3499
