SND 12,000 BTU 25.4 SEER2 Single Zone Ductless Mini Split ODU & New 12,000 BTU Single Zone Wall Mounted Ductless Air Handler
SND 12,000 BTU 25.4 SEER2 Single Zone Ductless Mini Split ODU & New 12,000 BTU Single Zone Wall Mounted Ductless Air Handler
Rated 4.8 out of 5. (137 Reviews)
Model: Blueridge BXS5A12UC0-BXAFA12WM0 SND-KIT 2
Rated 4.8 out of 5. (137 Reviews)
Model: Blueridge BXS5A12UC0-BXAFA12WM0 SND-KIT 2
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$1,440.00
Or as low as
Qty:
Only 1 left in stock
In Stock and Ready to Ship
Includes
Services
Save money with this Blueridge Scratch 'N Dent Kit! This bundle includes a Blueridge BXS5A12UC0 12,000 BTU 25.4 SEER2 Single Zone Ultra Heat Ductless Mini Split Outdoor Condenser, along with a Blueridge BXAFA12WM0 12,000 BTU Wall Mount Ductless Mini Split Indoor Air Handler, R-454B, 220V, XS5 Series, Ultra Heat, WiFi Ready (L01: 1/4 LL 3/8 SL). Because these items are functionally compatible we have greatly discounted this package, resulting in substantial SAVINGS for you!

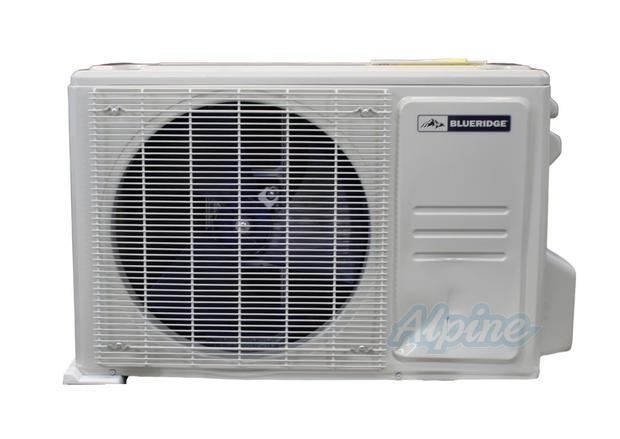

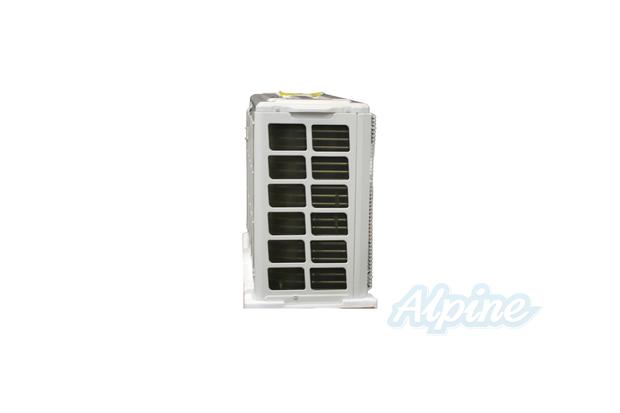

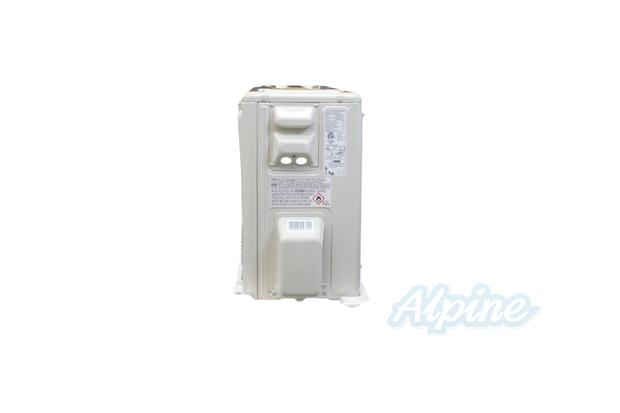

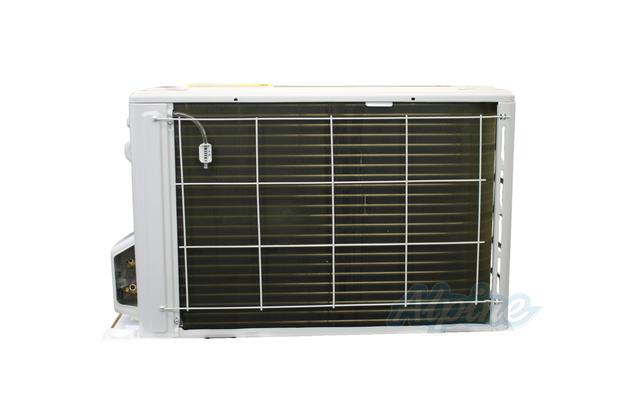

SND (BXS5A12UC0) 12,000 BTU 25.4 SEER2 Single Zone Ultra Heat Ductless Mini Split Outdoor Condenser

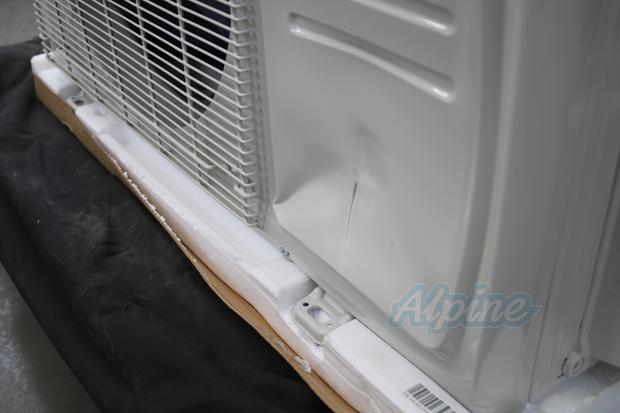

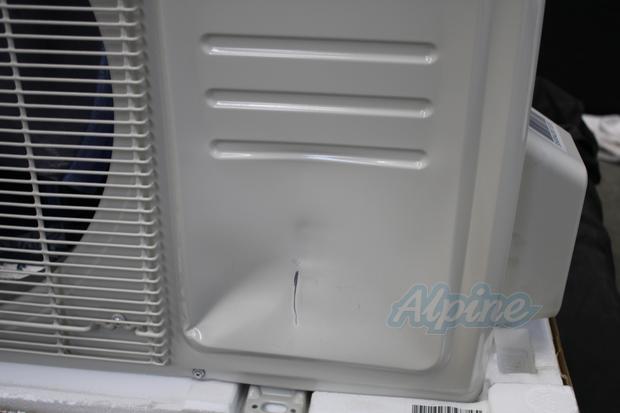

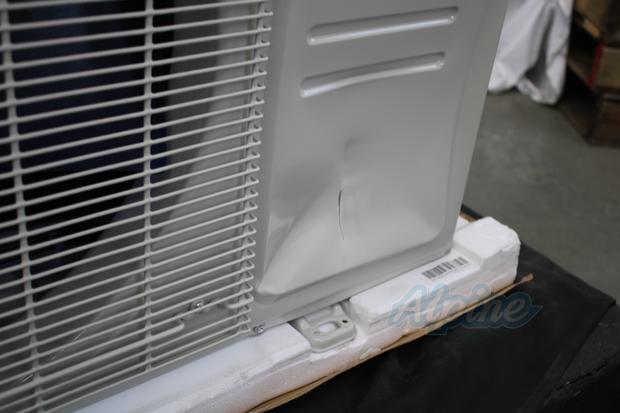

Fork dented into the front panel.
NEW (BXAFA12WM0) 12,000 BTU Wall Mount Ductless Mini Split Indoor Air Handler, R-454B, 220V, XS5 Series, Ultra Heat, WiFi Ready (L01: 1/4 LL 3/8 SL)
Brand New
Click the links below to check each component's specifications and documentation.
This system includes:
|
|
|
|
|
NEW BXAFA12WM0
|
|
|
System Information
Mini-Split System Type
Heating / Cooling
Single Zone Mini-Split Series
XS5: All Climate +
Indoor Air Handler Type(s)
Wall Mount
Zones
1
Product Type
Mini Split Only
Features
WIFI (2.4GHz)
Yes (With Adapter)
Efficiency
SEER
25.4 SEER
Refrigerant Readiness
Primary Refrigerant
R-410A
Factory Precharge
25 Feet
Performance
Tonnage
1 Ton(s)
High Output Cool
12000 BTU
High Output Heat
12000 BTU
Compressor Type
Inverter
Sound Rating, Indoor
23.5 / 33.5 / 38 Decibels
Sound Rating, Outdoor
56 Decibels
Ambient Temperature Range (Cooling)
-22 / 122 °F
Ambient Temperature Range (Heating)
-22 / 75 °F
Low Ambient Cooling
Yes
Lowest Ambient Temperature (Heating)
-22 °F
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Line Set Information
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
1/2 Inches
Line Set Connection Type
Flare
Maximum Line Length per Zone
82.02 Feet
Maximum Height Difference
32.81 Feet
Product Dimensions
Indoor Air Handler Size, W x H x D
31.30 x 11.61 x 8.86 Inches
Outdoor Condenser Size, W x H x D
31.5 x 21.81 x 13.11 Inches
Footprint Mounting Holes (W x D)
20.24 x 13.39 Inches
Outdoor Condenser Weight
88.2 Lbs
Indoor Air Handler Weight
22.93 Lbs
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
AHRI#
No Certification
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
No
