SND 18,000 BTU 21.4 SEER2 Single Zone Ductless Mini Split ODU & New 18,000 BTU Single Zone Wall Mounted Ductless Air Handler

Name: SND 18,000 BTU 21.4 SEER2 Single Zone Ductless Mini Split ODU & New 18,000 BTU Single Zone Wall Mounted Ductless Air Handler
Brand: Blueridge
SKU: 453139695
Price: 1710 USD
Availability: InStock
Rating: 4.8 (137 reviews)

(137 Reviews)

Model: Blueridge BXS5A18UC0-BXAFA18WM0 SND-KIT

(137 Reviews)

Model: Blueridge BXS5A18UC0-BXAFA18WM0 SND-KIT

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

Or as low as

Qty:

Only 1 left in stock

In Stock and Ready to Ship

Includes

Services

highlights
specs
accessories
reviews
free expert help
Back To Top

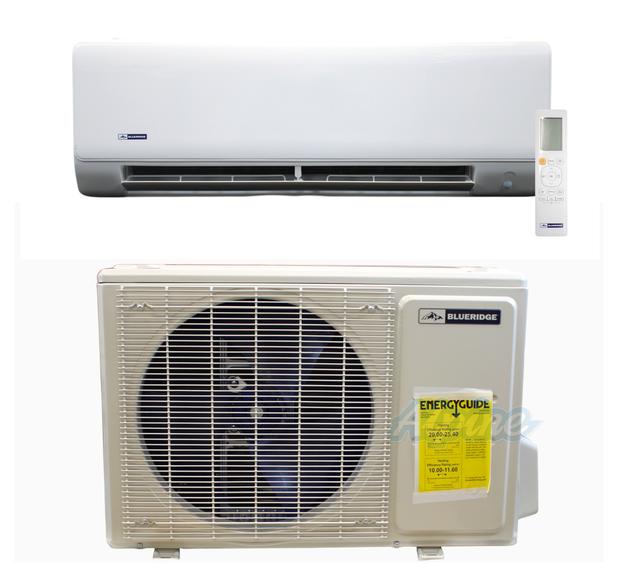

Save money with this Blueridge Scratch 'N Dent Kit! This bundle includes a Blueridge BXS5A18UC0 18,000 BTU 21.4 SEER2 Single Zone Ultra Heat Ductless Mini Split Outdoor Condenser, along with a Blueridge BXAFA18WM0 18,000 BTU Wall Mount Ductless Mini Split Indoor Air Handler, R-454B, 220V, XS5 Series, Ultra Heat, WiFi Ready (L02: 1/4 LL 1/2 SL). Because these items are functionally compatible we have greatly discounted this package, resulting in substantial SAVINGS for you!

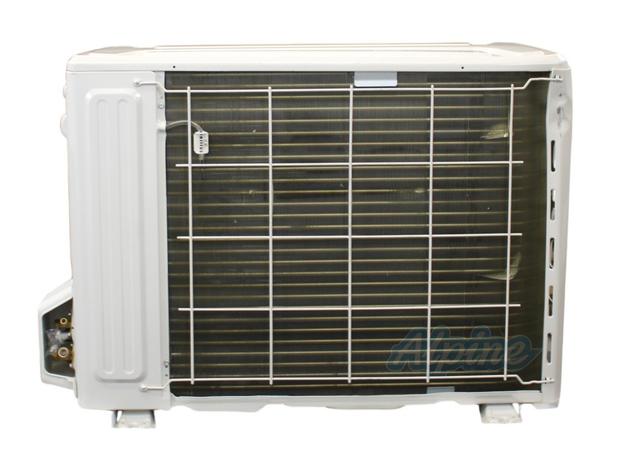

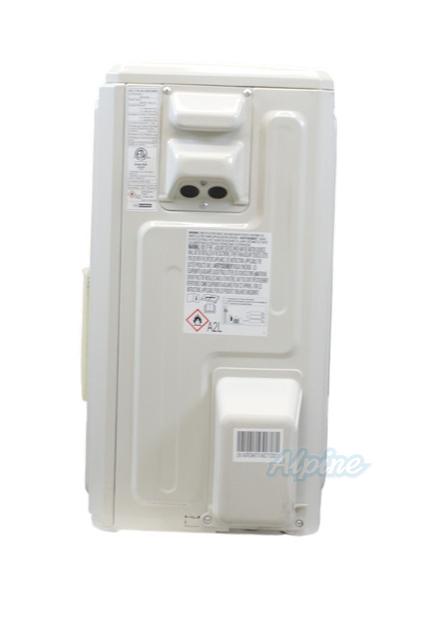

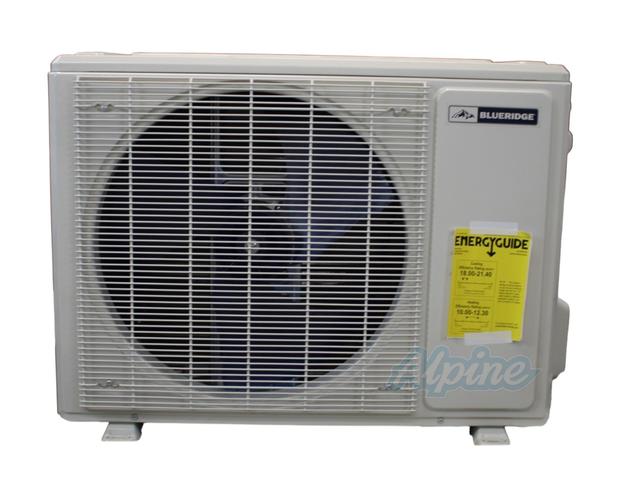

SND (BXS5A18UC0) 18,000 BTU 21.4 SEER2 Single Zone Ultra Heat Ductless Mini Split Outdoor Condenser

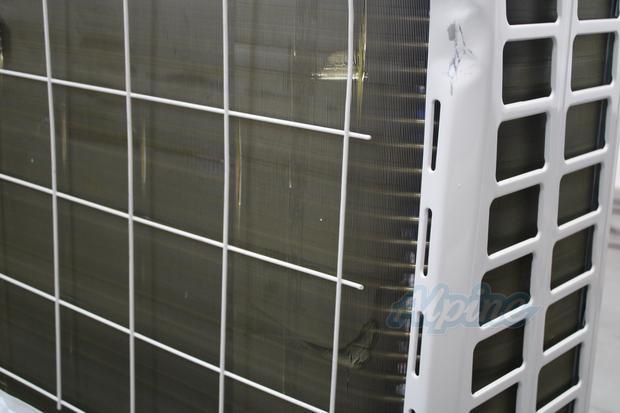

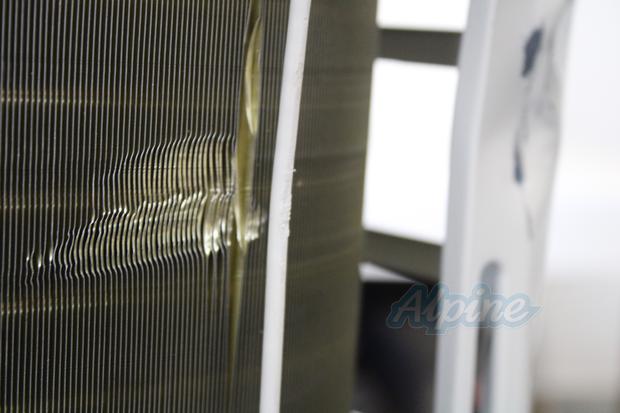

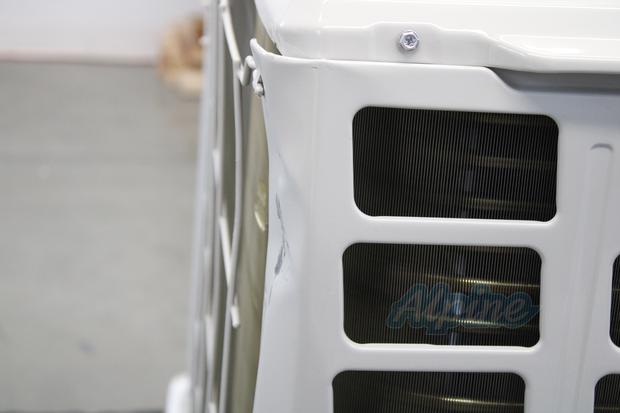

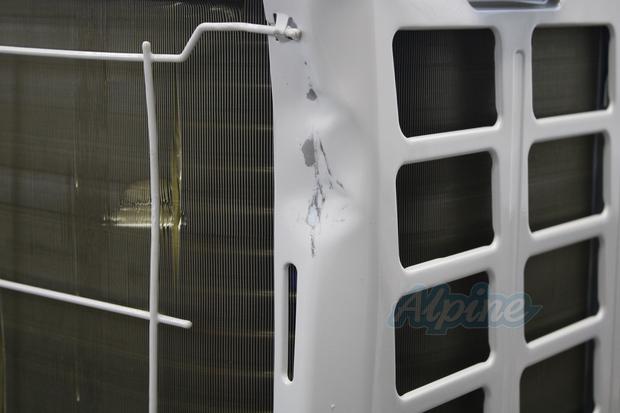

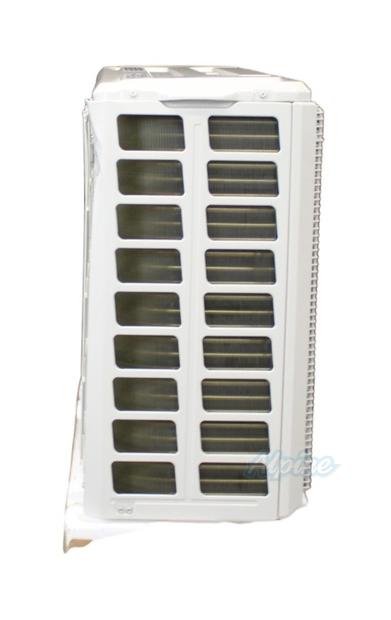

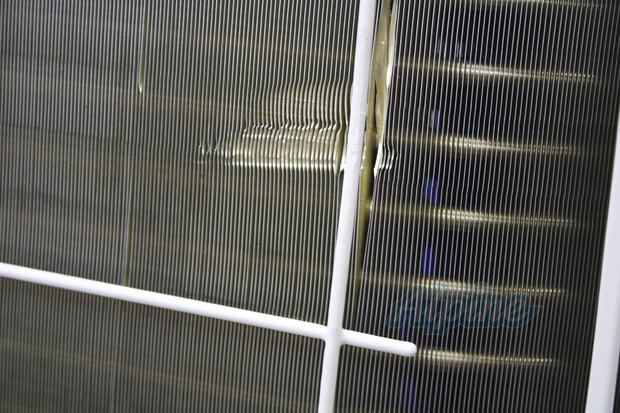

has some cosmetic damage incurred during shipping. Big dent in the left supporter, nicks and scrapes on the water collector, top cover and the right clapboard.

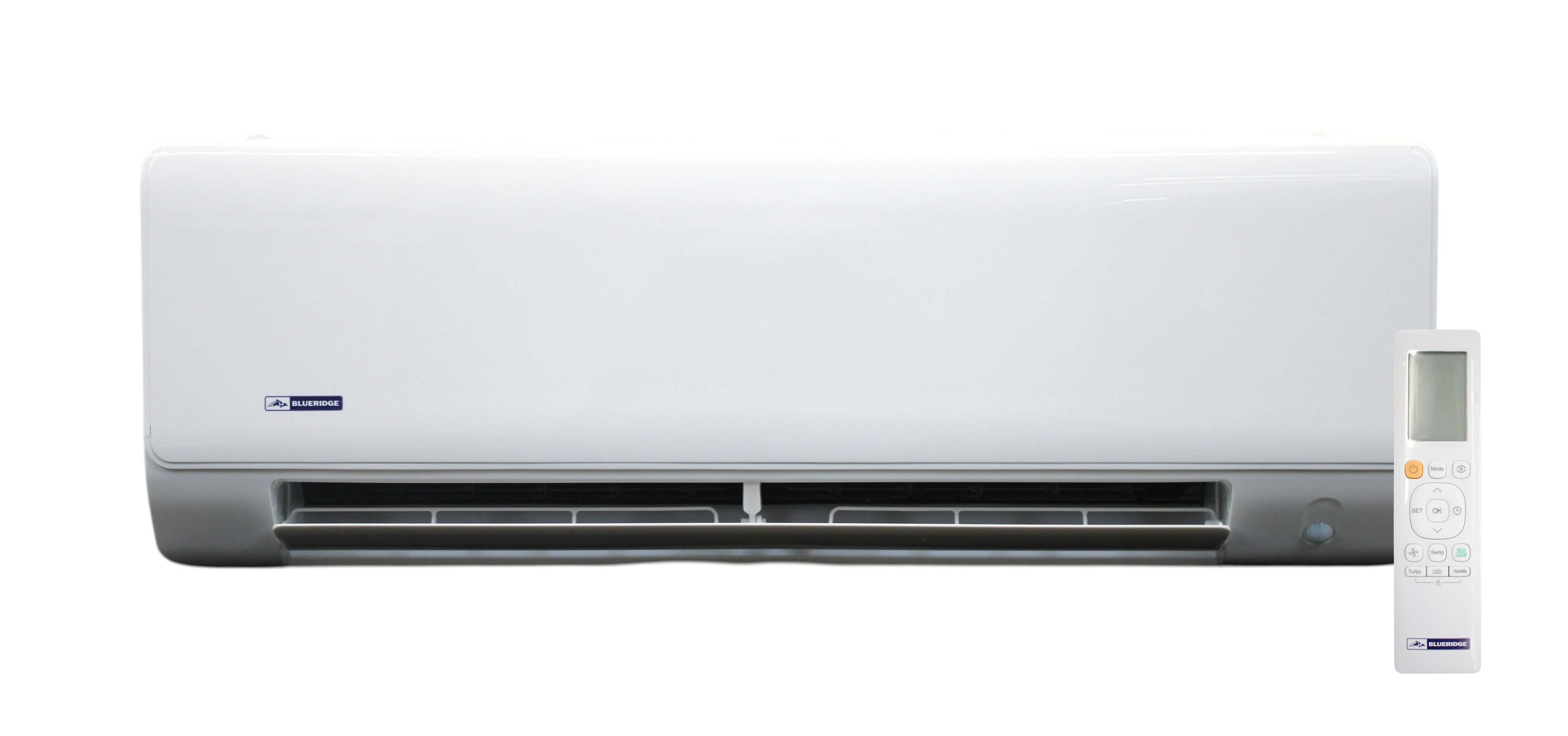

NEW (BXAFA18WM0) 18,000 BTU Wall Mount Ductless Mini Split Indoor Air Handler, R-454B, 220V, XS5 Series, Ultra Heat, WiFi Ready (L02: 1/4 LL 1/2 SL)

Brand New

Click the links below to check each component's specifications and documentation.

This system includes:

SND BXS5A18UC0

18,000 BTU 21.4 SEER2 Single Zone Ultra Heat Ductless Mini Split Outdoor Condenser

NEW BXAFA18WM0

18,000 BTU Wall Mount Ductless Mini Split Indoor Air Handler, R-454B, 220V, XS5 Series, Ultra Heat, WiFi Ready (L02: 1/4 LL 1/2 SL)

System Information

Mini-Split System Type

Heating / Cooling

Single Zone Mini-Split Series

XS5: All Climate +

Indoor Air Handler Type(s)

Wall Mount

Zones

Product Type

Mini Split Only

Features

WIFI (2.4GHz)

Yes (With Adapter)

Efficiency

SEER

21.4 SEER

Refrigerant Readiness

Primary Refrigerant

R-410A

Factory Precharge

25 Feet

Performance

Tonnage

1 Ton(s)

High Output Cool

12000 BTU

High Output Heat

18000 BTU

Compressor Type

Inverter

Sound Rating, Indoor

23.5 / 33.5 / 38 Decibels

Sound Rating, Outdoor

56 Decibels

Ambient Temperature Range (Cooling)

-22 / 122 °F

Ambient Temperature Range (Heating)

-22 / 75 °F

Low Ambient Cooling

Yes

Lowest Ambient Temperature (Heating)

-22 °F

Electrical Information

Voltage

208 - 230 Volts

Frequency

60 Hz

Voltage Phase

Line Set Information

Liquid Line Size (OD)

1/4 Inches

Suction Line Size (OD)

1/2 Inches

Line Set Connection Type

Flare

Maximum Line Length per Zone

82.02 Feet

Maximum Height Difference

32.81 Feet

Product Dimensions

Indoor Air Handler Size, W x H x D

31.30 x 11.61 x 8.86 Inches

Outdoor Condenser Size, W x H x D

31.5 x 21.81 x 13.11 Inches

Footprint Mounting Holes (W x D)

20.24 x 13.39 Inches

Outdoor Condenser Weight

88.2 Lbs

Indoor Air Handler Weight

22.93 Lbs

Warranty

Parts Warranty

5 Years

Compressor Warranty

7 Years

Certifications

AHRI#

No Certification

Approved for US Region(s)

North / Southeast / Southwest

ENERGY STAR® Certified
