3 Ton Cooling / 80,000 BTU Heating, (Two-Stage) R-410A Refrigerant, 16 SEER

3 Ton Cooling / 80,000 BTU Heating, (Two-Stage) R-410A Refrigerant, 16 SEER

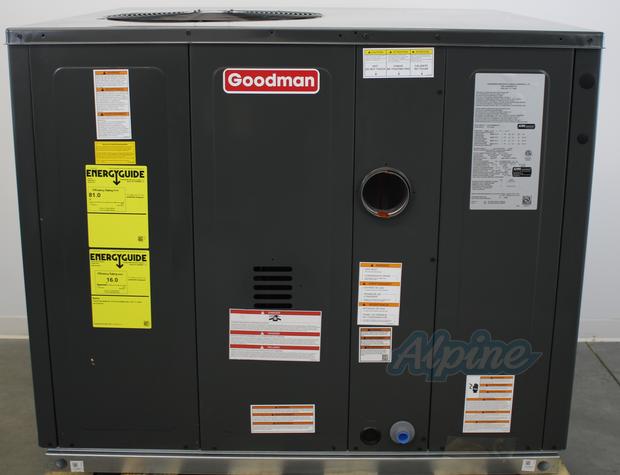

Model: Goodman GPG1636080M41 (Item No. 704219)

Actual product may vary from photos.

Model: Goodman GPG1636080M41 (Item No. 704219)

Keeps your home comfortable at any time of the year

Engineered for use in multiple configurations

Built for simple installation and easy maintenance

Peace of mind with 10 year warranty (with registration)

$4,340.00
Or as low as

You save: 35%
Compare to: $6,651.00
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights
view information

To use LP fuel, this unit requires an LP Conversion Kit. See Accessories

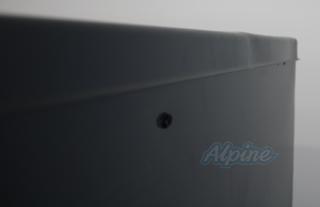

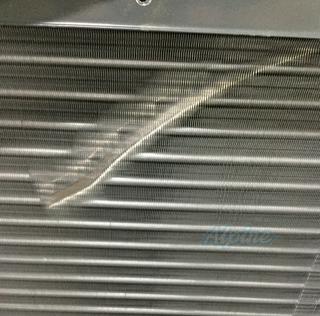

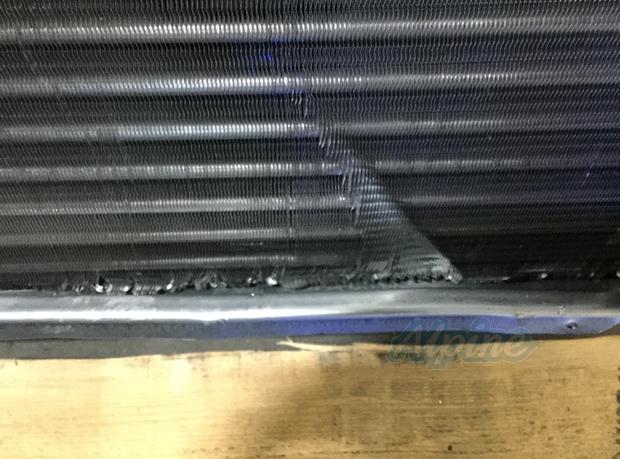

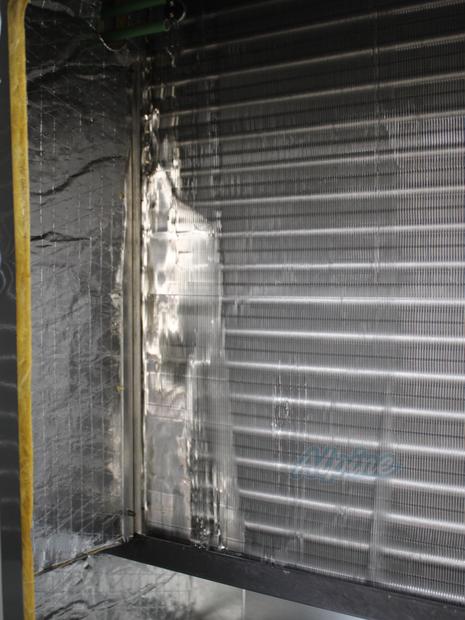

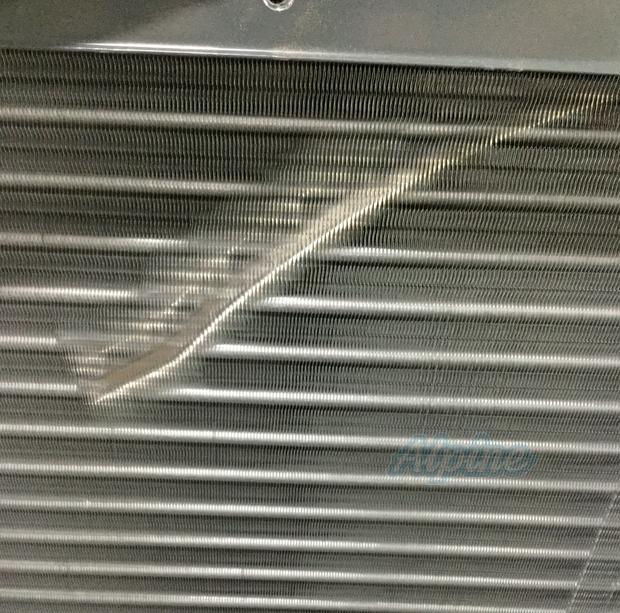

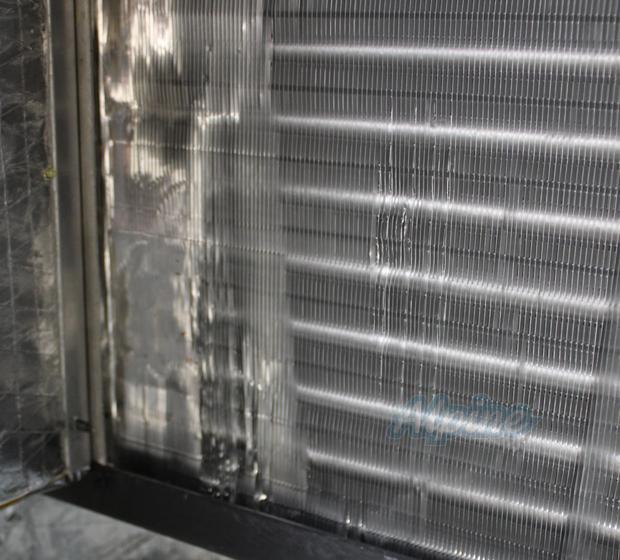

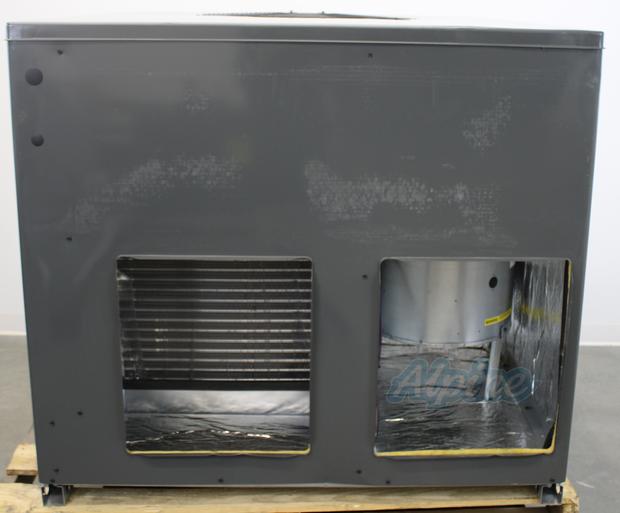

This Goodman 3 Ton 16 SEER GPG1636080M41 (Two-Stage) Furnace AC Package Unit has some cosmetic damage incurred during shipping. This unit is damaged on the bottom left side, it has minor coil damage in several spots. For detailed photos please click 'See Additional Images' above. This Goodman 3 Ton 16 SEER GPG1636080M41 (Two-Stage) Furnace AC Package Unit meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

The Goodman® GPG16 SEER (Two-stage) Packaged Gas/Electric Unit features high-efficiency performance and reasonable operating costs. This 16 SEER unit allows for a ground-level or rooftop mount and horizontal or down-flow applications. The GPG16 is housed in a heavy-gauge, zinc-coated steel cabinet that offers a high-quality, UV-resistant powder-paint finish.  Heating operates out of the box on natural gas, and can be easily converted to operate on propane with optional LP conversion kit (see Accessories tab above).

This package unit can be easily installed in manufactured or modular homes which use smaller (high static pressure) duct work. The package unit can also be easily converted to accommodate a plenum for normal or low-static applications. The Goodman package unit series are self-contained so the only connections needed for installation are the supply and return ducts, the gas line, low voltage wiring, high voltage power, and the drain connection. The units are ETL listed and ARI certified.

Please read this Important Notice.


Standard Features

  • Two-stage high-efficiency compressor
  • Durable, corrosion-resistant T-140 aluminized steel tubular heat exchanger
  • Multi-speed ECM indoor blower motor
  • Copper tube/aluminum fin condenser coil
  • All-aluminum evaporator coil
  • Direct spark ignition system includes a microprocessor-based control for the entire ignition sequence
  • Power-assisted combustion
  • Loss-of-charge protection & high-pressure switch
  • Two-stage gas valve; natural gas with easy conversion to propane
  • All blower operation and all safety circuits complete with self-diagnostics
  • All models comply with California Low NOx emission standards



Cabinet Features

  • Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant powder-paint finish
  • Horizontal or downflow application
  • Convenient access panels
  • One roof curb fits all units
  • Bottom, 2” high base rails for easier handling
  • All models fit a standard-size pick-up truck
  • When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds



Specs
System Information
view information
Base Altitude Range
0-2000 ft.
Fins per Inch
16
view information
Configuration
Downflow / Horizontal
view information
Fuel Type
LP Capable (Kit Required) / Natural Gas
Number of Rows
2
Equipment Type
Packaged Unit
view information
Refrigerant
R-410A
Features
view information
High Pressure Safety Switch
Yes
Efficiency
view information
Energy Efficiency Ratio
12.0 EER
view information
SEER
16.0 SEER
view information
Efficiency (% AFUE)
81 %
Performance
view information
Maximum Input BTU
80000 BTU
view information
Total Cooling Capacity
3 Ton(s)
view information
Maximum Heating Capacity
62000 BTU
view information
Minimum Input BTU
60000 BTU
view information
Minimum Output BTU
47000 BTU
view information
Base Cooling Capacity
34200 BTU
view information
Nominal CFM
1200
view information
Blower Type
High Efficiency Multi-Speed
view information
Compressor Type
Scroll
view information
Noise Level
76 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Maximum Overcurrent Protection (Breaker)
35 Amps
view information
Voltage
208 / 230 Volts
Product Dimensions
view information
Width
47.000000000 Inches
view information
Depth
51.000000000 Inches
view information
Height
42 3/4 Inches
view information
Pad Size
50x53 Inches
Product Weight
470 lbs
Shipping Weight
480 lbs
Important Measurements
view information
Orifice Size
0.068 inches
view information
Supply Air Opening Size
side 16w x 18h bottom 22w x 11d Inches
view information
Return Air Opening Size
side 16w x 18h bottom 11w x 22d inches
Warranty
view information
Compressor Warranty
10 Years With Online Registration
view information
Heat Exchanger Warranty
20 Years With Online Registration
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
AHRI#
201324630
view information
California Approved Furnace
Yes
view information
Ultra-Low NOx
No
view information
Qualifies for Govt. Money
No
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
No
