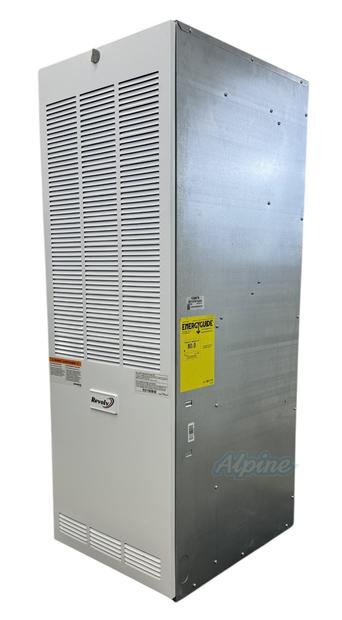

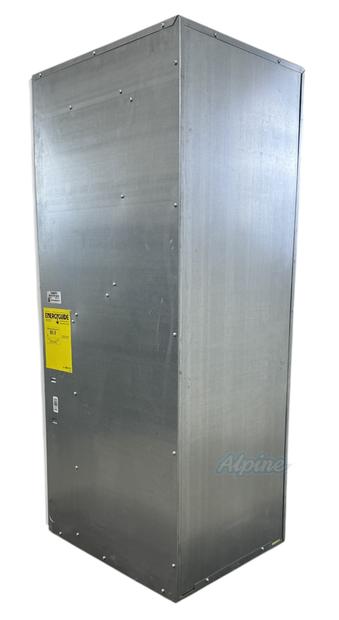

70,000 BTU Mobile Home Furnace, 80% Efficiency, Single Stage Burner, Downflow Application, w/o Coil Cabinet

70,000 BTU Mobile Home Furnace, 80% Efficiency, Single Stage Burner, Downflow Application, w/o Coil Cabinet

Model: Alpine AHMG1E-070A

  • Thumbnail of Alpine AHMG1E-070A 70,000 BTU Mobile Home Furnace, 80% Efficiency, Single Stage Burner, Downflow Application, w/o Coil Cabinet 57796
  • Thumbnail of Alpine AHMG1E-070A 70,000 BTU Mobile Home Furnace, 80% Efficiency, Single Stage Burner, Downflow Application, w/o Coil Cabinet 57797
  • Thumbnail of Alpine AHMG1E-070A 70,000 BTU Mobile Home Furnace, 80% Efficiency, Single Stage Burner, Downflow Application, w/o Coil Cabinet 57798
  • Thumbnail of Alpine AHMG1E-070A 70,000 BTU Mobile Home Furnace, 80% Efficiency, Single Stage Burner, Downflow Application, w/o Coil Cabinet 57799
  • Thumbnail of Alpine AHMG1E-070A 70,000 BTU Mobile Home Furnace, 80% Efficiency, Single Stage Burner, Downflow Application, w/o Coil Cabinet 57800
  • Thumbnail of Alpine AHMG1E-070A 70,000 BTU Mobile Home Furnace, 80% Efficiency, Single Stage Burner, Downflow Application, w/o Coil Cabinet 57801
  • + 8 More
    Thumbnail of Alpine AHMG1E-070A 70,000 BTU Mobile Home Furnace, 80% Efficiency, Single Stage Burner, Downflow Application, w/o Coil Cabinet 57802

Model: Alpine AHMG1E-070A

$1,57000
Or as low as

The Alpine AHMG1E-070A is no longer available for sale.
highlights

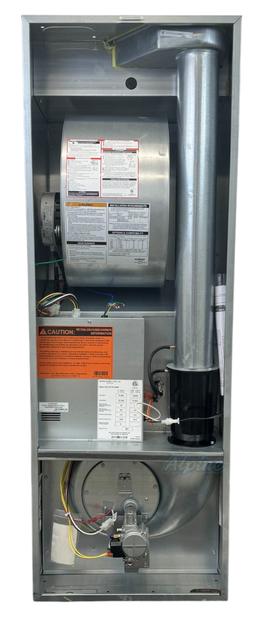

The MG1 Series furnace is designed for all sizes of manufactured and modular homes. These units incorporate high efficiency, reliability, and low maintenance. Units may be installed free standing in a utility room or enclosed in an alcove or closet. MG1 Series furnaces are A/C adaptable with an optional coil cavity box. Designed to run on natural gas with a liquid propane conversion kit included.



Features and Benefits:

Sealed Combustion System: Vents exhaust gas directly outdoors and draws in 100% outside air for the burner.

Easy Open Pawl Latch: Secures the door firmly for transit, yet allows easy removal for access.

Choice of Air Conditioning Options: From 2 to 4 tons A/C adaptable.

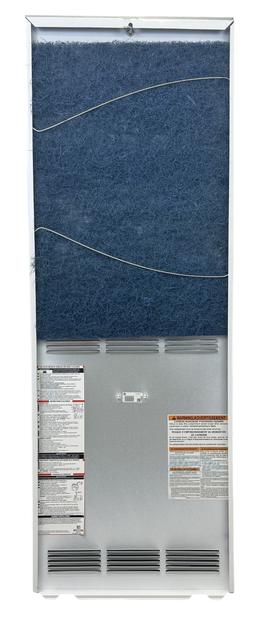

Large, Effective Air Filter: Room air is cleaner with this permanent washable filter.

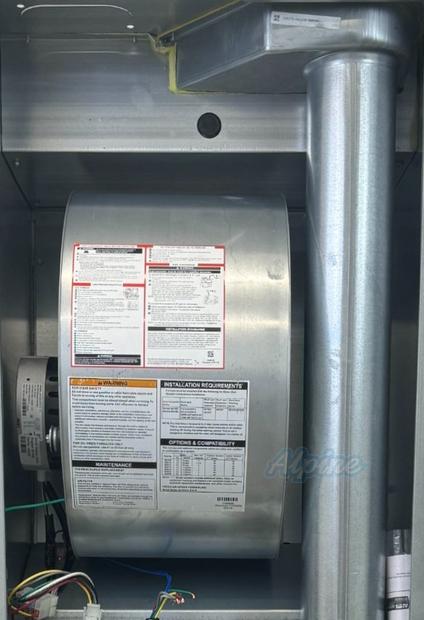

High Efficiency Drum Heat Exchanger: Delivers optimum heat transfer with low air resistance.

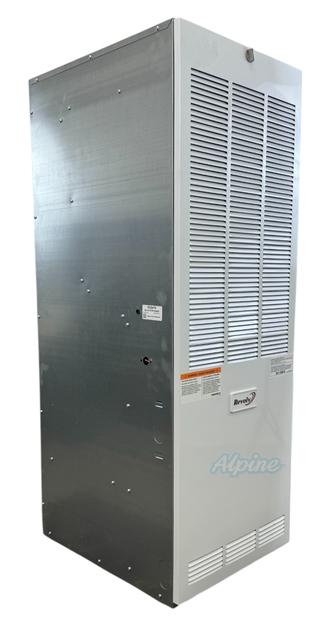

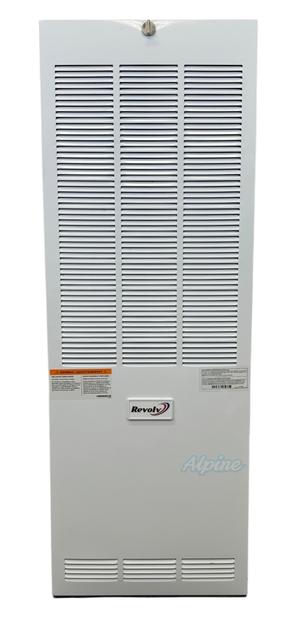

Appliance Quality Door: Protects against rust and other corrosion. Baked enamel finish allows for easy cleaning.

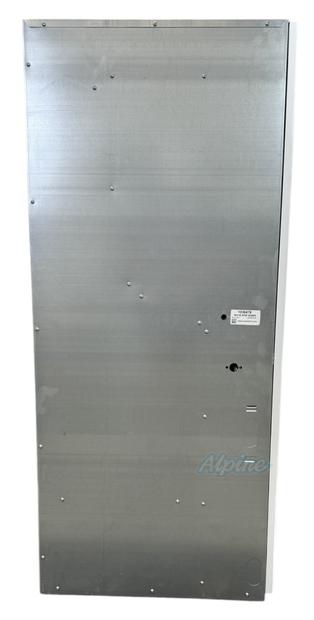

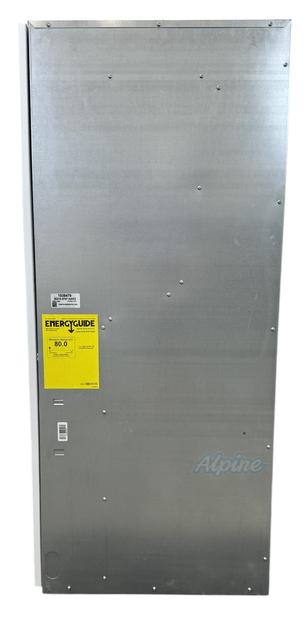

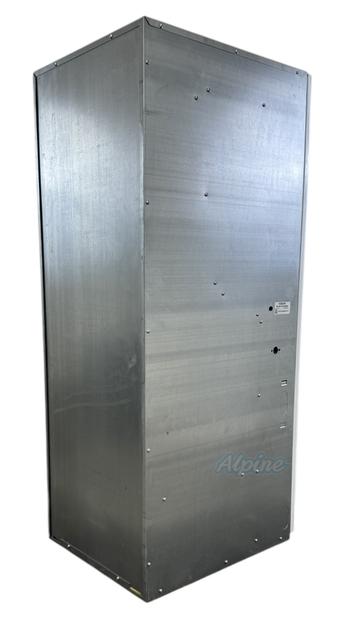

Fully Insulated Cabinet: Insures minimized heat loss and quiet operation.

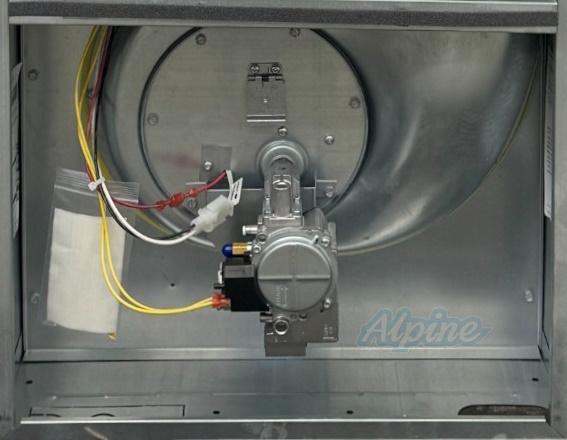

Reliable Burner: With uniform flame pattern extends life of heat exchanger.



Warranty:

10 Years Heat Exchanger / 2 Years Parts

Specs
System Information
Configuration
Downflow
Mobile Home Product Type
NG / LP
Fuel Type
Liquid Propane / Natural Gas
Base Altitude Range
0-2000 ft.
Product Type
Mobile Home Gas Furnace
Efficiency
Efficiency (% AFUE)
80 %
Refrigerant Readiness
Primary Refrigerant
R-410A
Secondary Refrigerant
R-22 / R-32 / R-454B
Refrigerant Family Support
R-22 / R-32 / R-454B
Mobile Home Compatible
Yes
RDS (Refrigerant Detection System) On-Board
No
Performance
Maximum Heat Input
70000 BTU
High Output Heat
57000 BTU
Stages of Heat
One
Blower Cooling Capacity
1.5 / 2 / 2.5 / 3 Tons
Blower Type
High Efficiency Multi-Speed
Maximum CFM
1452 @ 0.5
Electrical Information
Voltage
120 Volts
Frequency
60 Hz
Voltage Phase
1
Maximum Fuse/Breaker
15 Amps
Product Dimensions
Width
20 Inches
Depth
23 3/4 Inches
Height
56 Inches
Product Weight
157 lbs
Shipping Weight
157 lbs
Compatibility
Multi-Stage Compressor Compatible
No
Cross-Brand Compatibility: R-410A Air Conditioner
Yes
Cross-Brand Compatibility: R-32 Air Conditioner
Yes
Cross-Brand Compatibility: R-454B Air Conditioner
Yes
Cross-Brand Compatibility: R-410A Heat Pump
Yes
Cross-Brand Compatibility: R-32 Heat Pump
Yes
Cross-Brand Compatibility: R-454B Heat Pump
Yes
Cross-Brand Compatibility: R-410A Evaporator Coil
Yes
Cross-Brand Compatibility: R-32 Evaporator Coil
Yes
Cross-Brand Compatibility: R-454B Evaporator Coil
Yes
Warranty
Parts Warranty
2 Years
Heat Exchanger Warranty
10 Years
Certifications
California Approved Furnace
No
Emission Standard
Standard
Ultra-Low NOx
No
Accessories

Enjoy free shipping on any accessories purchased with the Alpine AHMG1E-070A.
