The Alpine AHMG2R-B Series is a 95% AFUE downflow gas furnace built for manufactured and modular housing. This model delivers 45,000 BTU of heating input with a front return air configuration. It may be installed free standing in a utility room or enclosed in an alcove or closet, and is CSA design certified for use in the United States and Canada.

The MG2R-B is a condensing, direct-vent furnace and requires a concentric vent termination kit, sold separately. A coil box is not included; add the matching coil box to make the unit air conditioning ready.

Features:

• 95% AFUE efficiency: Tubular heavy-gauge aluminized steel primary heat exchanger paired with a stainless steel secondary heat exchanger for high efficiency and long service life.

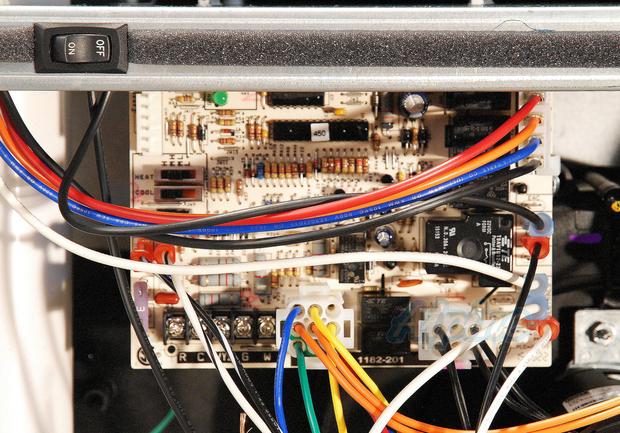

• Multi-speed ECM blower: Covers a wide range of cooling capacities. Speed is selected with switches on the control board. 40VA transformer included.
• Quiet, clean operation: In-shot burner design, inducer placement and cabinet insulation keep operating sound down.
• Silicon nitride hot surface ignitor: Proven ignition technology chosen for extended ignitor life.
• Managed blower timing: Fixed 30-second blower on-delay for warm air at start-up, selectable off-delay of 60, 90, 120 or 180 seconds, and a fixed 60-second cooling blower-off delay.
• 30-second post purge: Clears the heat exchanger after each cycle to extend its life.
• LP convertible: Converts to liquid propane with a burner orifice change and gas valve regulator adjustment. Orifices are included with the unit.
• Diagnostic indicator lights: A dedicated light reports flame signal strength and two lights combine to show fault codes directly, with no flash counting.
• Electrical protection: 3 amp fuse guards the transformer and control board against low voltage shorts. Low voltage terminal board simplifies field wiring.
• Easy open pawl latch: Holds the door firmly during transit yet releases easily for service access.
• Appliance quality door: Baked enamel finish resists rust and corrosion and wipes clean.
• Fully insulated cabinet: Minimizes heat loss and keeps operation quiet.
• Color coded wire harness: Quick-connect fittings throughout for faster service and component replacement.
• 100% fired and tested: Every unit and every mechanical and electrical component is tested on the manufacturing line.

Warranty:

10 years heat exchanger / 2 years parts
