Remote Wall Thermostat Installation Kit for Rinnai EX-DT and EX-CT Direct Vent Wall Furnaces
Remote Wall Thermostat Installation Kit for Rinnai EX-DT and EX-CT Direct Vent Wall Furnaces
Model: Rinnai 204000045
Model: Rinnai 204000045

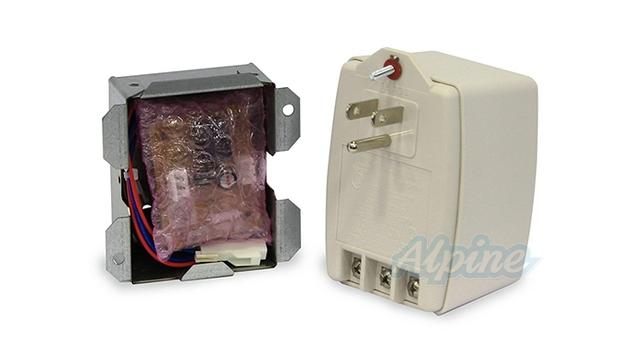

The Rinnai 204000045 remote thermostat installation kit lets a Rinnai direct vent wall furnace be controlled by a field-supplied wall thermostat, including Wi-Fi enabled smart thermostats. The kit mounts a sub control board and transformer on the furnace; once it is wired, the furnace is switched to Remote Thermostat mode from its control panel, as described in the furnace manual.
Compatible with
- EX08DTN / EX08DTP
- EX11DTN / EX11DTP
- EX17DTN / EX17DTP
- EX22DTN / EX22DTP
- EX22DTWN / EX22DTWP (White)
- EX38DTN / EX38DTP
- EX38DTWN / EX38DTWP (White)
Also fits the earlier EX08CT, EX11CT, EX17CT, EX22CT and EX38CT models. For U.S. installations; Canadian installations use kit 204000048.
Field supplied: wall thermostat, thermostat wire, wire nuts.
Rinnai 204000045(PDF, 1.26 MB)- Rinnai 204000045 Installation Instructions(PDF, 1007 KB)
- Rinnai EX38DT Installation and Operation Manual(PDF, 8.65 MB)
