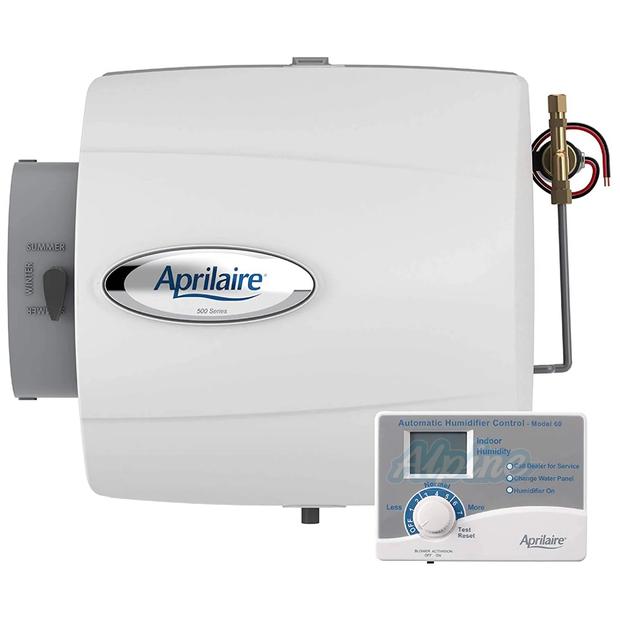

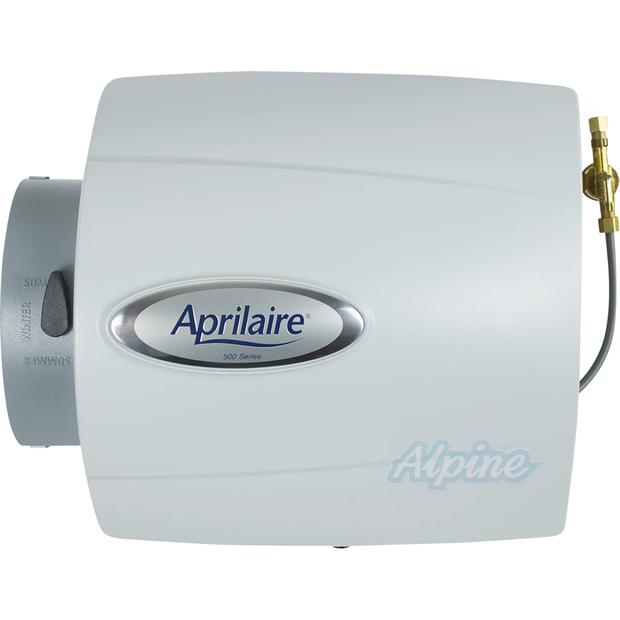

24v Bypass Model w/ Automatic Digital Control & Humidity Readout

24v Bypass Model w/ Automatic Digital Control & Humidity Readout

Model: Aprilaire 500

  • + 5 More
Mouse over or pinch image to zoom in.
Actual product may vary from photos.

Model: Aprilaire 500

$160.99
You save: 24%
Compare to: $211.99
Or as low as
Volume Discounts
Qty:
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
highlights

The Aprilaire Automatic Humidifier Model 500 is the economy version of the 600 intended for use in smaller homes. It takes humidifier innovation to the next level and performs as good as it looks! It offers all of the performance benefits of Aprilaire's more advanced humidifiers including Automatic Digital Control which automatically adjusts humidity based on outside temperature. The Aprilaire 500 is easier than ever to install because it includes a built-in bypass damper, which means fewer parts to install. Plus, the damper is conveniently labeled for summer and winter settings, allowing you to set it for the entire season with no guesswork involved. This humidifier can be installed on the supply or return air ductwork. It is also left or right side reversible. Includes automatic digital control humidistat, sensing bulb, water pad, 110v to 24v transformer and manufacturer's special instructional DVD.

Automatic Digital Control Features

  • Shows that the humidifier is operating
  • Allows you to check relative humidity level
  • Tells you when it's time to change the water panel
  • Gives you service alerts

Other items needed for the installation that are not included: 1/4" copper tubing for water line, 1/2" ID plastic tubing for drain, 6" round ducting & elbow for bypass air, 2-conductor 18 to 22 gauge wire. These items are available in our easy installation kit.



Specs
Humidifier Type
Bypass
Maximum Coverage Area
3000 Square Feet
Water Capacity (GPD)
16 Gallons/Day
Water Feed Rate
3 Gallons/Hour
Evap. Capacity
.50 Gallons/Hour
Humidifier Electrical Requirements
24 Volts
Remote Sensing Bulb
Included
Bypass Duct Diameter
6 inches
Plenum Opening Size
9.5W x 9.5H inches
Width
15.62 Inches
Height
13 Inches
Limited Warranty
5 Years
