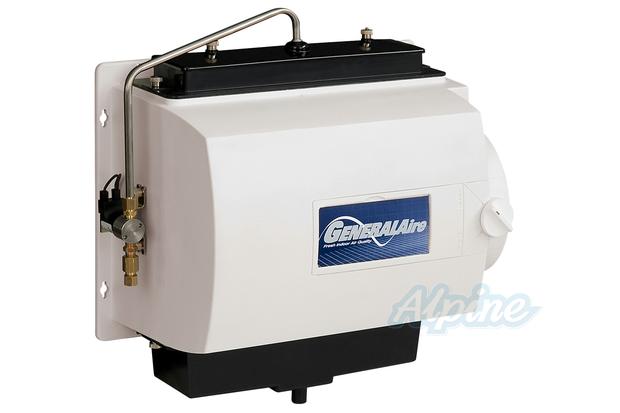

Legacy Series 24V Bypass Humidifier with Manual Control
Legacy Series 24V Bypass Humidifier with Manual Control
Model: GeneralAire 1042LH
Actual product may vary from photos.
Model: GeneralAire 1042LH
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
- Pro Installation (Learn More)
highlights
Water is dispersed evenly throughout a Vapor Pad® inside the 1042LH. A portion of the heated air from the furnace passes through the water-soaked pad where it absorbs additional moisture and then returns for distribution throughout your home. Newly-moistened and healthier air is provided to you and your family.
Features:
- For Home Sizes up to 2,800 Sq. Ft.
- 19 GPD
- 24V
- Shut-Off Damper
- 13 lbs.
- Included: MHX3 Manual-Control Duct Mount Humidistat.
- Replacement Vapor Pad® number 990-13 (GFI #7002). Replace 1-2 times per season.
- 5 Year Warranty.
Click Here to watch a video demonstrating how to change your Vapor Pad.
Specs
Humidifier Type
Bypass
Maximum Coverage Area
2800 Square Feet
Water Capacity (GPD)
19.0 Gallons/Day
Height
11.50 Inches
Width
15 Inches
Humidifier Electrical Requirements
24 Volts
Remote Sensing Bulb
Not Available For This Model
Plenum Opening Size
10 1/4W x 9 1/2H inches
Bypass Duct Diameter
6 inches
Limited Warranty
5 Years
Accessories
Bypass & Power-Fan Humidifier Installation Kits
Alpine Home Air Products KIT075
Installation Kit for Bypass-Type Humidifiers
$59.99
Tools
DiversiTech 640-UL25
DiversiTech 640-UL25 Foil Tape
$34.99
Documents
1042LH Installation & Owners Manual(PDF, 1.19 MB)- 1042LH Brochure(PDF, 754 KB)
- 1042LH Spec Sheet(PDF, 798 KB)
How to Install a Humidifier Video(URL, Link)
