110 CFM Bath Fan, Uses 4 in. Duct, Energy Star Rated 14-Watt Fluorescent Light
110 CFM Bath Fan, Uses 4 in. Duct, Energy Star Rated 14-Watt Fluorescent Light
New Item!

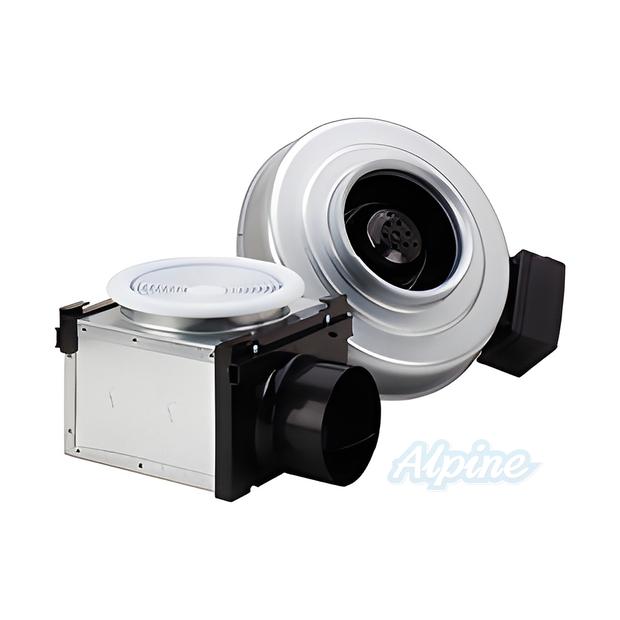

Model: Fantech PB110F
Actual product may vary from photos.
Model: Fantech PB110F
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
highlights
A small-scale grille mounts in the ceiling while the fan motor mounts in a remote location away from the living area. The result is a quiet yet powerful combination that is sure to keep the desired airflow even when long ducts are used. This will protect your home from the damaging effects of moisture, steam and mold. PB fans are designed for intermittent or continuous operation to meet ASHRAE Standard 62.2.
Features:
- 110 CFM fan, one ceiling grille with light, grille housing with damper and a 14-watt, instant-on, flourescent bulb. Uses 4" duct.
- Ventilation with Illumination
- cULus and HVI Certified
- UL listed for wet locations
Specs
UL Tub/Shower Enclosure
Yes
Enclosure Class
motor 44 IP
Insulation Class
motor B
Airflow Capacity
139 CFM
Wattage
20.4 Watts
Voltage Phase
1
Frequency
60 Hz
Max Amperage
.18 amps
Voltage
120 Volts
Product Type
Bathroom Fan
Product Weight
11 lbs
Parts Warranty
7 Years
Fan Speed RPM
2886 RPM
ENERGY STAR® Certified
No
Accessories
Fan Accessories
Honeywell HVC0001
Digital Bath Fan Control - White
$69.99
Tools
DiversiTech 640-UL25
DiversiTech 640-UL25 Foil Tape
$34.99
Documents
- Fantech PB110F Technical Parameters(PDF, 217 KB)
