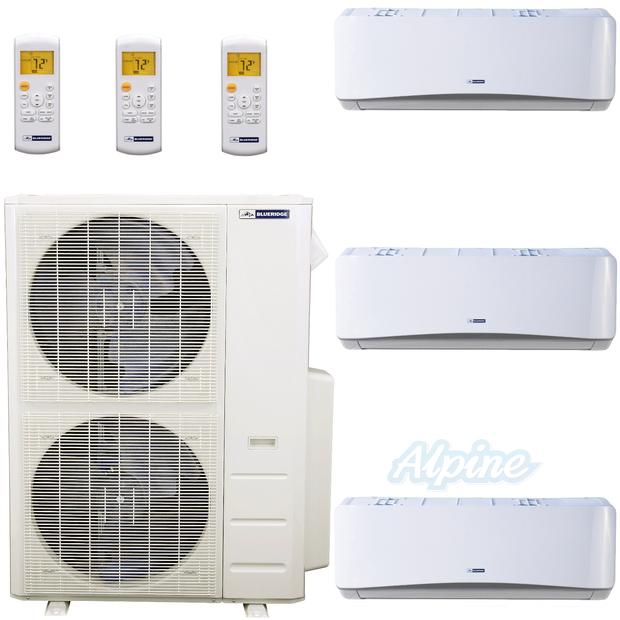

48,000 BTU (4.0 Ton) 21.5 SEER Hyper Heat Three Zone Ductless Mini-Split Heat Pump System - Wi-Fi Capable

48,000 BTU (4.0 Ton) 21.5 SEER Hyper Heat Three Zone Ductless Mini-Split Heat Pump System - Wi-Fi Capable

Model: Blueridge BMHH48M22C-12W-18W-18W

Top Rated: Hightest Rating of Any Mini-Split Brand
  • + 4 More
Mouse over or pinch image to zoom in.
Actual product may vary from photos.

Model: Blueridge BMHH48M22C-12W-18W-18W

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

You save: 22%
Compare to: $5,693.00
Or as low as
Volume Discounts
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Heat or Cool Any Space, Simply and Affordably.
Easy to
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Blueridge mini-splits are a high quality, energy efficient and inexpensive option for cooling and heating many types of spaces without ductwork.
Blueridge mini-splits compare favorably to well-known brands at a fraction of the price. They have the highest online product ratings of all mini-split brands. Their affordability, ease of installation, and high quality make them a favorite among contractors and homeowners.
WiFi Control
Included remote with features like Quiet Mode, Turbo Mode, Sleep Mode and Timer. Use app with smartphone or tablet to control the system from
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Bonus rooms
Hotel rooms
Small businesses
Tiny homes
Coffee shops
Pool houses
Man caves
Retreat spaces
Sun rooms
Enclosed porches
Mother-in-law apartments
Many more applications
Blueridge Ductless Mini-Split AC Highlights
Ductless Mini-Split Basics Explained
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Cleveland, GA
This is an outstanding product at a reasonable price.
Birmingham AL
Great mini-split system!
New Bern, NC
Installed easily and works very quietly.
Palm Desert, CA
Excellent! Works great.
Jefferson, GA
I would buy it again.
Johns Creek, GA
Blueridge BM18M21WM Unit Type:
Wall Unit
Wall mounted units mount high on a vertical wall. The connective hoses and condensation go through the wall to the outside behind the unit. These are the most popular design due to the ease of installation and low cost.
Step 1
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMHH48M22C-12W-18W-18W
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
48,000 BTU 21.5 SEER Five Zone Hyper Heat Ductless Mini Split Outdoor Condenser
18,000 BTU Wall Mounted Ductless Indoor Air Handler
12,000 BTU Wall Mounted Ductless Indoor Air Handler
Remote Control with "Follow Me" Feature
*NOTE: Does not include all required components for installation. See required components below in the accessories section to complete your system.
Ambient Temperature Range (Cooling)
-22 / 122 °F
Ambient Temperature Range (Heating)
-22 / 86 °F
Low Ambient Cooling
Total Cooling Capacity
4 Ton(s)
Heating Capacity
49000 BTU
Cooling BTUs
48000 BTU
Cooling Tonnage
4 Tons
Maximum Cooling Output BTU
48000 BTU
Maximum Heating Output BTU
49000 BTU
21.5 SEER
Energy Efficiency Ratio
11.6 EER
Coefficient of Performance
3.59 COP
Heating Seasonal Performance Factor
10.3 HSPF
Maximum CFM
4500 @ 0.5
Yes (With Adapter)
Lowest Ambient Temperature (Heating)
-22 °F
Factory Precharge
125 Feet
Minimum Ampacity
42 Amps
Maximum Fuse/Breaker
50 Amps
Maximum Line Length per Zone
115 Feet
Maximum Height Difference
49 Feet
Line Set Connection Type
Compressor Type
Liquid Line Size
(3) 1/4 Inches
Suction Line Size
(3) 1/2 Inches
Indoor Air Handler Size, W x H x D
Multiple Sizes - See Documentation Inches
Sound Rating, Indoor
22 / 36 Decibels
Sound Rating, Outdoor
64 Decibels
Maximum Line Length all Zones
262 Feet
Outdoor Condenser Size, W x H x D
37.48 x 52.48 x 16.34 Inches
Total Weight
313 Lbs
Indoor Air Handler Weight
Multiple Weights - See Documentation Lbs
Outdoor Condenser Weight
269.84 Lbs
Indoor Air Handler Type(s)
Wall Mounted
208 - 230 Volts
60 Hz
Voltage Phase
Compressor Warranty
7 Years
Parts Warranty
5 Years
