Concealed Duct Installation Return Side Kit for Blueridge Minisplit Systems (Three Returns 10 inch Ducts)

Concealed Duct Installation Return Side Kit for Blueridge Minisplit Systems (Three Returns 10 inch Ducts)

Model: Alpine 24CD KIT1

Actual product may vary from photos.

Model: Alpine 24CD KIT1

$839.00
You save: 26%
Compare to: $1,140.00
Or as low as
Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

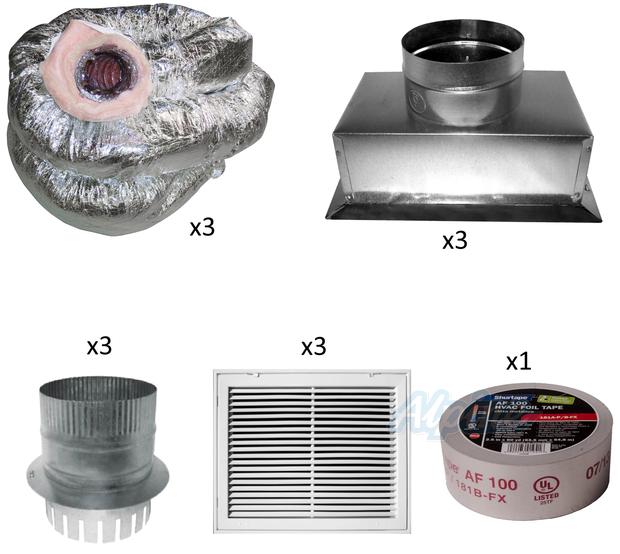

This is a professionally designed return ductwork installation kit for the BM24MCD concealed duct (multi room) air handler. With the exception of the return plenum itself this kit includes all of the materials needed to successfully install the BM24MCD return ductwork. This kit has been designed specifically for the BM24MCD to deliver an optimal perfomance level and help to simplify the installation. It uses 3 10 inch return ducts to optimize air mixture in your space. It is highly recommended that you select one of the matching supply duct installation kits as well and the supply and return air plenum KIT-BPK24. This kits is designed to be used with a ductboard plenum such as KIT-BPK24. This kit is not compatible with a sheet metal plenum. It includes:

x3 25 feet of 10 inch R8 metalized felx duct
x3 10 inch ductboard takeoff collar no damper
x3 12 x 12 x 10 (round connection) R8 insulated ceiling boxes
x3 12 x 12 x 1 ceiling filter grille
x1 Foil tape

Installation notes: The opening in the return box needs to be flexed open a bit to accommodate the filter grille. Also, the flange of the return box is larger than the grille and will be visible from inside the living space. The return air box flange can be trimmed so the grille covers it fully.

Specs
view information
Product Type
Concealed Duct Installation Kit
