Blueridge Concealed Duct Plenum KIT-BPK12

New Item!

Model: Blueridge KIT-BPK12

Sale
Actual product may vary from photos.

Model: Blueridge KIT-BPK12

$13499
Or as low as

ย
Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

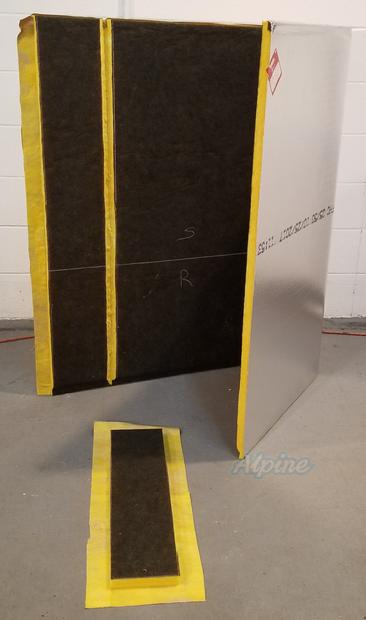

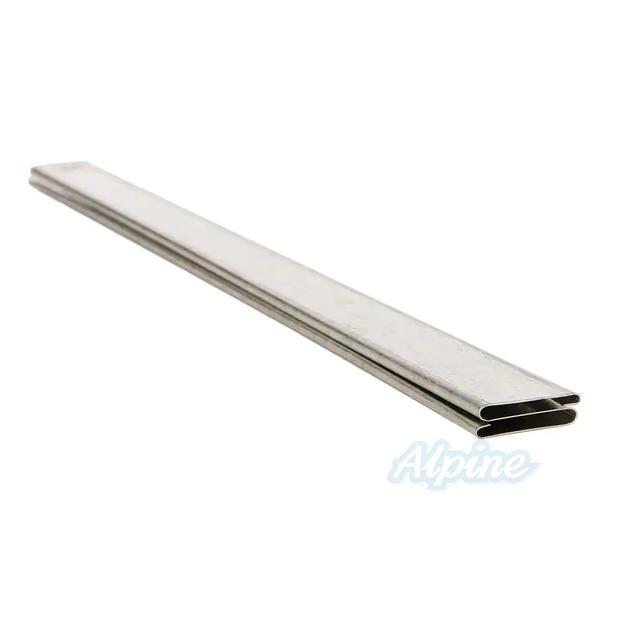

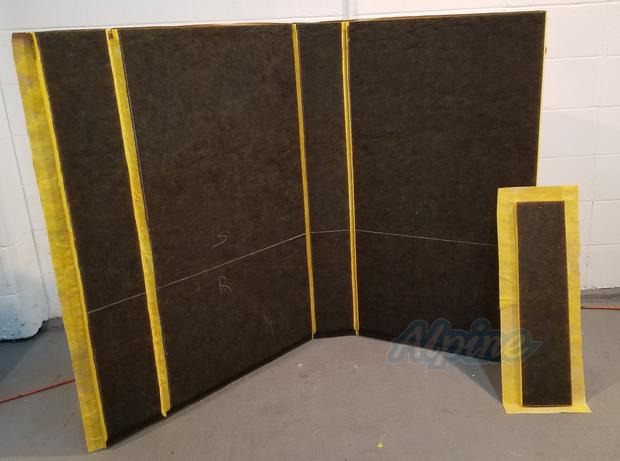

These kits consist of two pre-cut pieces of ductboard material (1in thickness) and two 28 Gauge S-Cleats, from which you can make a Supply and Return plenum for your Blueridge Concealed Duct unit.  This kit is sized for the 12,000 BTU BM12MCD Concealed Duct Air Handler.



They come pre-cut for easy assembly.  The supply and return sides are clearly marked to form a 30" supply and an 18" return.  If your project calls for slightly different sizes, you can easily cut the material with a serrated knife to match your installation.

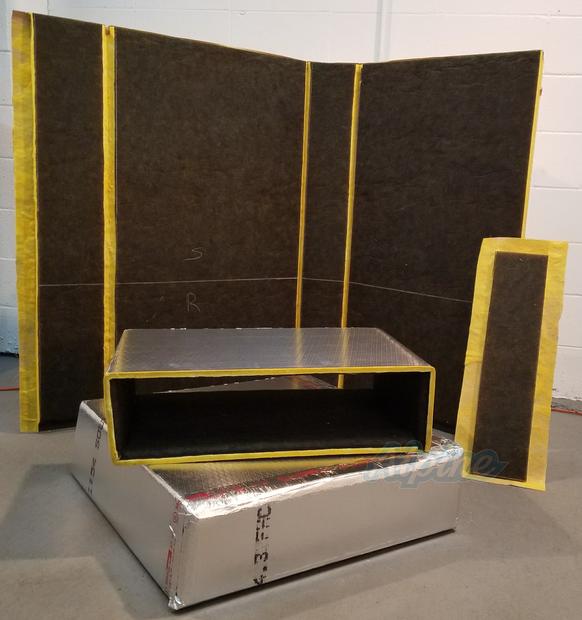

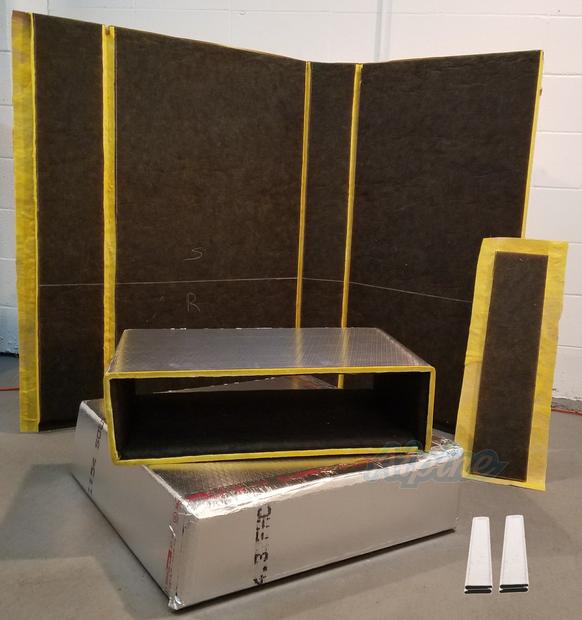

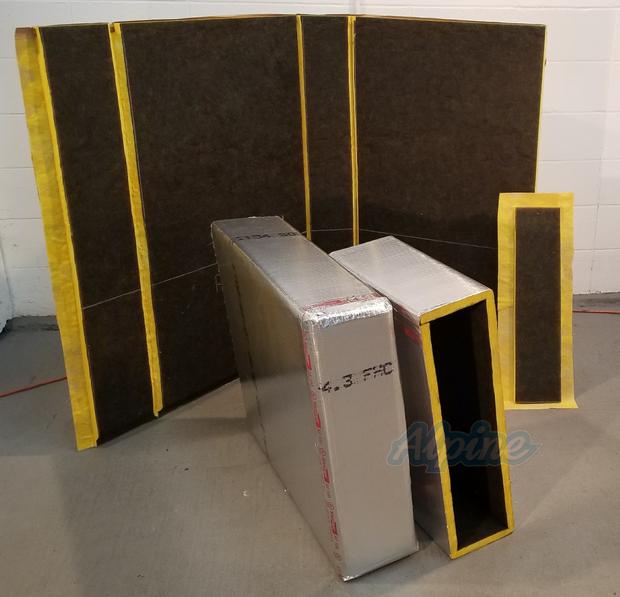

Once separated, fold the material on the V shaped cuts to create a box shape, and finish the seam with foil tape, mastic and duct sealant (Accessories).  Then fit the end cap piece into either end of the supply plenum and seal with tape and mastic.  This provides a 5 sided plenum to which you can attach takeoffs for flex ducting.



Follow the same procedure with the other piece to create a return.

Specs
System Information
view information
Product Type
Concealed Duct Plenum Kit
Important Measurements
view information
Supply Plenum Dimensions
22 x 6 inches
view information
Return Plenum Dimensions
22 x 6 inches
Accessories

Required Components for Installation

DiversiTech 800-008
DiversiTech 800-008
Pro-Air Duct Sealant - 1/10 Gallon Tube - 10.5 oz.
$999
DiversiTech 800-009
DiversiTech 800-009
Pro-Air Duct Sealant - 1 Gallon Pail
$4999
Hardcast CCWI-181
Hardcast CCWI-181
Duct Sealant - 1 Gallon (Gray)
$3999
DiversiTech 640-UL25
DiversiTech 640-UL25
DiversiTech 640-UL25 Foil Tape
$3499
