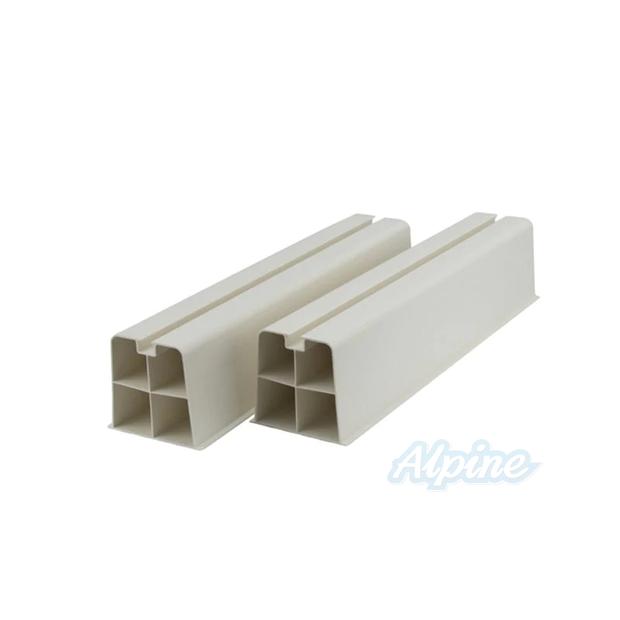

(2-Pack) 17" Mounting Blocks for Ductless Mini-Split Air Conditioner and Heat Pump Condensers
(2-Pack) 17" Mounting Blocks for Ductless Mini-Split Air Conditioner and Heat Pump Condensers
highlights
The 230-MB17W is used as a mounting base when mini-split air conditioner or heat pump condensing units must be either bolted down, or elevated off of the ground. These mounting blocks are available in 14", 17" and 36" lengths. End caps are also available for aesthetic purposes. The maximum load is 900lbs per mounting block, and the installation temperature range is -4°F to 140°F. DiversiTech mounting blocks fit all mini-split air conditioner and heat pump condensing units due to their unique sliding rail design.
Specs
System Information
Color
White
Product Type
Mounting Block
Product Dimensions
Width
17 3/4 Inches
Depth
3 1/2 Inches
Height
3 3/4 Inches
Important Measurements
Weight Capacity
900 lbs
Documents
Diversitech SpeediChannel Brochure 5-2023(PDF, 510 KB)
Speedichannel Installation Instructions 5-2023(PDF, 3.20 MB)
Diversitech SpeediChannel Spec Sheet 5-2023(PDF, 1.82 MB)
