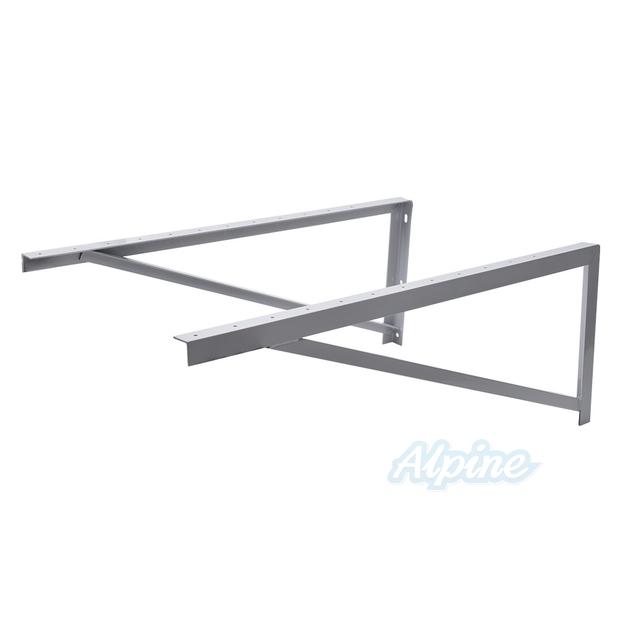

The DiversiTech ACB-42-AL is a pair of 42 in. aluminum wall-mount brackets for hanging mini-split condensers, A/C condensers and heat pumps above grade. Aluminum construction resists corrosion in coastal and humid climates, and the bracket is Florida Product Approved (FL22529.1) for use both inside and outside the High Velocity Hurricane Zone (HVHZ).

Features

• Florida Product Approval FL22529.1 (2023 Florida Building Code) - approved for HVHZ and non-HVHZ installations
• Corrosion-resistant aluminum construction (6061-T6 or equivalent), ideal for coastal installations
• 600 lbs. load capacity per pair
• Pre-punched 7/16 in. wall-mounting holes sized for 3/8 in. anchors
• Pre-punched 15/64 in. equipment-mounting holes
• Sold as a pair (2 brackets)

Specifications

• Rating - Wind / Hurricane Rated: Florida Product Approval FL22529.1 (2023 Florida Building Code), approved for HVHZ and non-HVHZ installations; allowable design pressure up to ±75 psf
• Max Rated Unit Size (FL22529.1) - 36 in. W (along wall) x 46 in. H x 36 in. D (projection); max unit face area 1,656 sq. in.; max unit weight 600 lbs.
• Arm Length - 42 in.
• Profile Width - 1.75 in.
• Material Thickness - 3/16 in.
• Vertical Leg Height - 16-3/16 in.
• Material - Aluminum
• Load Capacity - 600 lbs. per pair
• Pack Quantity - 2
• Warranty - 1 Year

Florida Approval Limits (FL22529.1, ACB-42-AL)

• Maximum unit weight - 600 lbs.
• Maximum design pressure (ASD) - ±75 psf lateral; wind uplift not included (site-specific engineering required if uplift is needed)
• Maximum installation height - 15 ft. above grade without site-specific engineering
• Anchors - (3) per bracket: 3/8 in. DeWalt Screw-Bolt+ (2-1/2 in. embedment, 4 in. min. edge distance) into non-cracked concrete (4 in. thick min.) or grout-filled CMU; 3/8 in. lag screw (3 in. min. embedment) into wood framing (2x4 min.); 3/8 in. self-tapping screw or bolt into steel (12 ga. min.)
• Maximum unit size for ACB-42-AL - 36 in. L (width along wall) x 46 in. H x 36 in. D (projection from wall); maximum unit face area 1,656 sq. in.
• Refer to the approval installation drawing for complete requirements

Mounting hardware (anchors) is not included.
