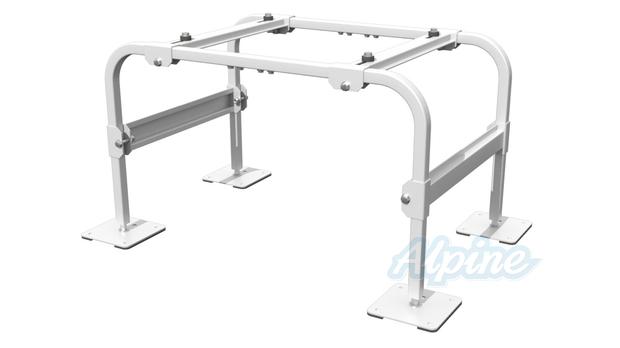

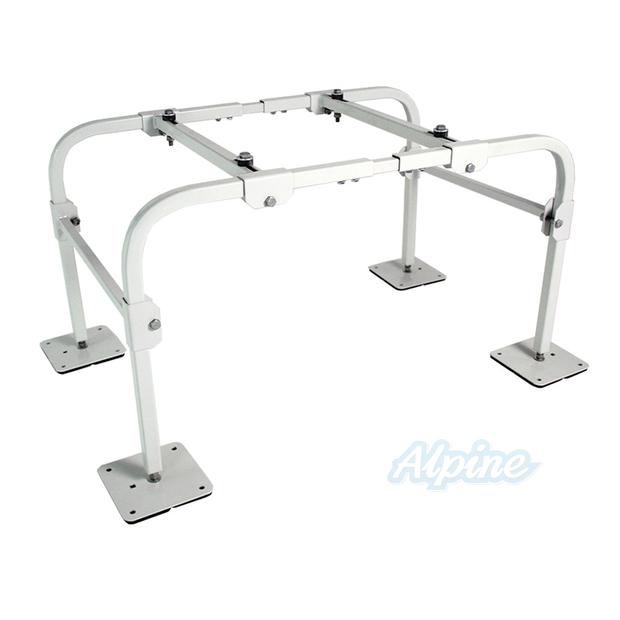

The DiversiTech Quick-Sling QSMS1801 is an 18 in. tall single fan ground stand that lifts a mini-split condenser above lawn equipment, pets, snow and standing water. It is built from powder-coated 14-gauge square steel tubing, adjusts to fit most mini-split condensers on the market, and is Florida Product Approved (FL22415.3) for use both inside and outside the High Velocity Hurricane Zone (HVHZ).

Features

• Florida Product Approval FL22415.3 (2023 Florida Building Code) - approved for HVHZ and non-HVHZ installations
• 400 lbs. load capacity
• 18 in. tall - keeps the condenser clear of snow, debris and flooding
• Adjustable length from 37 to 43 in. in 1 in. increments fits most mini-split condenser footprints
• Hat-channel mounting arms; feet adjust up to 1.25 in. for leveling on uneven pads
• Ships partially assembled for faster installation
• Anti-vibration isolation washers and 50-durometer rubber pads on each foot reduce noise and vibration
• 6 in. x 6 in. slotted feet can be fastened to concrete, wood or plastic pads; 1/4-20 hardware included
• Suitable for residential and light commercial installations

Specifications

• Rating - Wind / Hurricane Rated: Florida Product Approval FL22415.3 (2023 Florida Building Code, ASCE 7-22), approved for HVHZ and non-HVHZ installations; allowable design pressure varies by unit face area (see approval drawing)
• Max Rated Unit Size (FL22415.3) - 42 in. H max; unit face area (L x H) up to 16.5 sq. ft.; unit depth may not exceed unit length; max unit weight 500 lbs. per approval (stand rated 400 lbs.)
• Model Height Class - 18 in.
• Height - approx. 19-1/4 in.
• Width - approx. 25-5/16 in. (outside of feet)
• Length - 37 to 43 in. (adjustable in 1 in. increments)
• Finish - Tan powder coat
• Material - Powder-coated 14-gauge square steel tubing
• Load Capacity - 400 lbs.

Florida Approval Limits (FL22415.3)

• Maximum unit height - 42 in.
• Maximum unit face area (L x H) - 16.5 sq. ft.; unit depth shall not exceed unit length
• Maximum unit weight - 500 lbs. per approval (stand rated 400 lbs.)
• Design basis - ASCE 7-22
• Allowable lateral design pressure decreases as unit face area increases (130 psf at 4.0 sq. ft. down to 35 psf at 16.5 sq. ft.; up to 60 psf at 16.5 sq. ft. with optional additional stability bars) - see the approval drawing design schedule
• Anchors - (4) per baseplate, minimum 600 lbs. allowable tension and 400 lbs. allowable shear per anchor, into non-cracked concrete or other substrate per the approval drawing
• Rooftop installations require site-specific engineering
