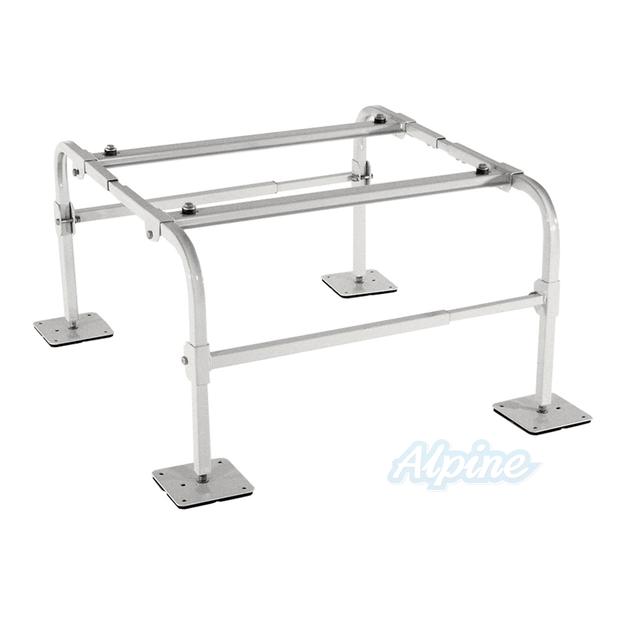

The DiversiTech Quick-Sling QSMS1802 is an 18 in. tall dual fan ground stand built to support taller dual fan mini-split condensers above lawn equipment, pets, snow and standing water. Its extra-stable frame is made from powder-coated 14-gauge square steel tubing, and it is Florida Product Approved (FL22415.3) for use both inside and outside the High Velocity Hurricane Zone (HVHZ).

Features

• Florida Product Approval FL22415.3 (2023 Florida Building Code) - approved for HVHZ and non-HVHZ installations
• 400 lbs. load capacity
• Extra-stable frame designed for the taller dimensions of dual fan condensers
• Adjustable footprint length from 37 to 43 in.; width adjustable in 1 in. increments
• Hat-channel mounting arms add strength and dissipate sound and vibration
• 6 in. x 6 in. 11-gauge steel feet adjust up to 1.25 in. for leveling, with pre-installed 50-durometer rubber pads to reduce noise and vibration
• All hardware included, including anti-vibration isolation washers
• Ships partially assembled to save installation time

Specifications

• Rating - Wind / Hurricane Rated: Florida Product Approval FL22415.3 (2023 Florida Building Code, ASCE 7-22), approved for HVHZ and non-HVHZ installations; allowable design pressure varies by unit face area (see approval drawing)
• Max Rated Unit Size (FL22415.3) - 53 in. H max; unit face area (L x H) up to 16.5 sq. ft.; unit depth may not exceed unit length; max unit weight 500 lbs. per approval (stand rated 400 lbs.)
• Model Height Class - 18 in.
• Frame Height - approx. 19-1/4 in.
• Footprint Length - 37 to 43 in. (adjustable)
• Footprint Width - approx. 35-5/16 in.
• Material - Powder-coated 14-gauge square steel tubing
• Finish - Tan powder coat
• Load Capacity - 400 lbs.

Florida Approval Limits (FL22415.3, QSMS1802)

• Maximum unit height - 53 in.
• Maximum unit face area (L x H) - 16.5 sq. ft.; unit depth shall not exceed unit length
• Maximum unit weight - 500 lbs. per approval (stand rated 400 lbs.)
• Allowable lateral design pressure decreases as unit face area increases (130 psf at 4.0 sq. ft. down to 36 psf at 16.5 sq. ft.; higher with optional additional stability bars) - see the approval drawing design schedule
• Conditions beyond the approval schedule require site-specific engineering
• Refer to the approval installation drawing for complete anchoring requirements
