Asurity 100-240V Undermount Ductless Mini-Split Condensate Pump
Asurity 100-240V Undermount Ductless Mini-Split Condensate Pump
Model: DiversiTech QUIETMINI-M
Model: DiversiTech QUIETMINI-M
$15499
Or as low as
The DiversiTech QUIETMINI-M is no longer available for sale.
Includes
highlights

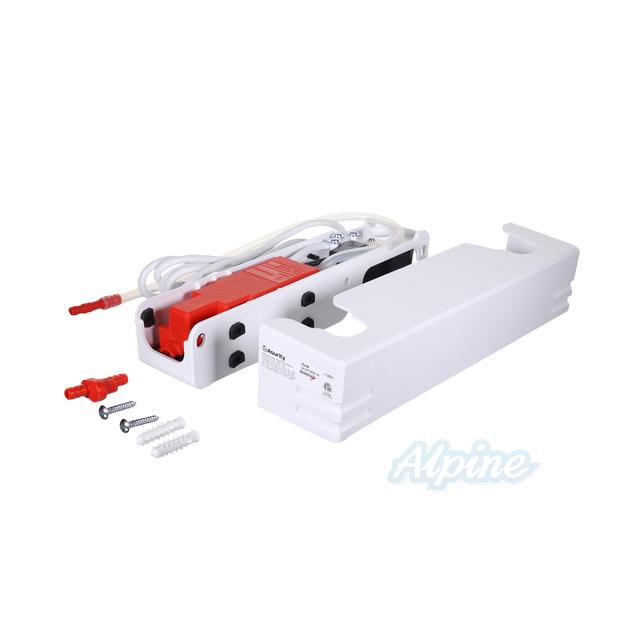

The Asurity™ QUIETMINI-M Undermount Pump is designed to install under wall mounted ductless air conditioners and provide condensate removal utilizing new ultra-quiet pump technology (UQT) along with a stylish sleek design. These tank pumps offer easy installation, hassle free maintenance and ultra-quiet pumping performance. Perfect for those installations in quiet locations - hotels, theaters, bedrooms and meeting rooms. Asurity™ - Your Complete System for Condensate Management.
Features:
- Undermount Pump for Ductless Systems
- Ultra Quiet, (21 dBA)
- Removable Reservoir for Easy Maintenance
- Built-In Safety Overflow Switch
- Max Unit Output 54,000 BTU/h
General Specifications:
- Power supply: 100-240V / 60Hz
- Power consumption: 2.5W
- Max. discharge head: 8m / 26ft
- Max. flow rate: 7.66 GPH (29 LPH)
- Size of outlet port: 6mm / (1/4")
- Temperature range: 1~40°C / 33~104°F
- Capacity of reservoir: 140mL
Specs
System Information
Product Type
Condensate Pump
Features
Safety Overflow Switch
Yes
Performance
Max Temp
104 °F
Sound Rating
21 Decibels
Max. Lift Height
26 ft.
Pump Capacity
7.66 GPH
Max BTUs
54000
Electrical Information
Voltage
100-250 Volts
Frequency
60 Hz
Amps
1.9
Product Dimensions
Width
11 3/5 Inches
Depth
2 19/20 Inches
Height
3 47/50 Inches
Important Measurements
Water Connection- Inlet
5/8 ID inches
Discharge Hose Interior Diameter
0.25 in
Documents
QUIETMINI-M Condensate Pump Technical Data Sheet(PDF, 186 KB)- Quietmini-M Install intructions(PDF, 16.0 MB)
