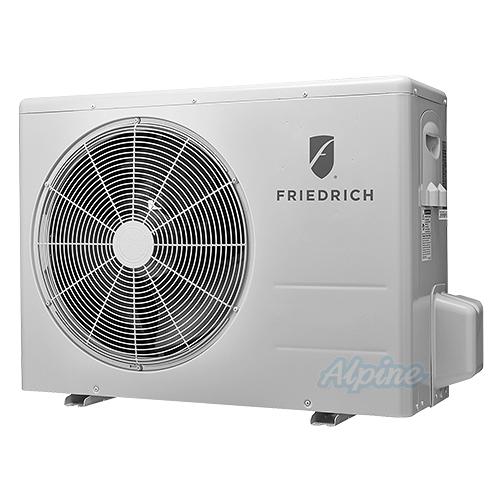

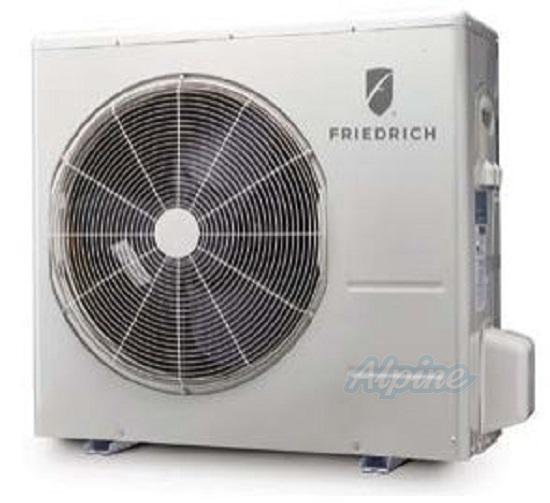

36,000 BTU 19 SEER Single Zone Ductless Mini Split Heat Pump Outdoor Condenser, R-410A, 220V
36,000 BTU 19 SEER Single Zone Ductless Mini Split Heat Pump Outdoor Condenser, R-410A, 220V
Model: Friedrich MR36UY3J
$1,94900
Have questions about this system?
Get expert help - freeBuild a mini-split system tailored to your home
Try Mini-split Builder - Free
Get expert help - freeBuild a mini-split system tailored to your home
Try Mini-split Builder - Free
Shop with Confidence
$1,94900
highlights
This is the outdoor condenser to the D36YJ and C36YJ single zone mini-split systems. The indoor componenets to these systems are the MD36Y3J and MC36Y3J.
Specs
System Information
Zones
1
Product Type
Ductless Mini Split Condenser
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
None
Efficiency
SEER
19 SEER
Refrigerant Readiness
Primary Refrigerant
R-410A
Performance
Tonnage
3 Ton(s)
High Output Cool
36000 BTU
High Output Heat
40000 BTU
Line Set Information
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
5/8 Inches
Line Set Connection Type
Flare
Product Dimensions
Width
37.406300000 Inches
Depth
13 Inches
Height
54 3/8 Inches
Footprint Mounting Holes (W x D)
24.56 x 14.19 Inches
Product Weight
203 lbs
Certifications
AHRI#
No Certification
ENERGY STAR® Certified
No
Documents
Friedrich MC36Y3J MR36UY3J Submittal Sheet(PDF, 4.13 MB)
