18,000 BTU (1.5 Ton) 20 SEER - S4 SERIES - 208/230V Single Zone Concealed Duct Mini Split System KIT 25FT

18,000 BTU (1.5 Ton) 20 SEER - S4 SERIES - 208/230V Single Zone Concealed Duct Mini Split System KIT 25FT

Model: Blueridge BMHH18Y20CD KIT25

Midea Concealed Duct / Gree Concealed Duct
Blueridge logo
Heat or Cool Any Space,
Simply and Affordably
affordable icon
quiet icon
reviews icon
easy to install icon
Easy to
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Midea Concealed Duct
Blueridge mini-splits are a high quality, energy efficient and inexpensive option for cooling and heating many types of spaces without ductwork.
Blueridge mini-splits compare favorably to well-known brands at a fraction of the price. They have the highest online product ratings of all mini-split brands. Their affordability, ease of installation, and high quality make them a favorite among contractors and homeowners.
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Bonus rooms
Hotel rooms
Small businesses
Tiny homes
Coffee shops
Pool houses
Man caves
Retreat spaces
Sun rooms
Enclosed porches
Mother-in-law apartments
Many more applications
Blueridge Ductless Mini-Split AC Highlights
Video thumbnail
Blueridge Mini-Splits also Provide Heat!
Video thumbnail
Great customer reviews
Great Product!
Cleveland, GA
This is an outstanding product at a reasonable price.
Birmingham AL
Great mini-split system!
New Bern, NC
Installed easily and works very quietly.
Palm Desert, CA
Excellent! Works great.
Jefferson, GA
I would buy it again.
Johns Creek, GA
View All Reviews
Blueridge BM18MCD Unit Type:
Concealed Ducted Unit
Concealed duct units provide maximum flexibility for challenging applications. Completely hidden, they can be mounted above the ceiling, below the floor, above a hallway or closet, or behind a soffit. You then use flexible ducting to heat and cool up to three spaces. Recommended for home additions or new construction.
Concealed Ducted Unit
Step 1
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Pro Start Up
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
Video thumbnail
View installation manual for complete instructions
Andrew Arthurs
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMHH18Y20CD KIT25
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.

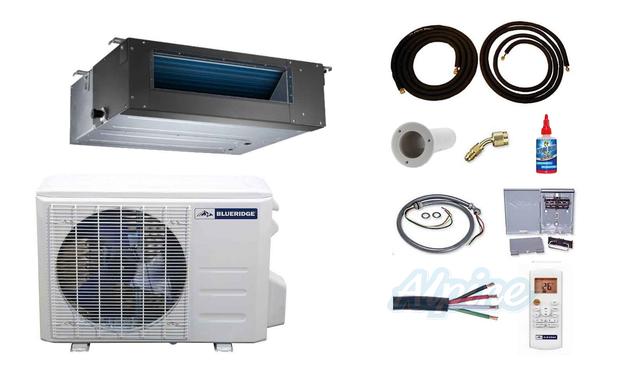

This System Includes*
Blueridge BMY18HH22C
18,000 BTU 21.5 SEER Single Zone Hyper Heat Ductless Mini Split Outdoor Condenser
Blueridge BM18MCD
18,000 BTU Concealed Ducted Air Handler (1/4 LL 1/2 SL)
Alpine 40880250B3B6
25 Foot 1/4 LL 1/2 SL Ductless Mini-Split Line Set
Alpine MW4/035
35' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
DiversiTech 230-WS2
2.5" Wall Sleeve for SpeediChannelā„¢ Line Set Covers
Alpine AG-WHP10
1/2 x 48 Inches, #10 Gauge Electrical Whip
Refrigeration Technologies RT201B
Nylog Blue Gasket, Flare and Thread Sealant

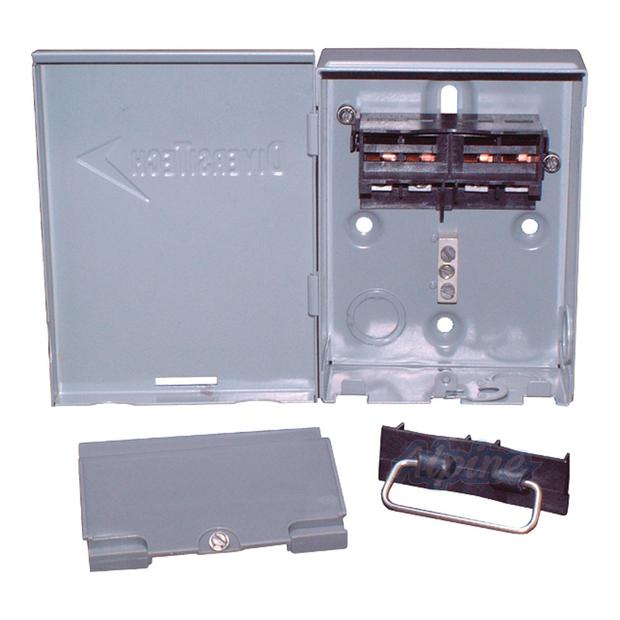

Alpine AG-DCT
Safety Non-Fused Electrical Disconnect
Alpine AHMSA1
Adapter 5/16" x 1/4" for Ductless Mini-Split Systems
Blueridge 17317000A53974
Remote controller
Blueridge 17317100A36377
Wired controller with WIFI built-in, KJR-120N(X6W)/BGEF (replaces 17317100A35580 & 17317100007940 )
System Information
view information
Mini-Split System Type
Heating / Cooling
view information
view information
Factory Precharge
25 Feet
view information
Indoor Air Handler Type(s)
Concealed Duct
view information
Single Zone Mini-Split Series
S4 Series: Hyper Heat
view information
Product Type
Mini Split KIT 25 ft
view information
view information
WIFI (2.4GHz)
view information
Coefficient of Performance (at 47 F)
2.93 COP
view information
Coefficient of Performance at 5Ā° F
view information
Energy Efficiency Ratio
12.5 EER
view information
Energy Efficiency Ratio 2
11.7 EER2
view information
19.6 SEER
view information
18.0 SEER2
view information
Heating Seasonal Performance Factor
11.0 HSPF
view information
Heating Seasonal Performance Factor 2
9.5 HSPF2
view information
Ambient Temperature Range (Cooling)
-22 / 122 Ā°F
view information
Ambient Temperature Range (Heating)
-22 / 86 Ā°F
view information
Low Ambient Cooling
view information
Base Heating Capacity
19000 BTU
view information
Airflow Capacity
530 / 450 / 371 CFM
view information
Total Cooling Capacity
1.5 Ton(s)
view information
Maximum Heating Capacity
19000 BTU
view information
Base Cooling Capacity
16500 BTU
view information
Lowest Ambient Temperature (Heating)
-22 Ā°F
view information
Maximum Cooling Capacity
18000 BTU
view information
Moisture Removal
3.3 Pts/Hr
view information
Compressor Type
view information
Cooling Tonnage
1.5 Tons
view information
Sound Rating, Indoor
35 / 37 / 39 Decibels
view information
Sound Rating, Outdoor
59 Decibels
Electrical Information
view information
60 Hz
view information
Voltage Phase
view information
Minimum Ampacity
16 Amps
view information
Maximum Fuse/Breaker
25 Amps
view information
208 - 230 Volts
Line Set Information
view information
Maximum Line Length per Zone
98 Feet
view information
Maximum Height Difference
66 Feet
view information
Liquid Line Size (OD)
1/4 Inches
view information
Suction Line Size (OD)
1/2 Inches
view information
Line Set Connection Type
Product Dimensions
view information
Indoor Air Handler Size, W x H x D
34.65 x 8.27 x 28.53 Inches
view information
Outdoor Condenser Size, W x H x D
35.04 x 26.50 x 13.46 Inches
Indoor Air Handler Weight
54 Lbs
Outdoor Condenser Weight
100.97 Lbs
view information
Footprint Mounting Holes (W x D)
26.1 x 13.9 Inches
view information
Compressor Warranty
7 Years
view information
Parts Warranty
5 Years
view information
view information
Qualifies for Govt. Money
North US: Up to $2,000
view information
