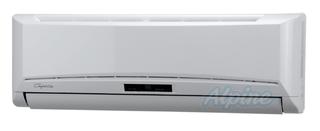

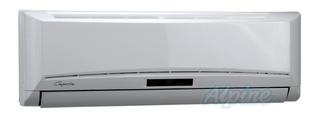

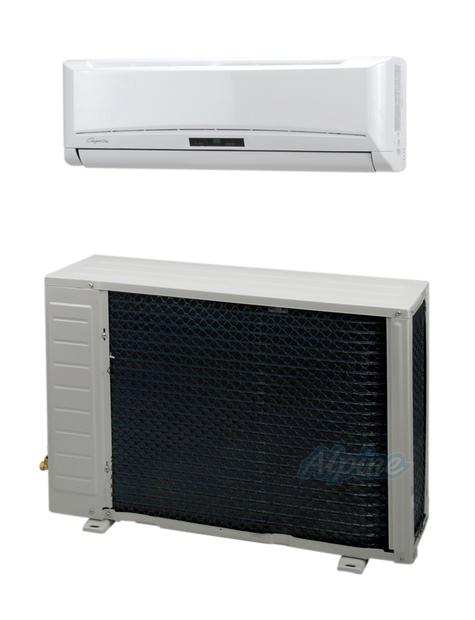

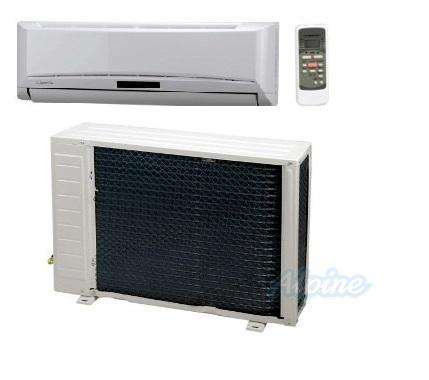

9,000 BTU 13 SEER Ductless Single Zone Heat Pump System

9,000 BTU 13 SEER Ductless Single Zone Heat Pump System

Model: Comfort-Aire SMH09SA-0

Sale
Actual product may vary from photos.

Model: Comfort-Aire SMH09SA-0

Now $25199

Was: $928.99

Savings: $677.00

Or as low as

The Comfort-Aire SMH09SA-0 is no longer available for sale.
Express Pay Available
highlights

The Comfort Aire wall mounted ductless mini-split heat pump systems (heating and cooling) are designed to be whisper quiet. The design keeps operational sound outside with the condenser while the indoor air handler remains much quieter. The sleek appearance of the indoor air handler blends with any decor. These systems are ideal for locations where it is too expensive or impractical to install ductwork, or where window air conditioning units cannot be used. They are easily installed in bedrooms, sun rooms, offices, arena skyboxes, and historical buildings.

Features

  • Whisper-quiet operation

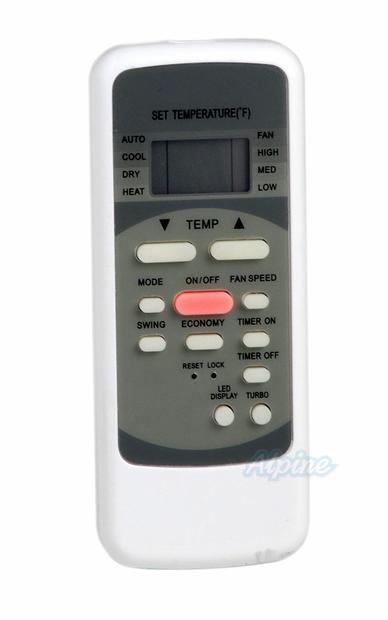

  • Attractive wireless remote control
  • Dehumidification mode reduces water vapor
  • "SLEEP" mode provides suitable sleeping environment
  • Timer which can be used to save energy
  • Auto operation adjusts fan and mode to maintain the selected room temperature
  • Three minute time delay at start protects the compressor from short cycling
  • Auto restart reverts to programmed setting after a power failure
  • Uses environmentally friendly R-410A refrigerant
  • Simple installation requiring a hole in the wall less than 3 inches in diameter for connections between the indoor and outdoor sections
  • Hot start prevents discharge of cold air during heat mode.



(Note: These heat pumps will not operate in heating mode when outdoor temperature is below 19.5 F degrees.)


Complete your system by selecting a line set from the Accessories tab above.  Line sets come in 15 foot, 35 foot, and 50 foot lengths.

Specs
System Information
Zones
1
Efficiency
SEER
13.0 SEER
Heating Seasonal Performance Factor
7.7 HSPF
Refrigerant Readiness
Primary Refrigerant
R-410A
Performance
Air Handler / Coil Tonnage
.75 Ton(s)
High Output Cool
9000 BTU
High Output Heat
10000 BTU
Sound Rating, Indoor
28 / 35 / 41 Decibels
Sound Rating, Outdoor
53 Decibels
Dehumidifying Capacity
1.7 Pints / Hour
Electrical Information
Voltage
115 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
13 Amps
Maximum Fuse/Breaker
15 Amps
Wiring Requirement for Indoor Unit
4 Conductor / 16 Gauge
Line Set Information
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
3/8 Inches
Line Set Connection Type
Flare
Maximum Line Length per Zone
33 Feet
Maximum Height Difference
16 Feet
Product Dimensions
Indoor Air Handler Size, W x H x D
32 x 11 x 7.7 Inches

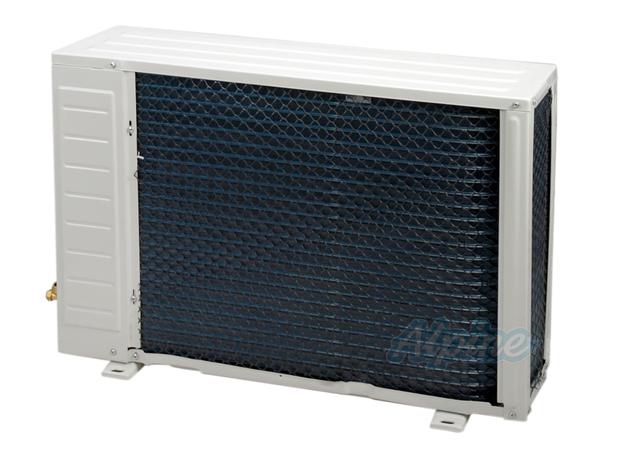

Outdoor Condenser Size, W x H x D
30.7 x 21.3 x 9.8 Inches
Outdoor Condenser Weight
77 Lbs
Indoor Air Handler Weight
24.2 Lbs
Certifications
ENERGY STAR® Certified
No
