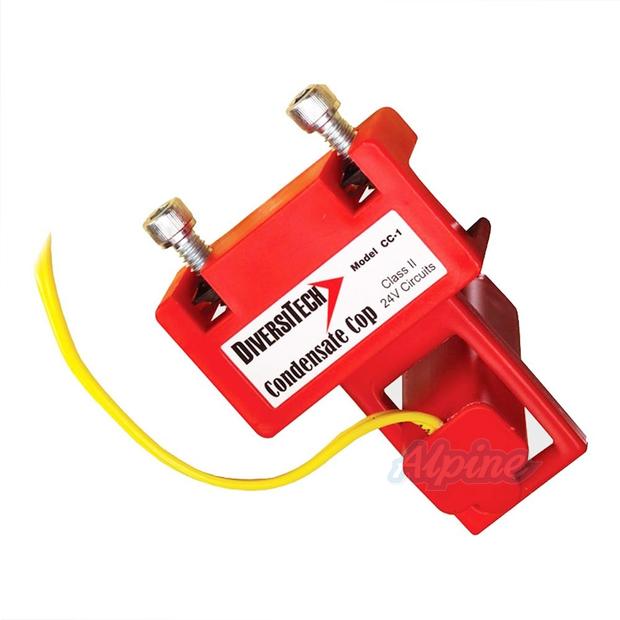

Condensate Cop, Clamp-On Mechanical Float Switch

New Item!

Model: DiversiTech CC-1

Actual product may vary from photos.

Model: DiversiTech CC-1

$1699

Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

Condensate Cop™ is a unique clamp-on float switch intended for HVAC drain pan installation. The Condensate Cop™ features a large over clamping area that fits easily over the edge of all types of drain pans; including formed plastic and galvanized sheet metal. (This is only for use with conventional ducted systems using a standard 24 volt thermostat)

A separate float / probe assembly swivels to accommodate drain pans having sloped sides. The swivel action allows the installer to position the float switch for best operation and then clamp it into place. The probe features an inlet grill which prevents the float from being blocked or damaged by insulation or other debris. Sealed inside the probe is a magnetically actuated normally closed switch. The switch opens when rising water presents a potential flooding condition. This cuts power to the AC unit or heat pump preventing it from producing additional condensation. When the water level drops in the pan the switch closes allowing the AC unit or heat pump to start cooling the space automatically.

Two-wire connection for easy hookup to a thermostat "Y" (compressor) circuit. Provided complete with 5' leads, wire nuts, and clamping screws.  Small size, 24V/1.5 amp NC reed switch.

No power required!

Specs
System Information
view information
Product Type
Float Switch
