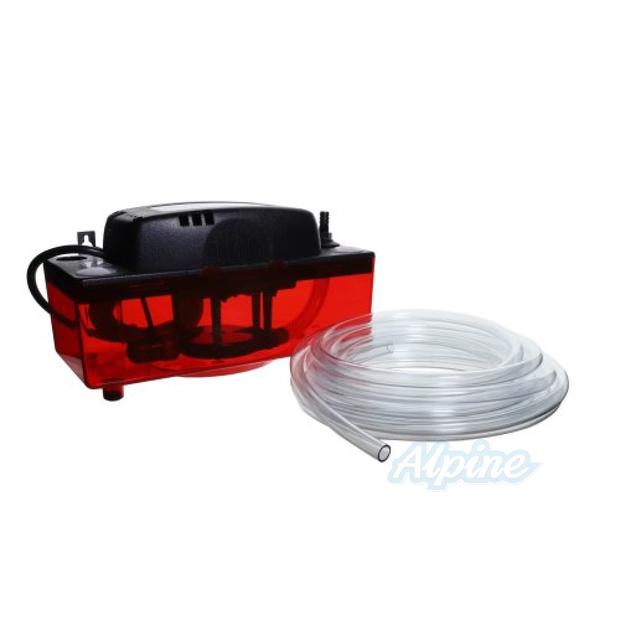

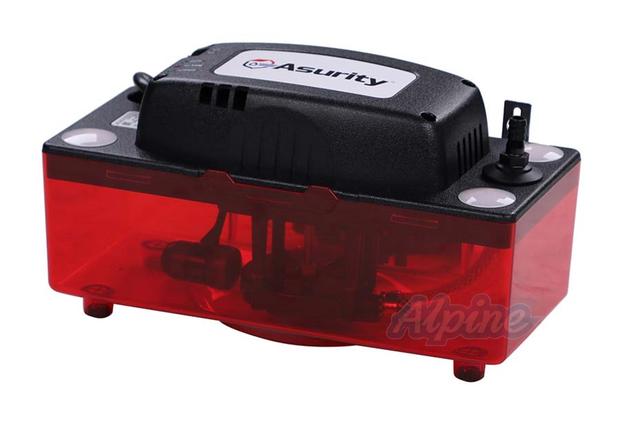

ULTRACP-22 Condensate Pump, 22 ft. Lift, 120V, Includes 20 ft. of Tubing
ULTRACP-22 Condensate Pump, 22 ft. Lift, 120V, Includes 20 ft. of Tubing
Model: DiversiTech ULTRACP-22T
Model: DiversiTech ULTRACP-22T
$8999
Qty:
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
highlights
The ULTRACP-22 is a full featured pump suitable for use with condensate from high efficiency condensing furnaces and boilers which produce acidic condensate. 22™ of lift compared to the typical 20™.
This product is designed to automatically pump condensate or water discharge from HVAC equipment up to 22' vertically once the condensate in the resevoir reaches a specifided level. DiversiTech ULTRACP-22 series pumps beat the industry standard of 20’ lift height by 2 feet and come with many innovative features.
- Vibration dampening feet and motor mounts
- Translucent Water Tank
- Metal hang tabs
- LED Indicators
- Four inlet holes
- Float switch and check valve
- Pan pill dispenser
- Includes 20 feet of tubing
Specs
System Information
Tank Volume
0.5 Gallons
Input Type
USA 3-Prong Molded Plug
Product Type
Condensate Pump
Performance
Flow Rate
1.6 GPM
Max. Inlet Temperature
160 F°
Max. Lift Height
22 ft.
Electrical Information
Voltage
120 Volts
Frequency
60 Hz
Amps
1.9
Product Dimensions
Width
5 9/10 Inches
Depth
11 4/5 Inches
Height
6 7/10 Inches
Product Weight
5 lbs
Shipping Weight
6.5 lbs
Important Measurements
Inlet Height from Base
4.4 in.
Documents
- Diversitech ULTRACP Series Condensate Pump Instructions(PDF, 3.06 MB)
