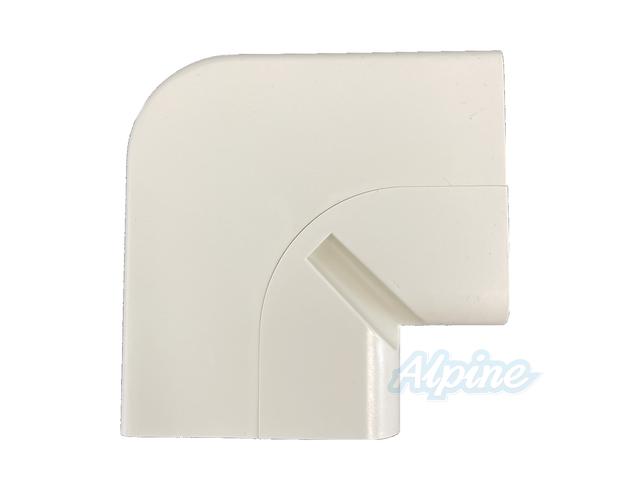

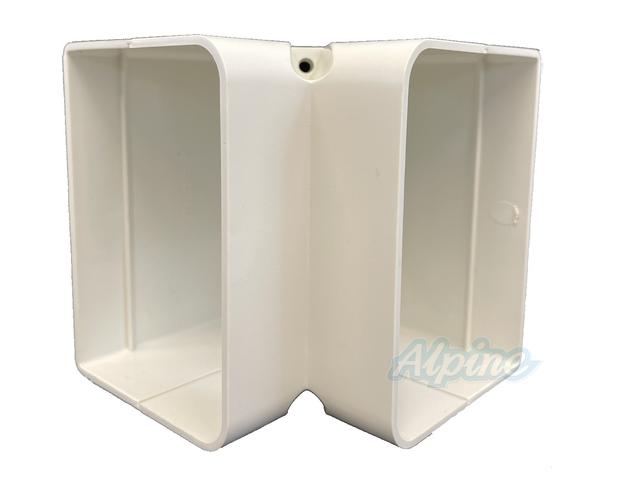

90° Inside Elbow for Diversitech 4" SpeediChannel™ Line Set Covers

New Item!

Model: DiversiTech 230-EB4

Actual product may vary from photos.

Model: DiversiTech 230-EB4

$2899
Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

Compatible Only with Diversitech Line Set Covers



90° inside elbows are used to route the SpeediChannel™ around an inside corner.  Each elbow is packaged with stainless steel screws for installation.

DiversiTech SpeediChannel™ is an innovative channel system used to cover air conditioning line sets. The two part system has a base and a cover. The base is fastened to a wall or ceiling, then a plastic clip (SpeediClip™) snaps into a channel already molded into the base. Using standard cable ties ran through the SpeediClips™, the line set, cables, control wires and / or condensate drain line are fastened in place. The cover then simply snaps on top of the base.

The SpeediChannel™ system is manufactured from rigid PVC, available in 3", 4" and 6" widths, and can be used both indoors and outdoors. Each piece of SpeediChannel™ is 3 1/4 feet long, and a complete line of couplings, elbows and tees are available. These line set covers can also be painted to match any wall color.



Specs
System Information
Color
White
Line Set Information
view information
Line Set Cover Series
DiversiTech 4 in. SpeediChannel
Product Dimensions
Length
2 3/4 Inches
Important Measurements
Angle
90 °
