Model: DiversiTech HP3636-8

Or as low as

Volume Discounts
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.

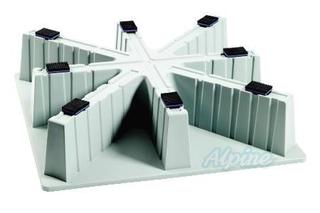

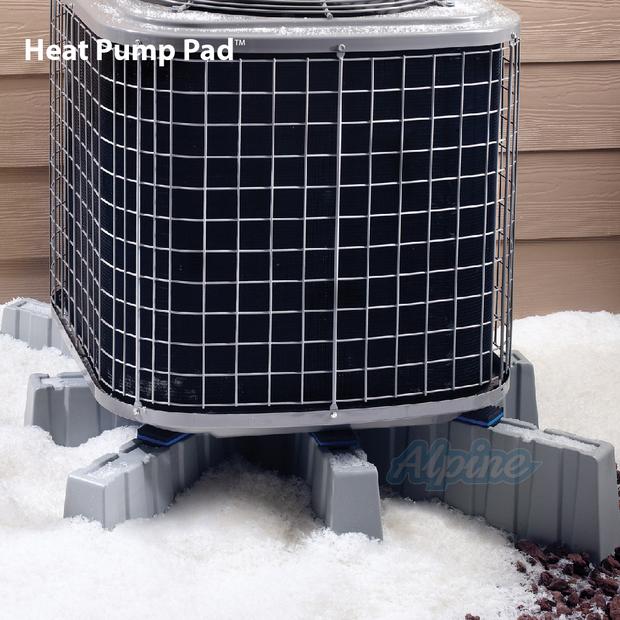

The DiversiTech Heat Pump Pad provides an effective base for heat pump equipment installed in snowy climates. Rather than a combination of a typical 2in (or 3in) equipment pad and 6in. heat pump risers, the Heat Pump Pad™ provides a full 8in of elevation in a simple 36in by 36in footprint.

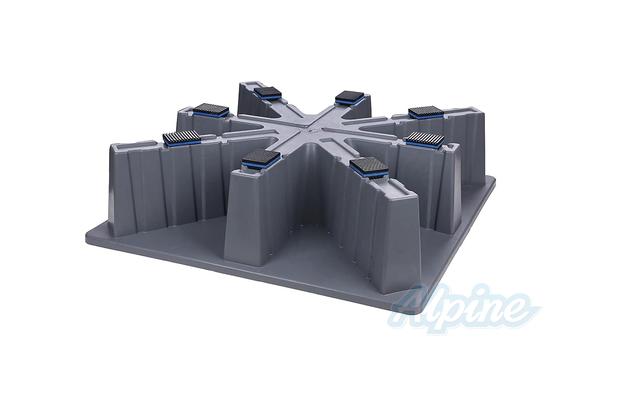

The star pattern of the integral risers allows for installation of equipment with different size footprints up to 36in X 36in. Also included are eight anti-vibration pads uniquely designed to fit into the guide slots on the top of the integral risers. The base is sloped outward to allow for easy drainage of condensate or defrost cycle condensate when the outdoor coil is operating in heat pump mode.

Nestable for efficient shipping, transportation, and warehousing. Injection molded from concrete gray, recycled polypropylene material, the Heat Pump Pad™ is environmentally friendly and designed to last longer than the equipment it supports. US Patent Number 7,891,635, and other patent(s) pending.

  • Star shaped integral risers - Accommodates equipment of various sizes with footprints up to 36" x 36"
  • Eight anti-vibration pads
  • Sloped base - Drains condensate away
  • Made from recycled polypropylene
Product Dimensions
36 Inches
view information
Pad Size
36x36 Inches
