3 Ton 16.6 SEER2 High Efficiency Commercial Packaged Air Conditioner, Two-Stage Cooling, 208/230V Single-Phase, R-32
3 Ton 16.6 SEER2 High Efficiency Commercial Packaged Air Conditioner, Two-Stage Cooling, 208/230V Single-Phase, R-32
New Item!

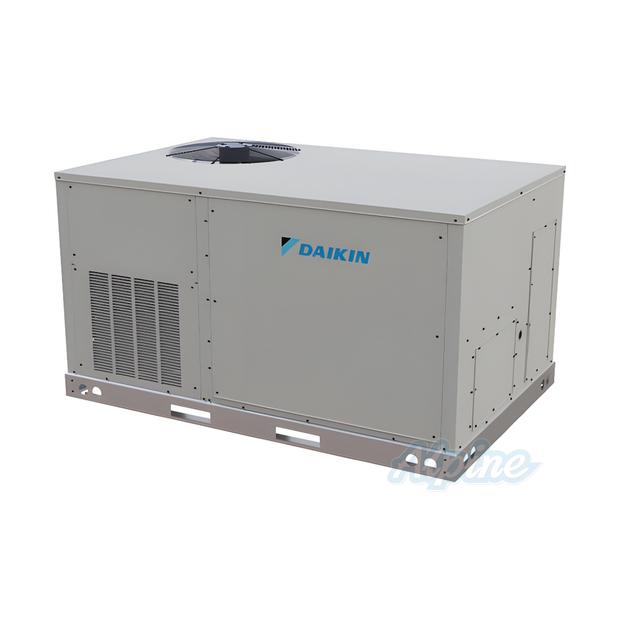

Model: Daikin DHC0361D000001S
Model: Daikin DHC0361D000001S
$4,893.41
Or as low as
Qty:
Includes
Services
The Daikin DHC0361D000001S is a 3 ton high-efficiency commercial packaged air conditioner with two-stage cooling on R-32 refrigerant. It installs in downflow or horizontal configurations for rooftop or ground-level light commercial applications.
- Cooling: 3 tons nominal, two-stage scroll compressor (16.6 SEER2 / 12.5 EER2)
- Accepts optional field-installed electric heat kits: 5, 10, 15 kW (sold separately)
- Refrigerant: R-32
- Electrical: 208/230V single-phase, 60 Hz; min. circuit ampacity 24.8 A; max fuse/breaker 35 A
- Airflow: convertible downflow / horizontal, 1,160 CFM nominal
- Filters: (4) 14 x 20 x 2
System Information
Configuration
Downflow / Horizontal
Maximum Static Pressure
0.8 in. w.c.
Fuel Type
Electricity
Product Type
Packaged Air Conditioner
Efficiency
SEER2
16.6 SEER2
EER2
12.5 EER2
Refrigerant Readiness
Primary Refrigerant
R-32
RDS Factory-Programmed For
R-32
Performance
Tonnage
3 Ton(s)
High Output Cool
35000 BTU
Electric Heat Capabilities (Optional)
10 / 15 / 5 Kilowatts
Stages of Cool
Two
Compressor Type
Scroll
Nominal Airflow
1160
Blower Type
Direct Drive
Electrical Information
Compressor RLA
14.5
Voltage
208 - 230 Volts
Voltage Phase
1
Minimum Ampacity
24.8 Amps
Maximum Fuse/Breaker
35 Amps
Line Set Information
Outdoor Refrigerant Charge
82 oz
Product Dimensions
Width
47 5/8 Inches
Depth
48 5/16 Inches
Height
71 5/8 Inches
Product Weight
537 lbs
Shipping Weight
595 lbs
Filter Size
(4) 14 x 20 x 2 Inches
Important Measurements
Return Air Opening Size
11 x 25 inches
Drain Connection (I.D.)
0.75 inch
Supply Air Opening Size
12 x 17 Inches
