12.5 Ton Standard Efficiency Commercial Packaged Air Conditioner, Two-Stage Cooling, 208/230V Three-Phase, R-32
12.5 Ton Standard Efficiency Commercial Packaged Air Conditioner, Two-Stage Cooling, 208/230V Three-Phase, R-32
New Item!
Model: Daikin DSC1503D000001S
Model: Daikin DSC1503D000001S
$12,713.69
Or as low as
Qty:
Includes
Services

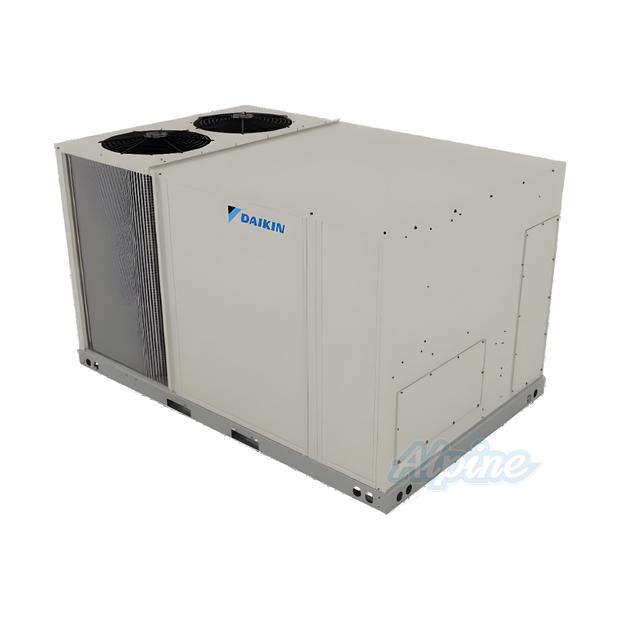

The Daikin DSC1503D000001S is a 12.5 ton standard-efficiency commercial packaged air conditioner with two-stage cooling on R-32 refrigerant. It installs in downflow or horizontal configurations for rooftop or ground-level light commercial applications.
- Cooling: 12.5 tons nominal, two-stage cooling with two scroll compressors (11.4 EER)
- Accepts optional field-installed electric heat kits: 15, 30, 45 kW (sold separately)
- Refrigerant: R-32
- Electrical: 208/230V three-phase, 60 Hz; min. circuit ampacity 59.5 A; max fuse/breaker 70 A
- Airflow: convertible downflow / horizontal, 4,200 CFM nominal
- Filters: (2) 20 x 25 x 2, (2) 25 x 25 x 2
System Information
Configuration
Downflow / Horizontal
Maximum Static Pressure
1.8 in. w.c.
Fuel Type
Electricity
Product Type
Packaged Air Conditioner
Efficiency
EER
11.4 EER
Refrigerant Readiness
Primary Refrigerant
R-32
Performance
Tonnage
12.5 Ton(s)
High Output Cool
140000 BTU
Electric Heat Capabilities (Optional)
15 / 30 / 45 Kilowatts
Stages of Cool
Two
Compressor Type
Scroll
Nominal Airflow
4200
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
3
Minimum Ampacity
59.5 Amps
Maximum Fuse/Breaker
70 Amps
Product Dimensions
Product Weight
1153 lbs
Shipping Weight
1225 lbs
Enjoy free shipping on any accessories purchased with the Daikin DSC1503D000001S.
Commercial Packaged Unit Accessories
Daikin 0270L01132
Motorized Damper for 7.5-12.5 Ton Commercial Packaged Units
$646.00
Daikin 0270L01133
Manual Damper for 7.5-12.5 Ton Commercial Packaged Units
$686.00
Daikin 0270L01153
Roof Curb for 7.5-12.5 Ton Commercial Packaged Units
$550.00
Daikin 0270L01754
Low Leak Downflow Economizer for 7.5-12.5 Ton Commercial Packaged Units
$2,215.00
Daikin 0270L01756
Ultra Low Leak Downflow Economizer for 7.5-12.5 Ton Commercial Packaged Units
$2,769.82
Daikin 0270L01760
Ultra Low Leak Horizontal Economizer for 7.5-12.5 Ton Commercial Packaged Units
$3,613.00
Daikin HAILGD90150BE
Hail Guard for 7.5-12.5 Ton Standard Efficiency Commercial Packaged Units
$752.24
Electric Heat Kits
Daikin EHXD-3M15
15 kW Electric Heat Kit for 7.5-12.5 Ton Commercial Packaged Air Conditioners, 208/230V Three-Phase
$800.00
Daikin EHXD-3M30
30 kW Electric Heat Kit for 7.5-12.5 Ton Commercial Packaged Air Conditioners, 208/230V Three-Phase
$1,096.00
Daikin EHXD-3M45
45 kW Electric Heat Kit for 7.5-12.5 Ton Commercial Packaged Air Conditioners, 208/230V Three-Phase
$3,946.00
Daikin 7.5-12.5 ton AC Packaged Unit Install Manual(PDF, 7.44 MB)- Daikin 7.5-12.5 ton AC Packaged Unit Submittal Sheet(PDF, 16.8 MB)
