24 Volts, 8 GPM at 60°F, 1" Sweat Connection, Normally Closed, Hydronic Zone Valve With End Switch (Terminal Block Connection)

24 Volts, 8 GPM at 60°F, 1" Sweat Connection, Normally Closed, Hydronic Zone Valve With End Switch (Terminal Block Connection)

New Item!

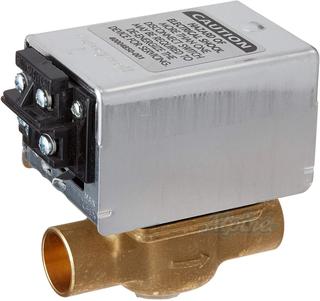

Model: Honeywell V8043F1101

Actual product may vary from photos.

Model: Honeywell V8043F1101

$11999
Or as low as

Volume Discounts
Qty:

Only 2 left in stock

Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

The V8043 Motorized Zone Valve provides 2-position (open-close), straight-through control of supply water for baseboard radiation, convectors, fan-coil units, etc. It uses a 5-screw terminal board, with a 24-volt control circuit and requires a SPST thermostat. Integral end-switch models permit the sequencing of auxiliary equipment.

Standard Features

  • Quiet, dependable operation is provided by motor-operated powerhead and swing-type ball valve.
  • Unique rotating ball plug that seats on a different part of its surface on each closing.
  • Closes against the flow of water to assure quiet operation.
  • Manual opener moves ball away from seat allowing valve to be installed without disassembly.
  • Manual opener allows for valve operation on power failure. Valve retrns to automatic position when power is restored.
  • Motor can be replaced by removing one screw, without disturbing the valve body or draining the system.
  • Low power requirements allow five valves to be operated from a single 40 VA transformer.
  • Compact construction permits fitting under cover of most baseboards.
Specs
System Information
Valve Action
Spring Return to Close
Valve Type
Zone Valve
Actuation
Two Position
Nominal Timing
15 Seconds
Connection Type
Sweat
view information
Product Type
Tools and Replacement Parts
Performance
Operating Humidity Range
5 - 95 % RH
Max Differential Pressure Rating
8 psi
Capacity (Cv)
8 GPM at 60°F
Fluid Temperature Range (°F)
50 F to 200 F
Maximum Ambient Temperature
200 °F
Electrical Information
Current Draw
.32
view information
Frequency
60 Hz
Electrical Connection
Terminal Block
view information
Voltage
24 Volts
Product Dimensions
view information
Width
3 1/2 Inches
view information
Height
4 Inches
Length
2 3/8 Inches
Product Weight
2.20 lbs
Important Measurements
Pipe Diameter
1 in
Connection Diameter
1 Inches
