24 Volts, 7 GPM at 60°F, 3/4" Sweat Connection, Normally Closed, Hydronic Zone Valve
24 Volts, 7 GPM at 60°F, 3/4" Sweat Connection, Normally Closed, Hydronic Zone Valve
New Item!

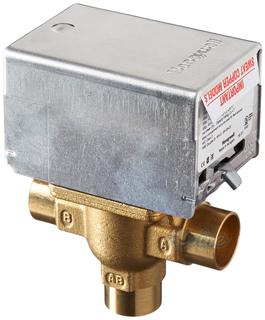

Model: Honeywell V8044A1044
- 3D
- 3D


Actual product may vary from photos.
Model: Honeywell V8044A1044
$10999
Or as low as
Qty:
Only 1 left in stock
Express Pay Available
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
highlights
The V8043 Motorized Zone Valve provides 2-position (open-close), diverting control of supply water for baseboard radiation, convectors, fan-coil units, etc. It uses a 2-wire, 24-volt control circuit and requires a SPST thermostat.
Standard Features
- Quiet, dependable operation is provided by motor-operated powerhead and swing-type ball valve.
- Unique rotating ball plug that seats on a different part of its surface on each closing.
- Closes against the flow of water to assure quiet operation.
- Manual opener moves ball away from seat allowing valve to be installed without disassembly.
- Manual opener allows for valve operation on power failure. Valve retrns to automatic position when power is restored.
- Motor can be replaced by removing one screw, without disturbing the valve body or draining the system.
- Low power requirements allow five valves to be operated from a single 40 VA transformer.
- Compact construction permits fitting under cover of most baseboards.
Specs
System Information
Connection Type
Sweat
Nominal Timing
30 Seconds
Valve Action
Spring Return to Close
Valve Type
Zone Valve
Actuation
Two Position
Product Type
Tools and Replacement Parts
Performance
Capacity (Cv)
7 GPM at 60°F
Fluid Temperature Range (°F)
40 F to 200 F
Maximum Ambient Temperature
125 °F
Operating Humidity Range
5 - 95 % RH
Electrical Information
Voltage
24 Volts
Frequency
60 Hz
Current Draw
.32
Electrical Connection
18 Inch Leads
Product Dimensions
Width
3 1/2 Inches
Depth
2 3/8 Inches
Height
4 Inches
Product Weight
1 lbs
Important Measurements
Connection Diameter
3/4 Inches
Pipe Diameter
0.75 in
Documents
- Honeywell Zone Valve Spec Sheet(PDF, 2.45 MB)
