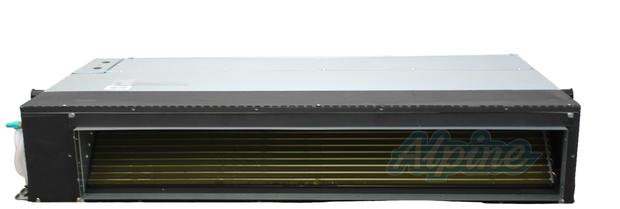

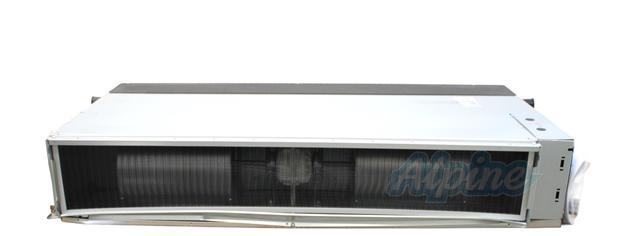

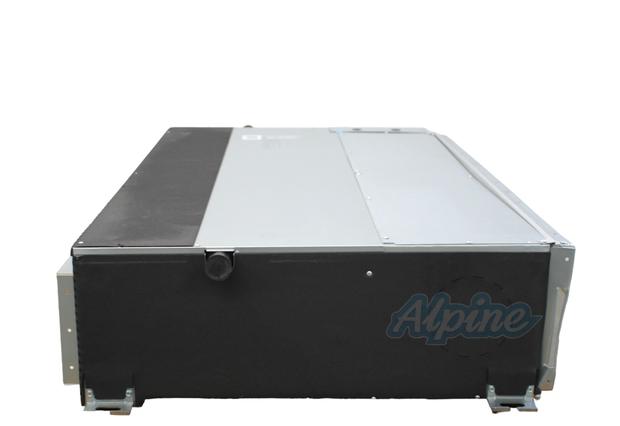

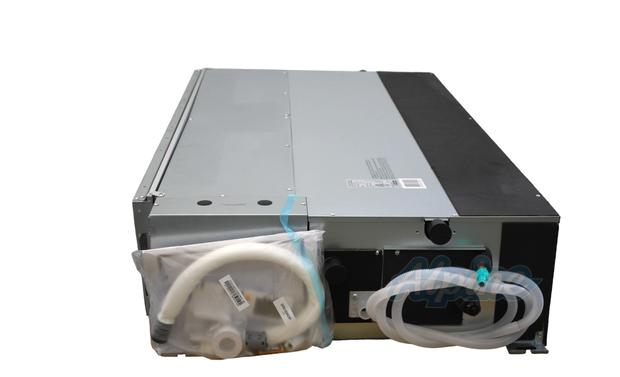

36,000 BTU Single Zone Concealed Ducted Air Handler (3/8 LL 5/8 SL)

36,000 BTU Single Zone Concealed Ducted Air Handler (3/8 LL 5/8 SL)

Model: Blueridge BM36MCD (Item No. 717594)

Actual product may vary from photos.

Model: Blueridge BM36MCD (Item No. 717594)

Provides heating and cooling

Whisper quiet indoors and outdoors

Sips electricity for low utility costs

Simple installation + friendly tech support available

$81700
Or as low as

Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

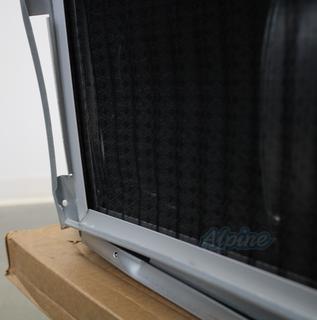

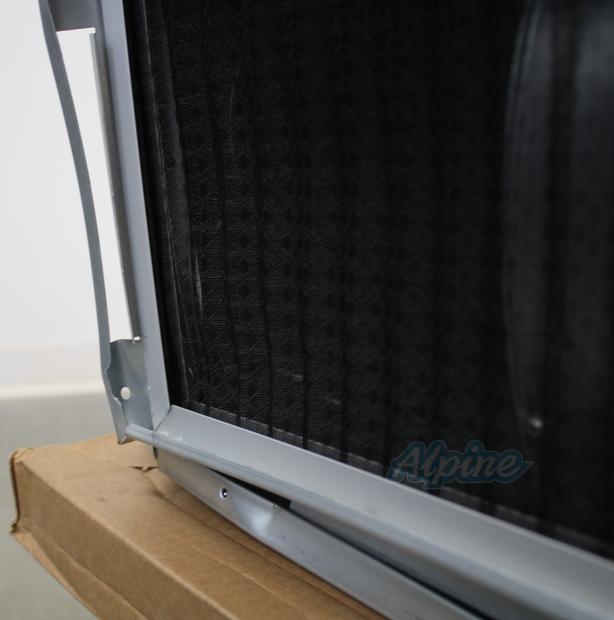

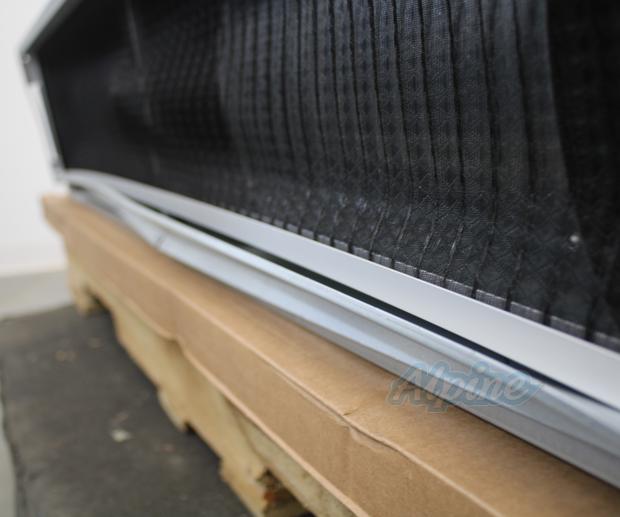

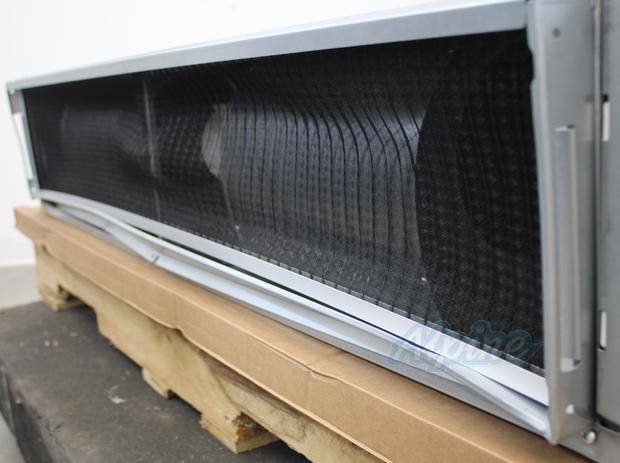

This Blueridge 36K BTU Concealed Duct Interior Unit for Mini Split Systems has some cosmetic damage incurred during shipping.  Bent on bottom and right clapboard.   For detailed photos please click 'See Additional Images' above. This Blueridge 36K BTU Concealed Duct Interior Unit for Mini Split Systems meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

*IMPORTANT! This is an indoor air handler ONLY.  You must have a matching Blueridge outdoor condenser to complete a functioning system.*

Why choose Concealed Duct?

Concealed duct units are mounted in the ceiling of rooms where minimal visibility of the heating and cooling system is desired. Ideally suited for applications where wall space is limited or the ceiling is the preferred installation location with only a small vent opening visible in the ceiling. Powerful, quiet compact and energy efficient, the installation will require minimal ductwork.

Concealed Duct Overview

Like other ductless models, a concealed duct system consists of two parts; an outdoor condensing unit, and an indoor air handler installed in the ceiling or a furr down. The indoor unit and outdoor unit are connected by refrigerant and electrical lines that run through a 3" opening in an exterior wall. This system requires a licensed HVAC technician to connect the lines between the indoor and outdoor components.



For The Custom Plenum Kit Click Here

Specs
System Information
view information
Zones
1
Equipment Type
Air Handler
view information
Indoor Air Handler Type(s)
Concealed Duct
view information
Single Vs. Multi-Zone
Single zone
view information
Mini-Split Series
S2 Series: Standard / S4 Series: Hyper Heat
view information
Product Type
Concealed Duct Air Handler
Component Type
Indoor Unit
view information
Refrigerant
R-410A
Features
Wireless Remote
Included
view information
WIFI (2.4GHz)
Yes (With Adapter)
Performance
Sound Level Indoor (Hi/Mi/Lo)
39 / 37 / 35 Decibels
Air Handler Setpoint Range (Cooling)
62 - 86 °F
Air Handler Setpoint Range (Heating)
62 - 86 °F
view information
Base Heating Capacity
36000 BTU
Nominal Cooling Capacity
36000 BTU
view information
Airflow Capacity
1082 / 912 / 703 CFM
view information
Total Cooling Capacity
3 Ton(s)
view information
Maximum Heating Capacity
40000 BTU
view information
Base Cooling Capacity
36000 BTU
view information
Maximum Cooling Capacity
36000 BTU
view information
Sound Rating, Indoor
39 / 42 / 45.5 Decibels
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
5/8 Inches
view information
Line Set Connection Type
Flare
Product Dimensions
view information
Indoor Air Handler Size, W x H x D
54 x 10 x 30 Inches
Product Weight
106 lbs
Indoor Air Handler Weight
106 Lbs
Important Measurements
view information
Supply Air Opening Size
46.5 x 6.75 Inches
view information
Return Air Opening Size
49.5 x 7.75 inches
view information
Minimum Unit Clearance (Sides to Wall)
11.8 Inches
view information
Minimum Unit Clearance (Top to Ceiling)
0.8 Inches
view information
Minimum Unit Clearance (Bottom to Floor)
90.6 Inches
Warranty
view information
Parts Warranty
5 Years
Certifications
view information
ENERGY STAR® Certified
No
