Actual product may vary from photos.

Model: DiversiTech 6-3060L

Or as low as

Volume Discounts
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.

Product Features & Benefits

  • Rolled edges for durability, ribbed bottoms for rigidity, and reinforced corners for strength
  • Pan holds up to 2 inches of water; comes equipped with 3/4 inch diameter PVC discharge fitting
  • The seamless construction features rolled edges on all sides for maximum safety and integrity
  • No seams, no rust, and no leakage

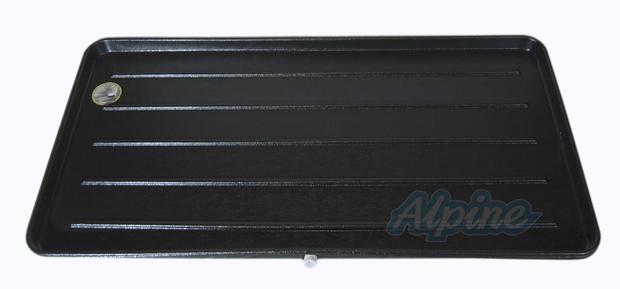

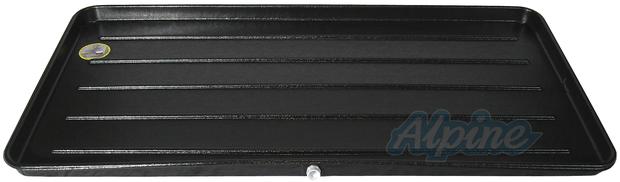

This is a large plastic pan that goes underneath an air handler or furnace and evaporator coil installed in an attic. Its purpose is home safety.

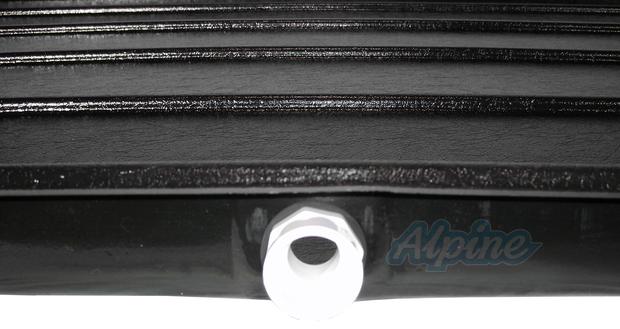

In the event your equipment should leak water due to a malfunctioning of the drain system, the water will be caught in this pan and drained away. The pan has a 3/4 inch female drain fiitting on the center of the long side.

Some cities require by code that a secondary drain pan be installed for all attic air conditioning, air handler or evaporator coil installations. We recommend that you install a drain pan with a float switch in your new attic system. We also recommend using the Alpine EPS FM (2-Pack) with this drain pan to elevate the equipment above the drain pan.

For optimal performance make sure that the drain pan is the correct size for the equipment you are using it with.

System Information
view information
Product Type
Drain Pan
AC Installation Supplies
Alpine EPS FM (2-Pack)
Alpine EPS FM (2-Pack)
Noise Reducing Styrofoam Risers for Horizontal Configurations 4" x 6" x 48" (2-Pack)
Condensation Control
DiversiTech CC-1
DiversiTech CC-1
Condensate Cop, Clamp-On Mechanical Float Switch
DiversiTech WS-1
DiversiTech WS-1
Wet Switch Flood Detector
Equipment Supports
DiversiTech MP-3E (4-Pack)
DiversiTech MP-3E (4-Pack)
(4-Pack) Vibration Isolation Blocks
