24,000 BTU Three Zone Ductless Mini Split Outdoor Condenser
24,000 BTU Three Zone Ductless Mini Split Outdoor Condenser
Model: Blueridge BMKH24MC (Item No. 741473)
- + 1 More
Model: Blueridge BMKH24MC (Item No. 741473)
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$1,15805
Or as low as
Qty:
In Stock and Ready to Ship
Includes
Services
highlights

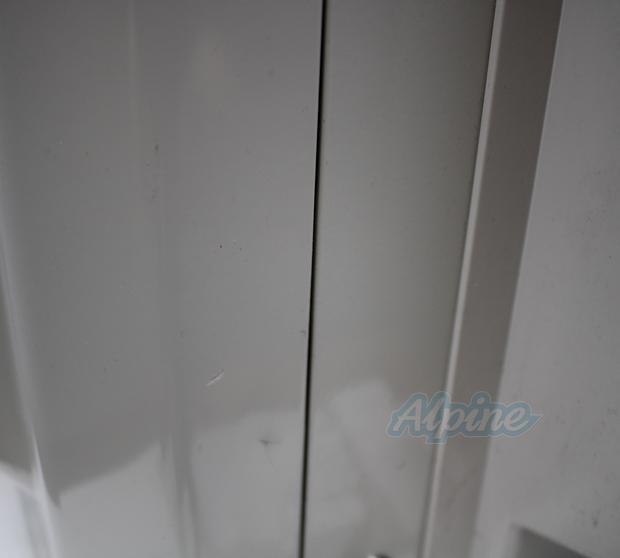

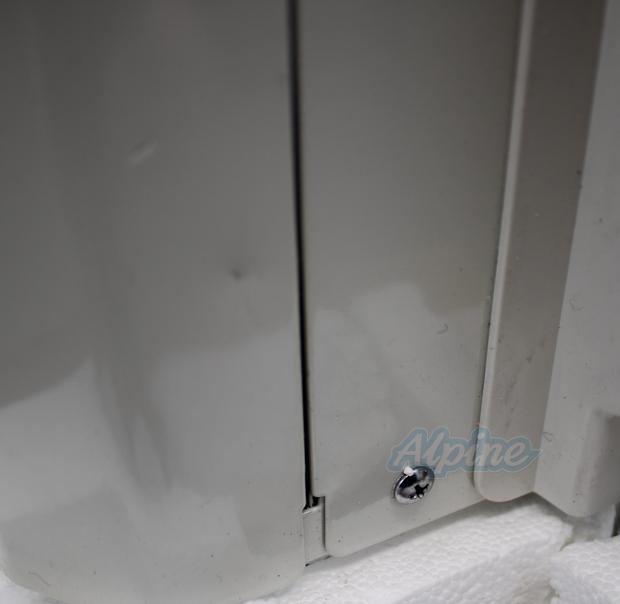

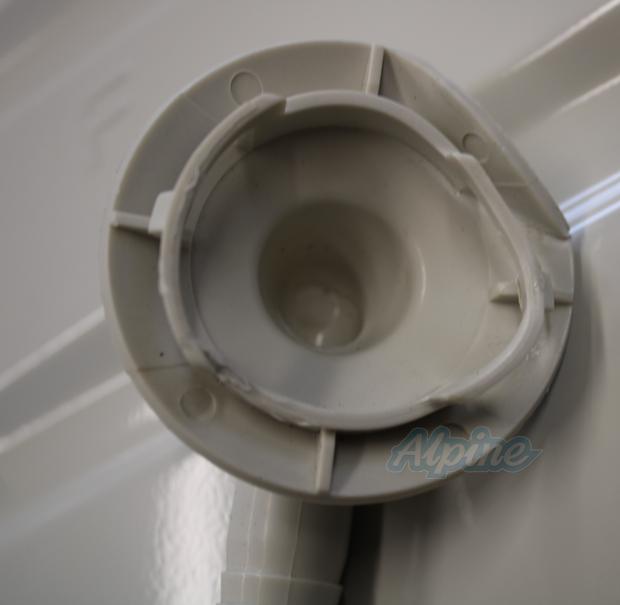

This Blueridge BMKH24MC 24,000 BTU Three Zone Ductless Mini Split Outdoor Condenser has some cosmetic damage incurred during shipping. One of the accessories is broken. A little dent in the right panel towards the bottom and a little scratching. For detailed photos please click 'See Additional Images' above. This Blueridge BMKH24MC 24,000 BTU Three Zone Ductless Mini Split Outdoor Condenser meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.
For product specs and photographs of product in its original condition, click here.
*NOTE: This product is not a complete system, it is only one component. A complete system requires an indoor air handler, outdoor condenser and connecting line set. Please view complete systems here.
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Blueridge mini-splits are a high quality, energy efficient and inexpensive option for cooling and heating many types of spaces without ductwork.
Blueridge mini-splits compare favorably to well-known brands at a fraction of the price. They have the highest online product ratings of all mini-split brands. Their affordability, ease of installation, and high quality make them a favorite among contractors and homeowners.
Benefits
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BMKH24MC (Item No. 741473)
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
24,000 BTU Three Zone Ductless Mini Split Outdoor Condenser
Specs
System Information
Multi Zone Mini-Split Series
XM2: All Climate
Zones
Up to 3
Product Type
Mini Split Outdoor Unit
Single Vs. Multi-Zone
Multi-zone
Efficiency
SEER2
21 SEER2
Coefficient of Performance at 5° F
2.1
Refrigerant Readiness
Primary Refrigerant
R-410A
Factory Precharge
98 Feet
Mobile Home Compatible
Yes
RDS (Refrigerant Detection System) On-Board
No
Additional Charge per Foot (1/4LL)
0.2
Performance
Tonnage
2 Ton(s)
Low Output Cool
7500 BTU
High Output Cool
31400 BTU
Minimum Heat Output
7500 BTU
High Output Heat
31400 BTU
Stages of Heat
Inverter
Stages of Cool
Inverter
Compressor Type
Inverter
Sound Rating
58 Decibels
Ambient Temperature Range (Cooling)
-22 / 118 °F
Ambient Temperature Range (Heating)
-22 / 75 °F
Low Ambient Cooling
Yes
Electrical Information
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Minimum Ampacity
19 Amps
Maximum Fuse/Breaker
25 Amps
Line Set Information
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
3/8 Inches
Line Set Connection Type
Flare
Maximum Line Length per Zone
65.6 Feet
Maximum Line Length all Zones
196.85 Feet
Maximum Height Difference
49.2 Feet
Product Dimensions
Width
37 19/20 Inches
Depth
14 Inches
Height
25 49/50 Inches
Footprint Mounting Holes (W x D)
22.44 x 14.61 Inches
Product Weight
114.7 lbs
Warranty
Parts Warranty
5 Years
Compressor Warranty
7 Years
Certifications
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
Yes
Qualified Manufacturer ID (QMID)
R4M0
Accessories
Enjoy free shipping on any accessories purchased with the Blueridge BMKH24MC (Item No. 741473).
Electrical Disconnect
Alpine AG-DCT
Safety Non-Fused Electrical Disconnect
$2199
Electrical Whips
Alpine AG-WHP10
1/2 x 48 Inches, #10 Gauge Electrical Whip
$2499
Mini-Split Components
Blueridge BMKH18MFCC
18,000 BTU - R410A - Floor/Ceiling Console Ductless Air Handler (L02: 1/4 LL 1/2 SL)
$34000
Blueridge BMKH18MCNS
18,000 BTU - R410A - Low Wall Mounted Ductless Air Handler (L02: 1/4 LL 1/2 SL)
$26000
Mini-Split System Accessories
Alpine MW4/125
125' Stranded Mini-Split Communication Wire - Non-Shielded (600 Volt)
$17999
Alpine MW4/20
20' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$5499
Alpine MW4/250
250' Stranded Mini-Split Communication Wire - Non-Shielded (600 Volt)
$35999
Alpine MW4/30
30' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$6499
Alpine MW4/40
40' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$7999
Alpine MW4/55
55' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$8999
Alpine MW4/070
70' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$10499
Alpine AHMSA1
Adapter 5/16" x 1/4" for Ductless Mini-Split Systems
$1999
Blueridge BY-30
Adjustable Steel Wall Bracket for w/ 30 inch long arms Ductless Mini Splits, 660 lbs Capacity
$7999
Blueridge BGF-620
Slab Stand for Ductless Mini-Split Condensers, 660 lbs Weight Capacity
$13999
DiversiTech 230-MB17CW
(2-Pack) 17" Mounting Blocks with End Caps for Ductless Mini-Split Air Conditioner and Heat Pump Condensers
$4700
DiversiTech EL2436-3
E-Lite 24" x 36" x 3" Mini-Split Condenser Pad
$8499
Mersen STXH240S05
STXH240S05 Type 1 50kA 240/120V Split Phase Surge Protector
$10999
Rectorseal 97705
Rectorseal 97705 Mighty Bracket
$23999
Refrigeration Technologies RT201B
Nylog Blue Gasket, Flare and Thread Sealant
$1399
Outdoor Line Set Covers
Blueridge BGG130
Blueridge Line Set Cover Kit BGG130
$7999
DiversiTech 230-CP6
Coupling for Diversitech 6" SpeediChannel™ Line Set Covers
$1799
DiversiTech 230-D6 1M
39" Long, Diversitech 6" SpeediChannel™ Line Set Cover
$4499
DiversiTech 230-DC6
End Cap for Diversitech 6" SpeediChannel™ Line Set Covers
$1499
DiversiTech 230-DCLIP-10
(10-Pack) SpeediClips™ for DiversiTech Line Set Covers
$1299
DiversiTech 230-DE6
End Fitting for Diversitech 6" SpeediChannel™ Line Set Covers
$1999
DiversiTech 230-EB6
90° Inside Elbow for Diversitech 6" SpeediChannel™ Line Set Covers
$3799
DiversiTech 230-EIN6
90° Outside Elbow for Diversitech 6" SpeediChannel™ Line Set Covers
$3799
DiversiTech 230-FB456
45° Flat Bend for Diversitech 6" SpeediChannel™ Line Set Covers
$3999
DiversiTech 230-FB6
90° Flat Bend for Diversitech 6" SpeediChannel™ Line Set Covers
$3799
DiversiTech 230-FR6
Flat Wall Escutcheon for Diversitech 6" SpeediChannel™ Line Set Covers
$1399
DiversiTech 230-LFB6
90° Long Bend for Diversitech 6" SpeediChannel™ Line Set Covers
$4499
DiversiTech 230-TC46
4" to 6" Reducer Coupling for Diversitech SpeediChannel™ Line Set Covers
$1699
DiversiTech 230-TJ6
T-Joint for Diversitech 6" SpeediChannel™ Line Set Covers
$7699
DiversiTech 230-WC6
Wall Connection Piece for Diversitech 6" SpeediChannel™ Line Set Covers
$4499
DiversiTech 230-WR6
Non-Flat Wall Escutcheon for Diversitech 6" SpeediChannel™ Line Set Covers
$1299
Documents
- Blueridge BMKH24MC Extended Performance(PDF, 117 KB)
- Blueridge Ductless Mini-Split Warranty(PDF, 180 KB)
- Blueridge BMKH24MC Submittal Sheet(PDF, 258 KB)
- Blueridge M3 BMKH18MC-BMKH42MC Installation Manual(PDF, 8.44 MB)
- Bluerige M3 Series BMKH18MC-BMKH42MC Service Manual(PDF, 4.85 MB)
