2.5 to 3 Ton, W 17 1/2 x H 30 x D 21, Painted Cased Evaporator Coil

2.5 to 3 Ton, W 17 1/2 x H 30 x D 21, Painted Cased Evaporator Coil

Model: Direct Comfort DC-CAPF3137B6 (Item No. 699842)

Actual product may vary from photos.

Model: Direct Comfort DC-CAPF3137B6 (Item No. 699842)

You save: 36%
Compare to: $730.00
Or as low as
Express Pay Available

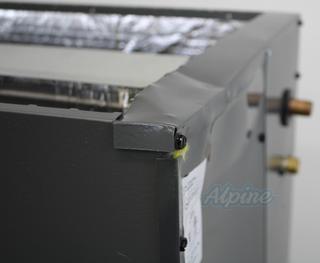

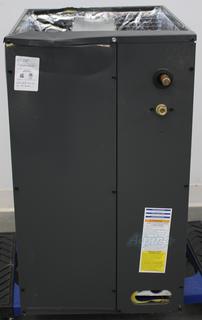

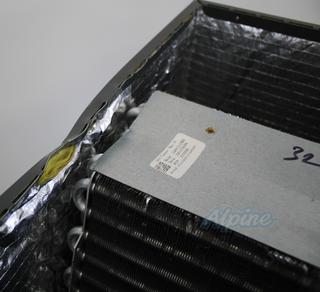

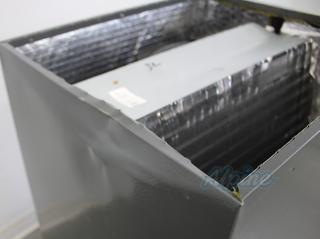

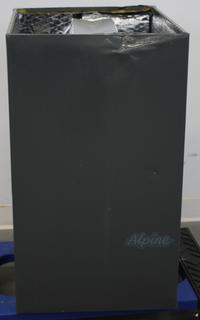

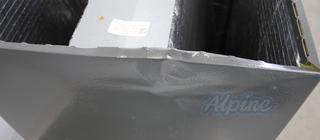

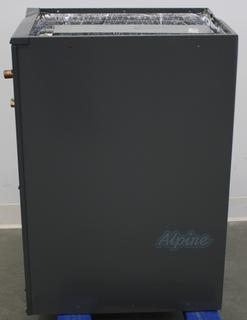

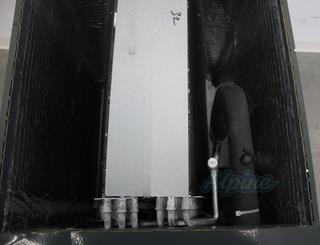

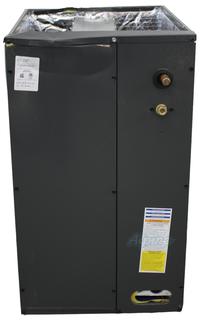

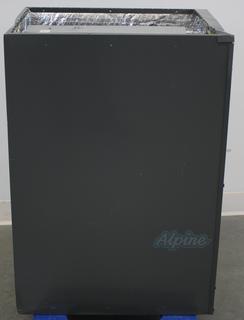

This Direct Comfort DC-CAPF3137B6 2.5 to 3 Ton Cased Evaporator Coil has some cosmetic damage incurred during shipping. This item was returned damage at the top on 2 sides and edges. For detailed photos please click 'See Additional Images' above. This Direct Comfort DC-CAPF3137B6 2.5 to 3 Ton Cased Evaporator Coil meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

The Direct Comfort by Goodman DC-CAPF Cased Upflow/Downflow Indoor Coils are made for split system air conditioners and heat pumps. The coil’s cabinet is painted Architectural Gray.

This coil can operate with a heat pump or condenser of two different tonnages, as noted in the product description above. The unit comes equipped with an orifice (flowrater) for the larger listed tonnage. If you wish to pair the coil with a condenser or heat pump of the smaller tonnage, an orifice in that tonnage will need to be used (unless a TXV is required instead). If you are purchasing a new Direct Comfort by Goodman heat pump or condenser, the required orifice can be found on our site by clicking the Accessories tab on the product page for that item. However, if you are purchasing this coil only and wish to pair it with equipment of the lower tonnage rating as listed on the description for this coil, you will need to separately purchase the smaller orifice and install it in the coil before operating. See this step-by-step guide to learn how to easily do so. Alternatively, instead of an orifice a thermostatic expansion valve (TXV) may be used or required for some equipment, such as 14 SEER and higher heat pumps and all equipment that uses R-410A refrigerant (see equipment spec sheets for details or call us for assistance).

For Tips for Selecting Matched Components and Line Sets click here.

Standard Features

  • Suitable for use with R-410A and R-22 refrigerants
  • Rust-proof, high-temperature, thermoplastic drain pans feature a low water-retention design
  • Available with check flowrater expansion device for heat pump or cooling-only applications
  • Rifled tubing and corrugated aluminum fin coils
  • Foil-faced insulation

Cabinet Features

  • High-quality post-paint cabinet
  • Split-seam front for easy access
view information
Cooling BTUs
36000 BTU
view information
Downflow / Upflow
view information
Suction Line Size (OD)
3/4 Inches
view information
Liquid Line Size (OD)
3/8 Inches
view information
Cooling Tonnage
2.5 / 3 Tons
Number of Rows
view information
Cabinet/Chassis Size
Coil Width
16.5000 inches
Coil Height
27.0000 inches
Coil Depth
21.0000 inches
Equipment Type
Evaporator Coil
view information
Orifice Size
0.071 inches
Plenum Opening Width
16.5 inches
Product Weight
53 lbs
Shipping Weight
53 lbs
view information
R-22 / R-410A
