2.5 to 3 Ton, W 16 1/2 x H 27 x D 20 1/8, Uncased Evaporator Coil

2.5 to 3 Ton, W 16 1/2 x H 27 x D 20 1/8, Uncased Evaporator Coil

Model: Direct Comfort DC-CAUF3137B6 (Item No. 702772)

Actual product may vary from photos.

Model: Direct Comfort DC-CAUF3137B6 (Item No. 702772)

$50000
Or as low as

Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
highlights

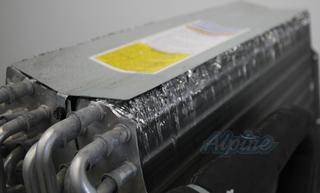

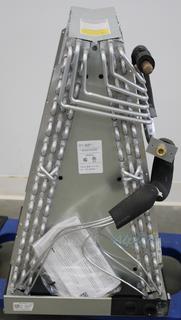

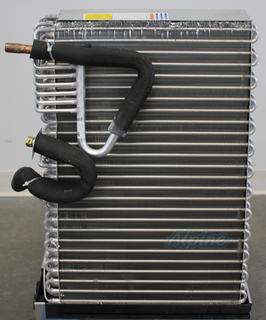

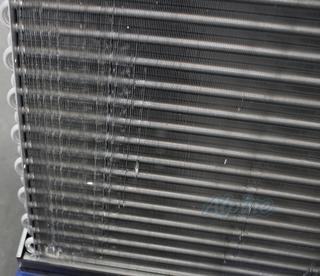

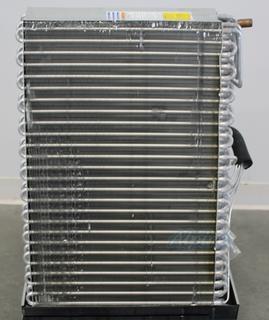

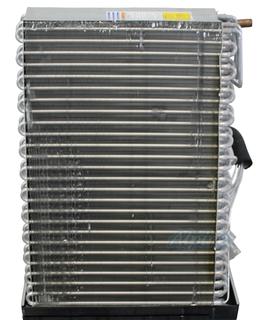

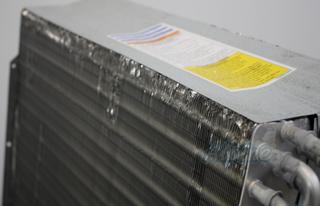

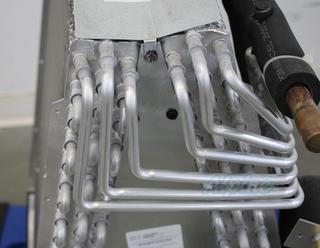

This Direct Comfort 2.5 to 3 Ton DC-CAUF3137B6 Uncased Evaporator Coil has some cosmetic damage incurred during shipping. Item was returned with moderate coil damage and flattened. For detailed photos please click 'See Additional Images' above. This Direct Comfort 2.5 to 3 Ton DC-CAUF3137B6 Uncased Evaporator Coil meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.

For product specs and photographs of product in its original condition, click here.

The Goodman® CAUF Uncased Upflow/Downflow Indoor Coils are made for split system air conditioners and heat pumps.

This coil can operate with a heat pump or condenser of two different tonnages, as noted in the product description above. The unit comes equipped with an orifice (flowrater) for the larger listed tonnage. If you wish to pair the coil with a condenser or heat pump of the smaller tonnage, an orifice in that tonnage will need to be used (unless a TXV is required instead). If you are purchasing a new Goodman heat pump or condenser, the required orifice can be found on our site by clicking the Accessories tab on the product page for that item. However, if you are purchasing this coil only and wish to pair it with equipment of the lower tonnage rating as listed on the description for this coil, you will need to separately purchase the smaller orifice and install it in the coil before operating. See this step-by-step guide to learn how to easily do so. Alternatively, instead of an orifice a thermostatic expansion valve (TXV) may be used or required for some equipment, such as 14 SEER and higher heat pumps and all equipment that uses R-410A refrigerant (see equipment spec sheets for details or call us for assistance).

For Tips for Selecting Matched Components and Line Sets click here.

Standard Features

  • Suitable for use with R-410A and R-22 refrigerants
  • Rust-proof, high-temperature, thermoplastic drain pans feature a low water-retention design
  • Available with check flowrater expansion device for heat pump or cooling-only applications
  • Rifled tubing and corrugated aluminum fin coil construction



Note:  Before you purchase an evaporator coil, make sure the width and height of the coil does not exceed the available area in your ductwork where the coil will be installed.  If it does, select a coil with smaller dimensions.  (If the coil depth exceeds the available space, this is usually okay since the ductwork can be modified to make it fit, as shown in our installation video.)

Specs
System Information
view information
Configuration
Downflow / Upflow
Number of Rows
3
Equipment Type
Evaporator Coil
view information
Refrigerant
R-22 / R-410A
Performance
view information
Base Cooling Capacity
36000 BTU
view information
Cooling Tonnage
3 Tons
Line Set Information
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
3/4 Inches
Product Dimensions
view information
Cabinet/Chassis Size
B
Coil Width
16 1/2 inches
Coil Height
27 inches
Coil Depth
20 1/8 inches
Product Weight
53 lbs
Shipping Weight
53 lbs
Important Measurements
view information
Orifice Size
0.071 inches
