24v Bypass Model with Manual Control

24v Bypass Model with Manual Control

Model: Aprilaire 600M

  • + 2 More
Mouse over or pinch image to zoom in.
Actual product may vary from photos.

Model: Aprilaire 600M

$199.99
You save: 30%
Compare to: $286.42
Or as low as
Volume Discounts
Qty:
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Services
highlights

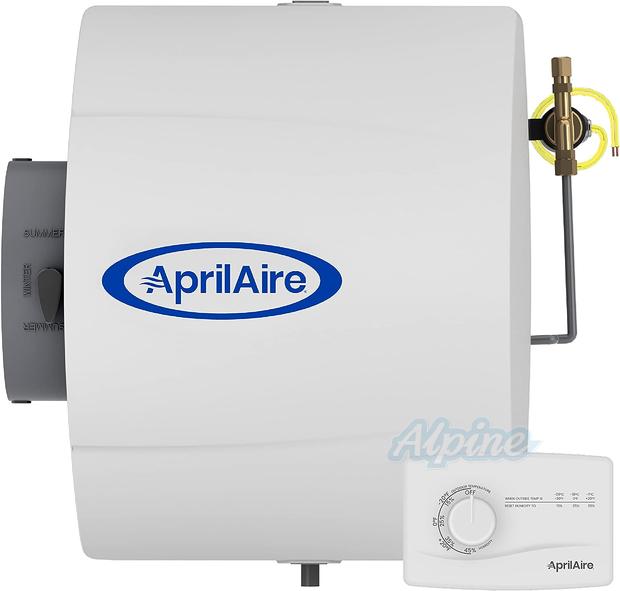

For those rare occurances where an automatic control is not practical, Aprilaire offers a manual control to meet your needs. The Aprilaire Model 600M is the newest addition to the aprilaire humidifier line. It takes humidifier innovation to the next level and performs as good as it looks! The Aprilaire 600M is easier than ever to install because it includes a built-in bypass damper, which means fewer parts to install. Plus, the damper is conveniently labeled for summer and winter settings, allowing you to set it for the entire season with no guesswork involved. This humidifier can be installed on the supply or return air ductwork. It is also left or right side reversible. Includes manual control humidistat, water pad, 110v to 24v transformer, and manufacturer's special instructional DVD.

Other items needed for the installation that are not included: 1/4" copper tubing for water line, 1/2" ID plastic tubing for drain, 6" round ducting and elbow for bypass air, 2-conductor 18 to 22 gauge wire. These items are available in our easy installation kit.



Specs
Humidifier Type
Bypass
Maximum Coverage Area
4000 Square Feet
Water Capacity (GPD)
17 Gallons/Day
Water Feed Rate
3 Gallons/Hour
Evap. Capacity
.70 Gallons/Hour
Humidifier Electrical Requirements
24 Volts
Remote Sensing Bulb
Optional
Bypass Duct Diameter
6 inches
Plenum Opening Size
10W x 12.75H inches
Width
15.38 Inches
Height
15.75 Inches
Limited Warranty
5 Years
