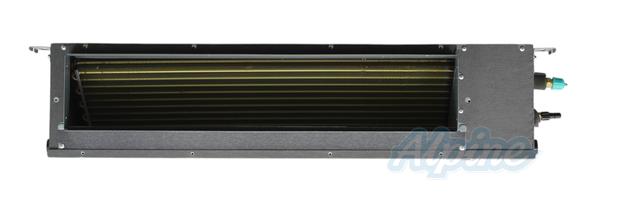

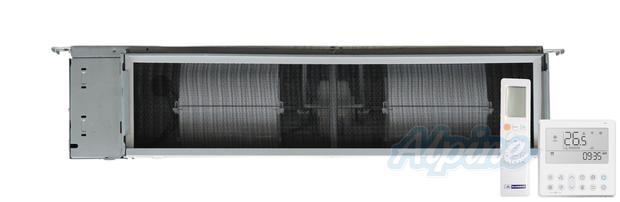

9,000 BTU Concealed Duct Ductless Mini Split Indoor Air Handler, R-454B, 220V, XS5 Series, Ultra Heat, WiFi (L01: 1/4 LL 3/8 SL)
9,000 BTU Concealed Duct Ductless Mini Split Indoor Air Handler, R-454B, 220V, XS5 Series, Ultra Heat, WiFi (L01: 1/4 LL 3/8 SL)
Sale
- + 7 More
- Provides heating and cooling
- Whisper quiet indoors and outdoors
- Sips electricity for low utility costs
- Simple installation + friendly tech support available
Get expert help - freeBuild a mini-split system tailored to your home
Try Mini-split Builder - Free
Shop with Confidence
$72000
highlights
*IMPORTANT! This is an indoor air handler ONLY. You must have a matching Blueridge outdoor condenser to complete a functioning system.*
Why choose Concealed Duct?
Concealed duct units are mounted in the ceiling of rooms where minimal visibility of the heating and cooling system is desired. Ideally suited for applications where wall space is limited or the ceiling is the preferred installation location with only a small vent opening visible in the ceiling. Powerful, quiet compact and energy efficient, the installation will require minimal ductwork.
Concealed Duct Overview
Like other ductless models, a concealed duct system consists of two parts; an outdoor condensing unit, and an indoor air handler installed in the ceiling or a furr down. The indoor unit and outdoor unit are connected by refrigerant and electrical lines that run through a 3" opening in an exterior wall. This system requires a licensed HVAC technician to connect the lines between the indoor and outdoor components.
Also Consider
Specs
System Information
Single Zone Mini-Split Series
XS3: High Efficiency / XS5: All Climate +
Multi Zone Mini-Split Series
XM1: Core / XM3: All Climate +
Indoor Air Handler Type(s)
Concealed Duct
Zones
2 (Expandable)
Connection Type
Flare
Product Type
Concealed Duct Air Handler
Single Vs. Multi-Zone
Multi-zone / Single zone
Features
WIFI (2.4GHz)
Yes (Built in with Wired Controller)
Wireless Remote
Included
Efficiency
EER2
10.5 - 11.0 EER2
Coefficient of Performance at 5Ā° F
1.44 - 2.20
Coefficient of Performance (at 47 F)
1 COP
Refrigerant Readiness
Primary Refrigerant
R-454B
Mobile Home Compatible
Yes
RDS (Refrigerant Detection System) On-Board
Yes
RDS Factory-Programmed For
R-454B
Performance
Tonnage
0.75 Ton(s)
High Output Cool
9000 BTU
High Output Heat
9000 BTU
Airflow Capacity
344.3 / 288.4 / 230.7 / 200.7 / 121.8 CFM
Sound Rating
26 / 27.5 / 28.5 / 29.5 Decibels
Dehumidifying Capacity
0.1 Pints / Hour
Low Ambient Cooling
Capable
Lowest Ambient Temperature (Heating)
-31 Ā°F
Electrical Information
Frequency
60 Hz
Minimum Ampacity
14.5 (115V) / 11 (208/230V) Amps
Line Set Information
Lineset Compatibility Code
L01
Liquid Line Size (OD)
1/4 Inches
Suction Line Size (OD)
3/8 Inches
Line Set Connection Type
Flare
Product Dimensions
Width
27 14/25 Inches
Depth
29 53/100 Inches
Height
9 13/20 Inches
Indoor Air Handler Size, W x H x D
14-1/2 x 21 x 18 Inches
Outdoor Condenser Size, W x H x D
21.28125 x 30.71875 x 11.40625 Inches
Footprint Mounting Holes (W x D)
12.20 x 17.91 Inches
Product Weight
64.15 lbs
Shipping Weight
73.85 lbs
Important Measurements
Minimum Unit Clearance (Sides to Wall)
11.8 Inches
Minimum Unit Clearance (Top to Ceiling)
0.8 Inches
Minimum Unit Clearance (Bottom to Floor)
90.6 Inches
Minimum Unit Clearance (Front)
38.4 Inches
Warranty
Parts Warranty
5 Years
Compressor Warranty
1 Year
Certifications
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STARĀ® Certified
Yes
Qualified Manufacturer ID (QMID)
