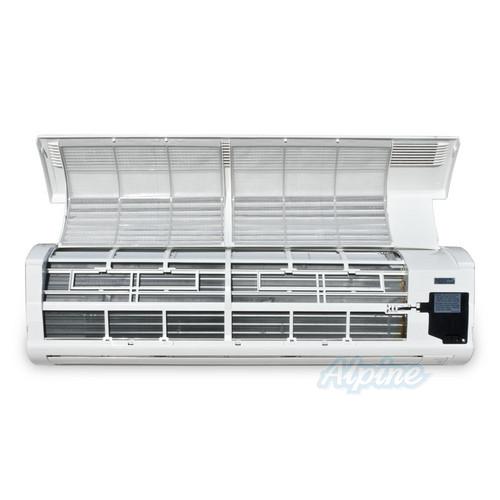

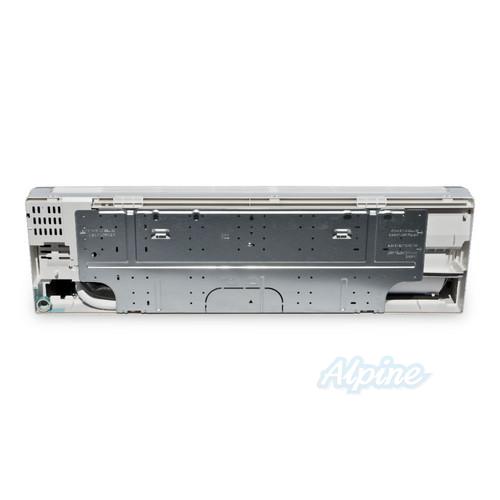

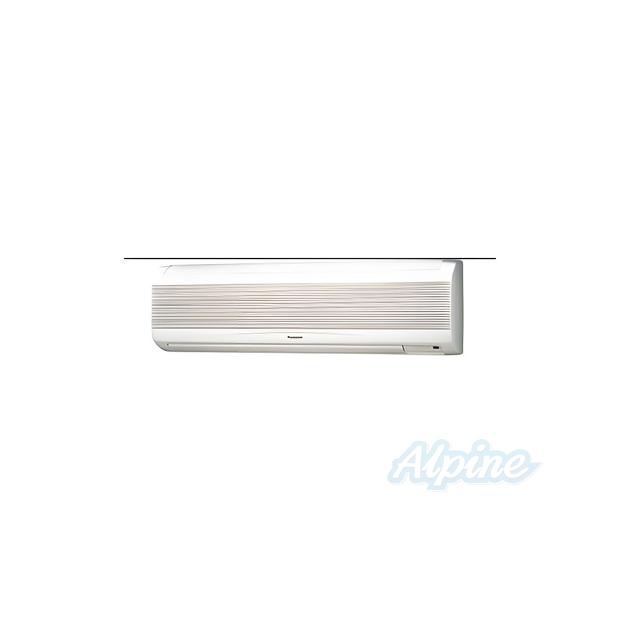

25,200 BTU Single Zone Wall Mounted Air Handler (3/8 LL 5/8 SL)

25,200 BTU Single Zone Wall Mounted Air Handler (3/8 LL 5/8 SL)

New Item!

Model: Panasonic S-26PK1U6

Sale
Actual product may vary from photos.

Model: Panasonic S-26PK1U6

Now $1,11999

Was: $1,725.99

Savings: $606.00

Or as low as

Volume Discounts
Qty:

Only 1 left in stock

Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

*This listing is for the indoor air handler only.*

A working ductless mini-split system requires an indoor air handler as well as an outdoor condenser. If you wish to view our complete ductless mini-split systems, please follow this link



Panasonic’s Ductless Split Air Conditioner products offer wide versatility in solving your cooling for a single. The Indoor unit(evaporator) is mounted inside the room, enclosed in a handsome space saving cabinet. It is connected to the outdoor unit(condenser) via refrigerant lines & inter-unit wiring through a 3-1/2” opening in the wall. Since no ductwork is required, installation is simple, fast & efficient. The indoor unit has been uniquely designed to provide Whisper Quiet operation while delivering comfort throughout the room(s). Panasonic Ductless Split Systems bring together sleek styling in wall, duct or ceiling mounted systems, with whisper quiet operations, quality & reliability you can count on.

Features

Microprocessor-Controlled Operation
Microprocessor control ensures that the temperature and humidity levels in the room are always comfortable.
Wireless Remote ControlPanasonic’s infrared Remote Control with and easy to read LCD Display, gives the user the capability to adjust & set: temperature, sweep (louver control), fan speeds, timer and more, for complete automatic operation.
Self-Diagnosing FunctionDetails of previous warnings are stored and can be verified on the liquid crystal display. This makes it easier to diagnose malfunctions, greatly reducing service labor. (Wired remote controller)
Dry ModeBy coupling compressor and fan operation, intermittent operation can be precisely controlled according to room temperature, so that air is efficiently dehumidified.
3 Fan Speeds and Automatic Fan OperationConvenient microprocessor control automatically adjusts fan speed to High, Medium or Low. According to room temperature to maintain a comfortable airflow throughout the room.
Air Sweep ControlThe air sweep function moves the louver up and down in the air outlet, directing air in a “sweeping” motion around the room and providing comfort in every corner.
Louver ControlLouver can be manually set to the desired angle by remote control.
24-hour Clock with ON/OFF Program TimerThe remote control unit allows you to set a wide variety of timer-based operations. Such functions include automatic ON/OFF with a timer setting, same time ON/OFF every day, ON timer, OFF timer and Combination timer.
Weekly Timer(CZ-ESWC2)
System Controller(CZ-64ESMC1U)
Filter SignFilter sign informs you when filter maintenance is necessary.
25,000 : T-1series, U-1series / 150 hrs: K-1series
Automatic Restart Function after Power FailureThis feature allows the system to automatically resume operation at its preset program, after power is restored from a power failure.
Low Ambient OperationElectric Refrigerant Control ValveThe circulation volume of the refrigerant is controlled by a pulse type electric control valve. In order to attain optimum efficiency, when the power is switched ON, the opening degree of the electric control valve is controlled between 90 and 480 steps.
R-410A

A proven refrigerant blend with a low ozone depleting potential



Specs
System Information
view information
Zones
1
view information
Indoor Air Handler Type(s)
Wall Mount
view information
Single Vs. Multi-Zone
Single zone
view information
Product Type
Wall Mount Air Handler
Component Type
Indoor Unit
view information
Refrigerant
R-410A
Features
view information
WIFI (2.4GHz)
None
Efficiency
view information
Energy Efficiency Ratio
8.9 EER
view information
SEER
14.9 SEER
view information
Heating Seasonal Performance Factor
10.2 HSPF
Performance
view information
Base Heating Capacity
29200 BTU
view information
Air Flow
559 CFM
view information
Total Cooling Capacity
2.75 Ton(s)
view information
Maximum Heating Capacity
29200 BTU
view information
Base Cooling Capacity
25200 BTU
view information
Maximum Cooling Capacity
25200 BTU
view information
Moisture Removal
8.1 Pts/Hr
view information
Cooling Tonnage
2 Tons
view information
Sound Rating, Indoor
38 / 42 / 48 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Voltage
208 / 230 Volts
Line Set Information
view information
Maximum Line Length per Zone
165 Feet
view information
Maximum Height Difference
100 Feet
view information
Liquid Line Size (OD)
3/8 Inches
view information
Suction Line Size (OD)
5/8 Inches
view information
Line Set Connection Type
Flare
Product Dimensions
view information
Width
44 7/8 Inches
view information
Depth
8 31/32 Inches
view information
Height
12 63/64 Inches
view information
Indoor Air Handler Size, W x H x D
44 7/8 x 12 63/64 x 8 31/32 Inches
Product Weight
40 lbs
Warranty
view information
Parts Warranty
5 Years
Certifications
view information
ENERGY STAR® Certified
No
Accessories
Air Boosters & Specialty Fans
Tjernlund AS1
Tjernlund AS1
Room-to-Room Ventilator, 120 VAC Hardwired, 75 CFM
$17499
Condensation Control
Rectorseal SS610E
Rectorseal SS610E
Safe-T-Switch Electronic Condensate Overflow Switch
$11999
Mini-Split System Accessories
Refrigeration Technologies RT201B
Refrigeration Technologies RT201B
Nylog Blue Gasket, Flare and Thread Sealant
$1199
Mini-Split System Line Sets
Alpine 61080250B3B6
Alpine 61080250B3B6
25 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$17999
Alpine 61080150B3B6
Alpine 61080150B3B6
15 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$13999
Alpine 61080350B3B6
Alpine 61080350B3B6
35 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$26999
Alpine 61080500B3B6
Alpine 61080500B3B6
50 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$36999
