This GE Hotpoint PTAC Kit includes all equipment and accessories needed for a typical PTAC installation!!

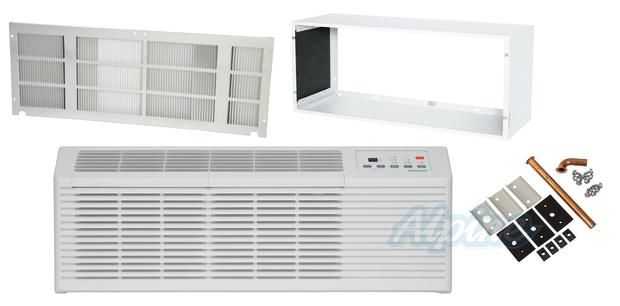

Kit Includes:

	+		+		+

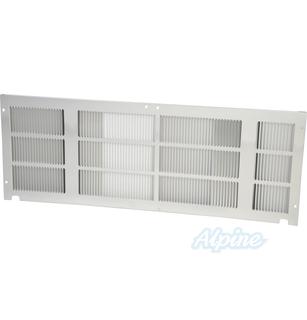

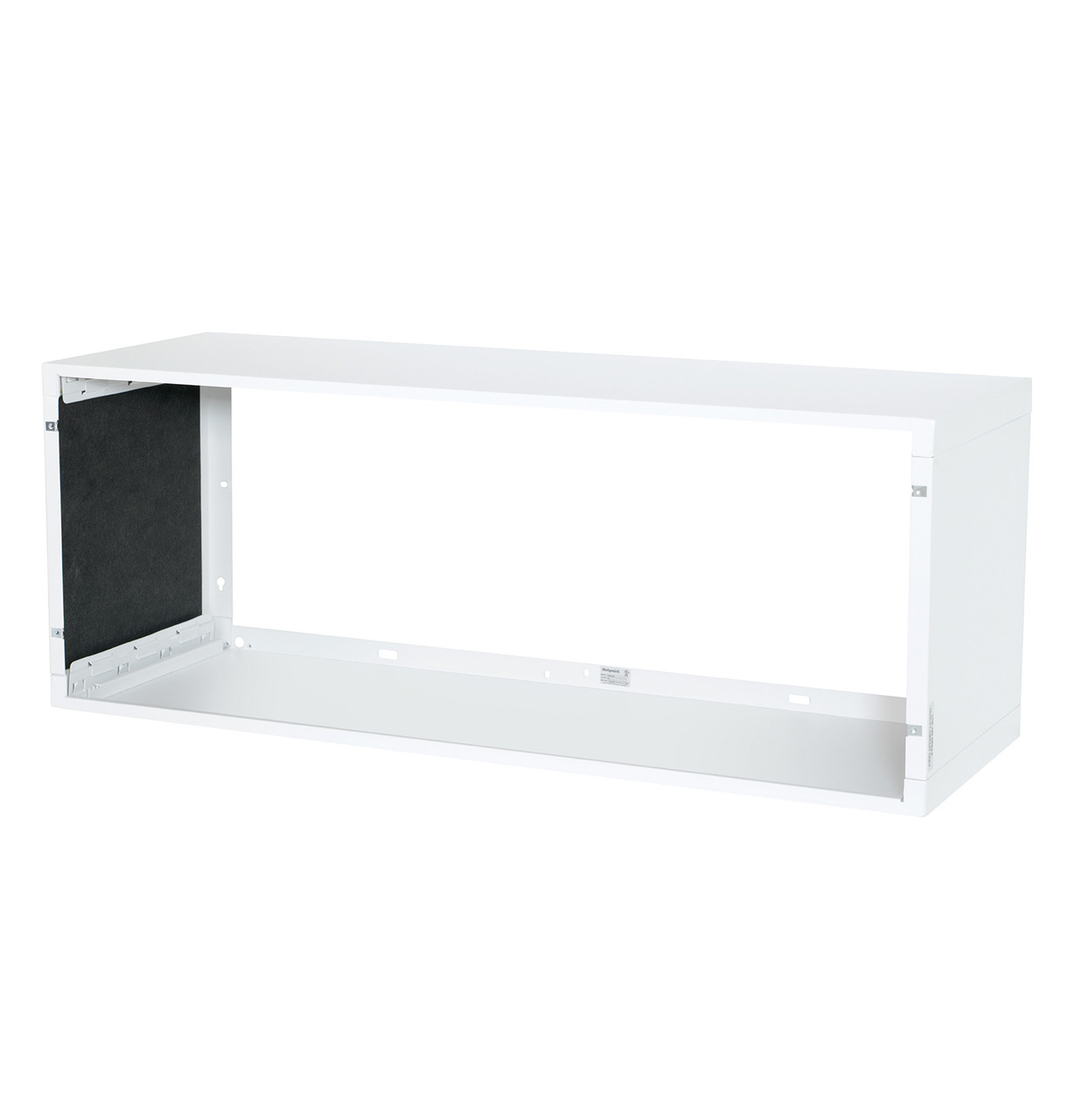

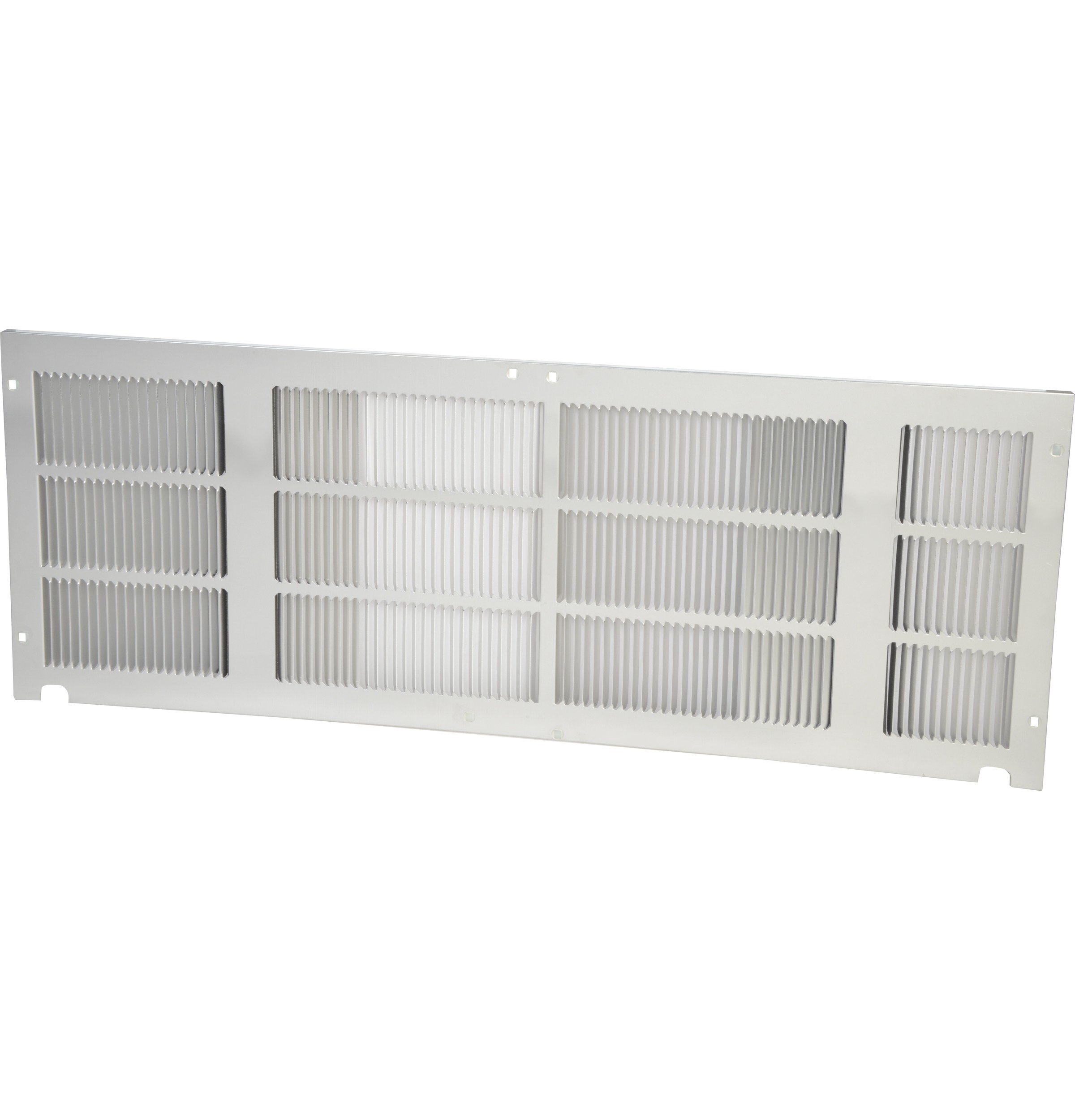

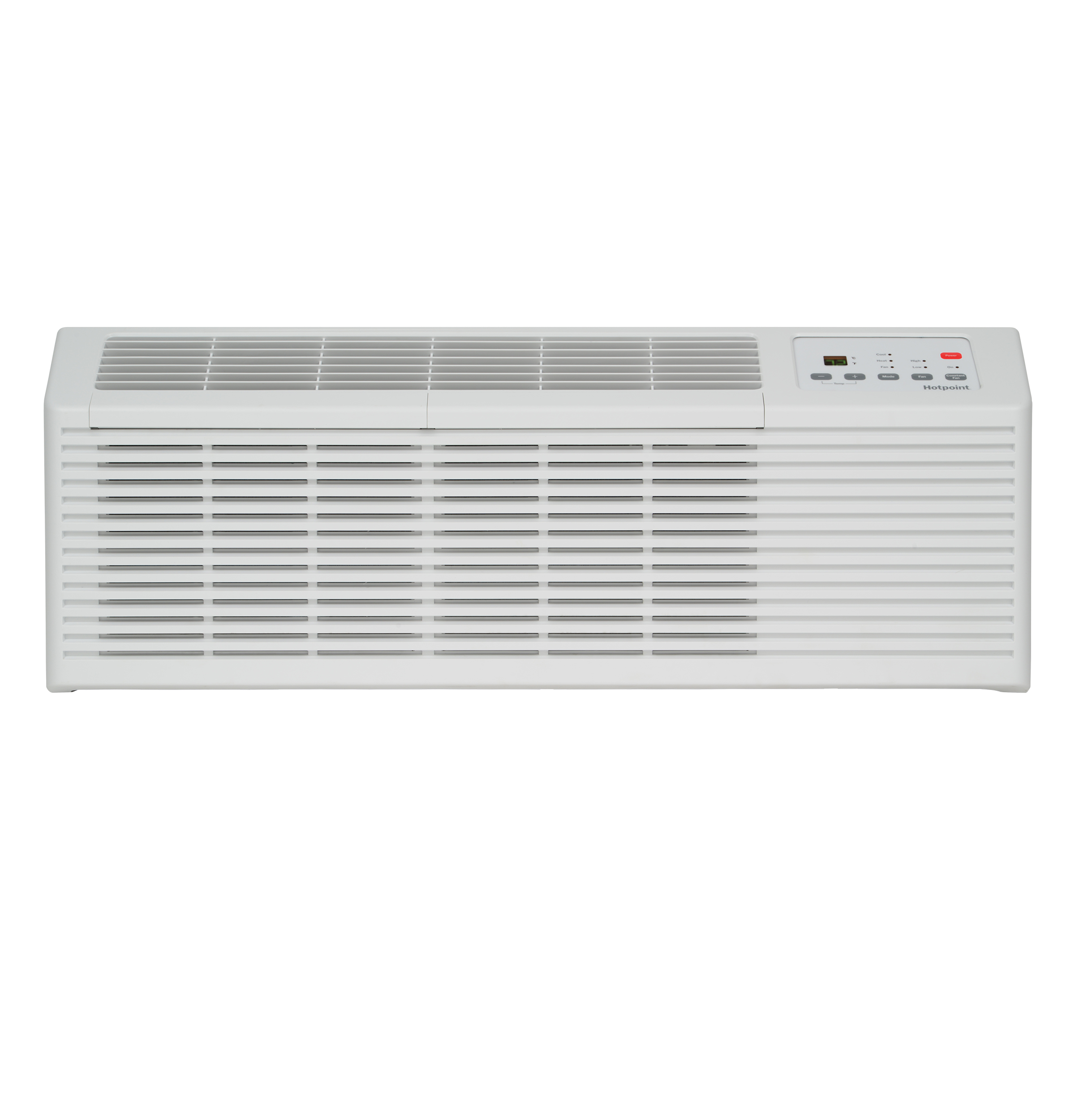

GE AHHS07D3XXA      7,100 BTU Cooling PTAC      6,000 BTU Heating PTAC		GE RAB42MW             Wall Sleeve		GE RAG70        Standard Outdoor Grille		GE RAD10         Condensate Drain Kit

Hotpoint PTAC units are easy to install, simply remove the old and slide in the new! The Hotpoint AHHS07D3XXA PTAC units come with a 20 amp, 208/230 volt power cord included and new installations require a grille and wall sleeve. However, if you are replacing a PTAC unit, your current grille and sleeve may be fine. Hotpoint has a long history as an industry leader in the appliance and comfort control industries.

Other standard features for the Hotpoint PTAC units include:

• 2 Fan Speeds
• Automatic Emergency Heat - will automatically kick in when the temperature drop and the heat pump shuts down
• Removable, washable filters for easy maintenance
• Auto Dimming Display - Automatically adjusts the brightness of the control panel display based on ambient light, reducing glare at night and improving visibility during the day.
• Slinger Condensate Removal - Uses a slinger ring on the fan blade to pick up and fling condensed water onto the condenser coil, aiding in cooling and evaporating the water — which improves efficiency and eliminates the need for a drain.
• Automatic Emergency Heat - Engages the electric heat strip automatically if the primary heat source (usually the heat pump) fails or can’t maintain the set temperature in very cold conditions.
• Freeze Frost Protection - Prevents the unit and room from freezing by activating heat if the temperature drops too low, typically below 40°F (4°C), even if the unit is "off" — protecting pipes and the unit.
• Overheat Protection - Shuts down the heating element or compressor if the internal temperature exceeds safe levels, preventing damage to the unit and reducing fire risk.
• Auto Power Recovery - Restores the unit to its previous operating settings after a power outage, ensuring consistent comfort and avoiding manual reset.
• Self-Diagnostics - Built-in system that monitors key components and provides error codes or alerts when a fault is detected, helping with faster troubleshooting and maintenance.
