12,100 BTU Cooling (1.0 Ton) / 10,500 BTU Heating, 11.9 EER, Supplemental Resistance Heat, R-410A Refrigerant Heat Pump PTAC KIT

12,100 BTU Cooling (1.0 Ton) / 10,500 BTU Heating, 11.9 EER, Supplemental Resistance Heat, R-410A Refrigerant Heat Pump PTAC KIT

Model: GE AZ65H12DAB KIT

  • + 7 More
Mouse over or pinch image to zoom in.
Actual product may vary from photos.

Model: GE AZ65H12DAB KIT

$1,286.95
You save: 27%
Compare to: $1,763.12
Or as low as
Volume Discounts
Qty:
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

This GE Zoneline PTAC Kit includes all equipment and accessories needed for a typical PTAC installation!!

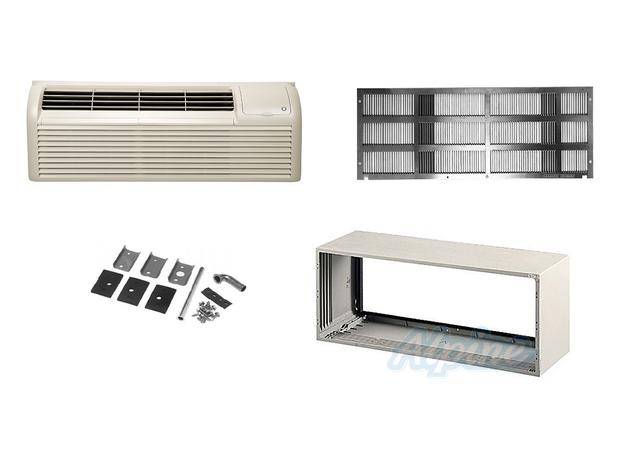

Kit Includes:

GE AZ45E + GE RAB71 Wall Sleeve + GE RAG60 Aluminium Grille + GE RAD10 Drain Kit

     GE AZ65H12DAB

     12,100 BTU Cooling Heat Pump PTAC



            GE RAB71B

            Wall Sleeve



       GE RAG60

       Standard Outdoor Grille



        GE RAD10

        Condensate Drain Kit



Zoneline® Packaged Terminal Air Conditioners provide year-round comfort with individual heating and cooling temperature controls making them the ideal choice for hotels and motels, office buildings and apartments.

A trusted brand for over 50 years, GE Zoneline has been reinvented in Louisville, Kentucky to meet the changing needs of America’s hotel industry. The newest GE Zoneline PTACs are engineered to be quieter, more reliable and more efficient than ever before.

Zoneline units are designed with innovative, universal components, offering greater installation flexibility than ever, whether in new construction, renovation or for replacement of old units. Unless specified by code, they require no sub-base and may be installed flush with finished floor. All models are adaptable to remote and central desk control. Zoneline units may even be placed in unusual locations, such as transom or common-area installations.

Note: This General Electric Zoneline Air Conditioner comes with the 30 Amp RAK330P power cord included.
If you need a different cord, please give us a call!

Please see manufacturers specification sheet for more info on power cord selection.

When purchasing a PTAC unit be sure to match the power plug to the wall recepticle.  View this plug chart which will show you what wall recepticle is required for the PTAC unit of your choice. Also, a wall sleeve and grille are required for new installations and can be purchased as Accessories.

Standard Features:

  • Uses environmentally friendly R-410A refrigerant
  • Two fan motors lower sound levels and increase efficiency
  • Cross-flow blower which circulates the air with less noise than traditional fans
  • Electronic touch controls with clear LED readout provide a user-friendly experience
  • Compatible with a wide variety of thermostats and energy management systems, including central desk control
  • Freeze Sentinal™ protects against damage caused by freezing temperatures in unoccupied rooms
  • Heat Sentinal™ protects against over-heating should the temperature of an unoccupied room reach 85°F
  • Upfront filters made of nylon mesh for ease of cleaning
  • Temperature limiting to prevent expensive over-cooling or over-heating
  • Integrated structural components for easy maintenance and support.
  • Full one-year warranty parts and labor; second through fifth year parts and labor on sealed refrigeration system, second through fifth year limited parts warranty
Specs
Heat Pump
10500 BTUs
Total Cooling Capacity
1 Ton(s)
Cooling BTUs
12100 BTU
Cooling Tonnage
1 Tons
PTAC Cooling BTUs
12000 BTU
Built-In Heater Coil
4.8 kW
Energy Efficiency Ratio
11.9 EER
Coefficient of Performance
3.6 COP
Nominal CFM
449
Refrigerant
R-410A
Dehumidifying Capacity
3.7 Pints / Hour
Reverse Heating Wattage
855 watts
Cooling Wattage
1015 watts
Breaker Size
15-30 amps
Compressor Type
Rotary
Power Cord Included
Yes
NEMA Plug
6-15P or 6-20P or 6-30P
Cut-Out Dimensions, W x H
42 1/4 x 16 1/4 inches
Product Weight
110 lbs
Shipping Weight
113 lbs
Width
42 Inches
Depth
20.8125 Inches
Height
16 Inches
Voltage
208 - 230 Volts
Frequency
60 Hz
Voltage Phase
1
Compressor Warranty
5 Years
Parts Warranty
1 Years
