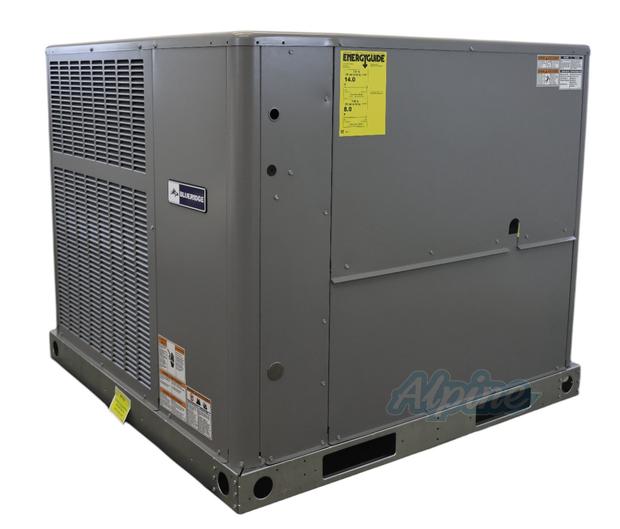

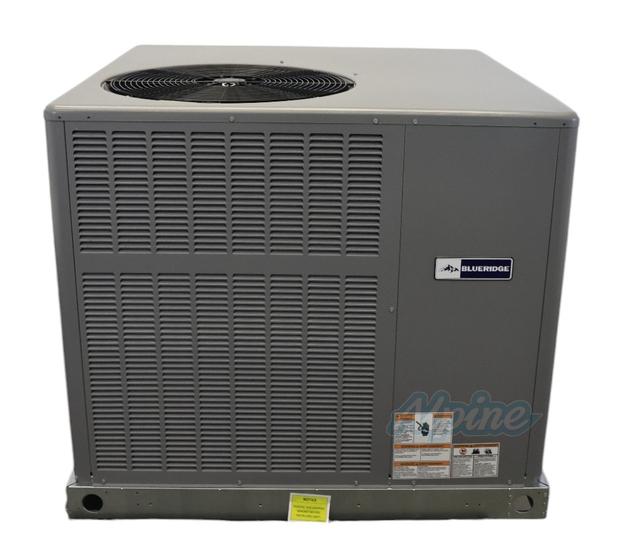

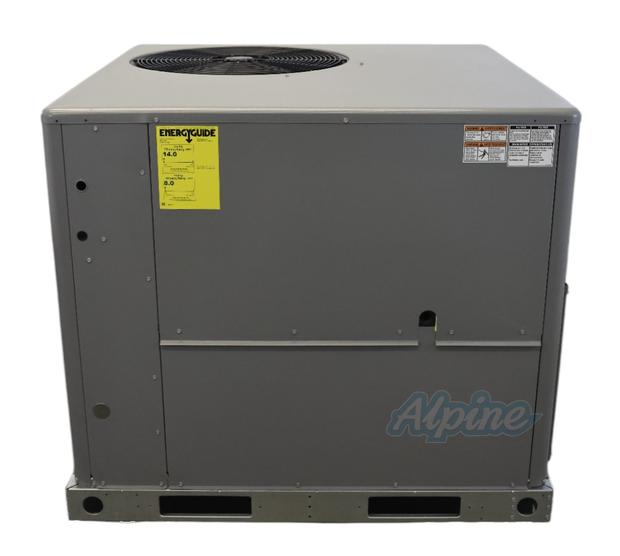

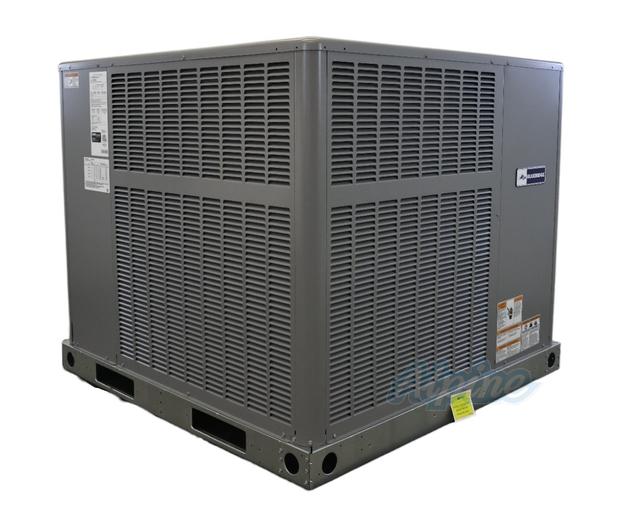

3 Ton Cooling, 32,400 BTU Heating, 14 SEER Self-Contained Packaged Heat Pump, Multi-Position

3 Ton Cooling, 32,400 BTU Heating, 14 SEER Self-Contained Packaged Heat Pump, Multi-Position

Model: Blueridge BPRPHP1436EP-2

Actual product may vary from photos.

Model: Blueridge BPRPHP1436EP-2

All in one unit for easier/quicker maintenance

Provides high efficiency heating and cooling

Simple installation + friendly tech support

Peace of mind with 10 year warranty (with registration)

$3,27000

Or as low as

Volume Discounts
Qty:
Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights
Blueridge BPHP14
Blueridge heat pump packaged units provide heating and air conditioning in a single,all-electric unit located outside. These flexible units can be used for traditional ormanufactured homes and can be installed on the ground or rooftop. Add an optional electricresistance heat kit for heat backup on the coldest days of the year. Ready to use out-of-the-box,simply attach to ductwork and electrical wiring.
Reasons You'll Love Your Blueridge Heat Pump Packaged Unit
Convenience And Comfort
Everything is located outside for whisper-quiet comfort inside
Everything is located outside for whisper-quiet comfort inside
Approved for use with traditional or manufactured homes
Approved for use with traditional or manufactured homes
Model series BPHP14 shown.
Highly Efficient
Heat pump condenser saves big over other forms of electric heat
Heat pump condenser saves big over other forms of electric heat
Different sizes of optional electric backup heater coils (strips) available
Different sizes of optional electric backup heater coils (strips) available
Model series BPHP14 shown.
Designed To Be Easy To Install And Service
Simply connect to ducting and wiring
Simply connect to ducting and wiring
Unique easy-access condenser compartment in event of maintenance
Unique easy-access condenser compartment in event of maintenance
Cabinet design allows for zero-clearance from building structure for tight installation profile
Cabinet design allows for zero-clearance from building structure for tight installation profile
Flush connector means easy ducting connection to any type of duct
Flush connector means easy ducting connection to any type of duct
Model series BPHP14 shown.
Industry-Leading Reliability
Rubber mounted compressor is protected by high and low pressure safety switches
Rubber mounted compressor is protected by high and low pressure safety switches

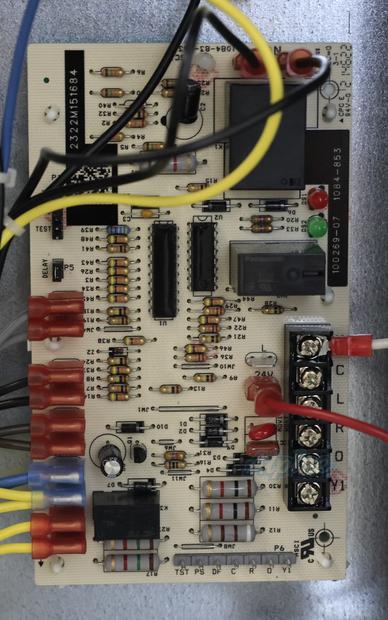

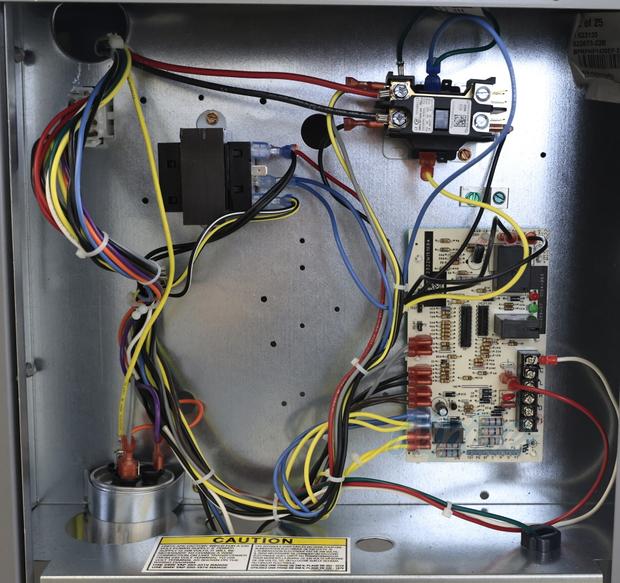

Control board monitors system health and generates diagnostic messages should issue occur
Control board monitors system health and generates diagnostic messages should issue occur
10 year warranty on all parts
10 year warranty on all parts
Model series BPHP14 shown.
Hear What Blueridge Packaged Unit Owners Are Saying
Specs
System Information
view information
Configuration
Downflow / Horizontal
view information
Fuel Type
Electricity
view information
Refrigerant
R-410A
Features
view information
Low Pressure Safety Switch
Yes
view information
High Pressure Safety Switch
Yes
Efficiency
view information
Coefficient of Performance (at 47 F)
3.7 COP
view information
Energy Efficiency Ratio
11.0 EER
view information
Energy Efficiency Ratio 2
10.6 EER2
view information
SEER
14.0 SEER
view information
SEER2
13.4 SEER2
view information
Heating Seasonal Performance Factor
8.0 HSPF
view information
Heating Seasonal Performance Factor 2
6.7 HSPF2
Performance
view information
Total Cooling Capacity
3 Ton(s)
view information
Maximum Heating Capacity
32400 BTU
view information
Base Cooling Capacity
34000 BTU
view information
Nominal CFM
1250
view information
Blower Type
High Efficiency Multi-Speed
view information
Electric Heat Capabilities (Optional)
10 / 15 / 5 / 7.5 Kilowatts
view information
Compressor Type
Scroll
view information
Noise Level
76 Decibels
Electrical Information
view information
Frequency
60 Hz
view information
Voltage Phase
1
view information
Minimum Ampacity
26 Amps
view information
Maximum Overcurrent Protection (Breaker)
35 Amps
view information
Voltage
208 - 230 Volts
Product Dimensions
view information
Width
47 33/50 Inches
view information
Depth
47 33/50 Inches
view information
Height
40 89/100 Inches
view information
Pad Size
50x53 Inches
Product Weight
388 lbs
Shipping Weight
388 lbs
Important Measurements
view information
Supply Air Opening Size
side 13.44w x 14.32h bottom 14.02w x 11.49d Inches
view information
Return Air Opening Size
side 13.44w x 17.07h x bottom 16.77w x 11.49d inches
Warranty
view information
Compressor Warranty
10 Years With Online Registration
view information
Parts Warranty
With Online Registration 10 Years
Certifications
view information
AHRI#
206903517
view information
Qualifies for Govt. Money
No
view information
Approved for US Region(s)
North / Southeast / Southwest
view information
ENERGY STAR® Certified
No
Accessories

Enjoy free shipping on any accessories purchased with the Blueridge BPRPHP1436EP-2.
