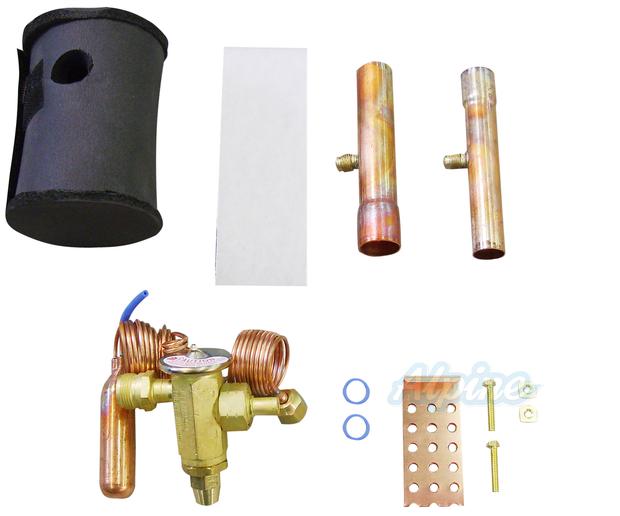

Model: Goodman TXV-V36

$19999
Or as low as

Qty:

Only 6 left in stock

Express Pay Available
checkmark icon
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
highlights

This Thermostatic Expansion Valve (TXV) is specifically designed to be used with the Goodman inverter series of AC units (GVXC20) and inverter heat pump series (GVZC20). This is a required component if you are installing a GVXC20/GVZC20 unit with a certified matching evaporator coil and furnace or modular blower. However, this isn't needed if you are installing a Goodman GVXC20/GVZC20 unit with the certified matching AVPEC series air handler because the necessary electronic expansion valve (EEV) is built into the AVPEC air handlers. If you have any questions please call us at 1 800 865 5931.







Thermostatic Expansion Valves (TXVs) are:

  • A requirement for 14 SEER or higher split system heat pumps
  • A requirement for many condensers or heat pump systems that use the new R-410A refrigerant
  • An optional upgrade for any other air conditioner or heat pump system

Your system will operate more precisely and with greater efficiency with a TXV. These valves offer more control over how much liquid refrigerant enters the evaporator coil. The valves only allow a precise amount of liquid into the evaporator coil to ensure that all liquid that enters fully evaporates. This prevents too little liquid from entering the evaporator making the system run less efficiently. It also prevents too much liquid from entering the evaporator which can cause excess liquid in the suction line. Thermostatic Expansion Valves can be mounted in any position on the evaporator coil inlet and are reliable, efficient and virtually trouble-free. Select the TXV to correspond with the tonnage of your air conditioner or heat pump, as well as to match the type of refrigerant your systems uses, R-22 (standard) or R-410A (new alternative).

When using a TXV, manufacturer's recommend also installing a hard-start capacitor in your heat pump or condenser. This capacitor gives an extra "jolt" of electricity upon startup to push the refrigerant against higher head pressures that are present with a TXV system. If a hard-start capacitor isn't installed, the equipment compressor may sometimes have difficulty starting.

Specs
System Information
view information
Product Type
Thermostatic Expansion Valve
view information
TXV Tonnage
3 Tons
view information
Refrigerant
R-410A
