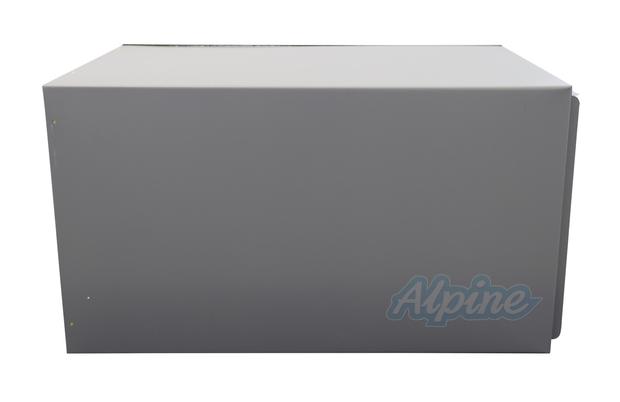

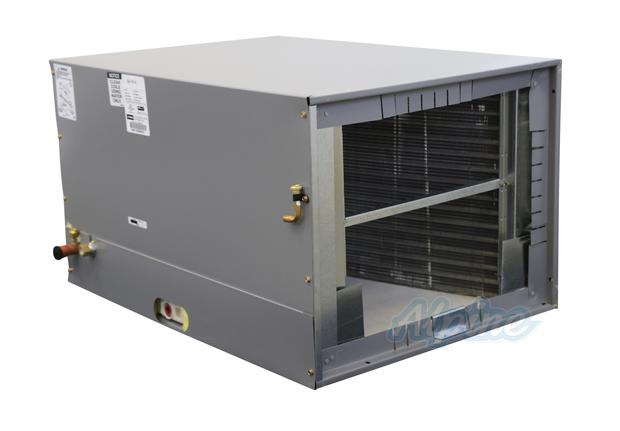

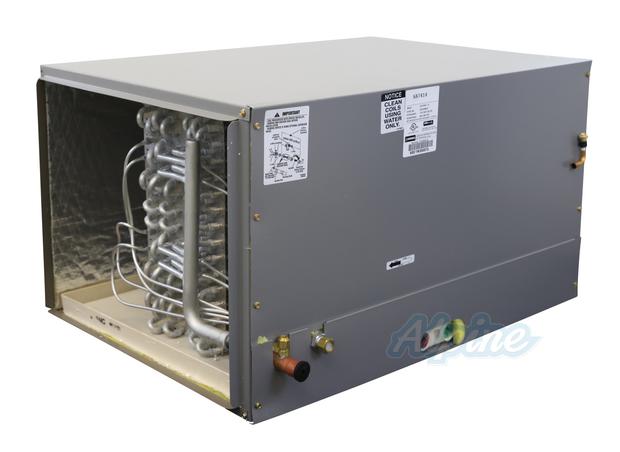

2.5 Ton, W 26 1/2 x H 17 1/2 x D 21 1/2, Horizontal Cased Evaporator Coil
2.5 Ton, W 26 1/2 x H 17 1/2 x D 21 1/2, Horizontal Cased Evaporator Coil
Model: Blueridge BH1P30B
Model: Blueridge BH1P30B
Qty:
Express Pay Available
Add On
Supplemental Air Handler/Evaporator Coil Condensate Supplies Package (P-trap and float switch)
$61.00
3" 7/8" Suction Line Copper Stub
$9.99
120 Volt Condensation Pump with Variable Speed Pump and Floatless Sensor, and 20' of Drain Tubing
$104.99
Safe-T-Switch® Secondary Drain Line Switch
$29.99
Duct Sealant - 1 Gallon (Gray)
$39.99
In Stock and Ready to Ship
If ordered by 1PM CST M-F, ships same day. All items on your order must be in stock for same-day shipping.
Includes
Services
- Pro Installation (Learn More)
highlights
The Blueridge BH1P Cased Horizontal Flow Indoor Coils are for horizontal applications in air conditioning or heat pump split systems.
This unit comes equipped with an orifice (flowrater) for the listed tonnage. If you wish to pair the coil with a condenser or heat pump of a different tonnage, an orifice in that tonnage will need to be used (unless a TXV is required instead). See this step-by-step guide to learn how to easily change the orifice. Alternatively, instead of an orifice a thermostatic expansion valve (TXV) may be used or required for some equipment. Check out some additional installation Tips for Selecting Matched Components and Line Sets to help with your installation project.
Standard Features
- Dedicated horizontal flow application
- OmniguardTM Total Corrosion Protection* our advanced evaporator coil helps protect against leaks and corrosion for long term performance
- Microban® antimicrobial additive in the drain pan to resist mold and mildewgrowth

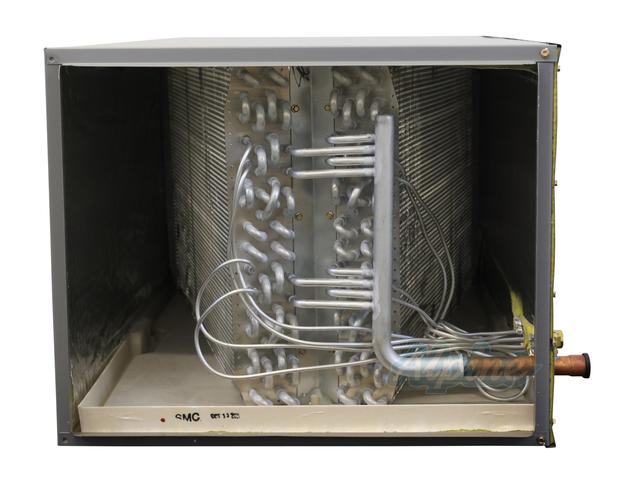

- Aluminum tubing, hairpins, distributors and header tubes. Copper refrigerant connections for easy brazing to both liquid and suction lines.
- Preformed flanges in outlet for quick and easy plenum connections
- One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
- Interlocking door assemblies and snug line seal grommets to minimize air leakage
- Foil-face insulation for easy cleaning
- Tubing located at door split for easy coil service or cleaning
- All drain pans are compatible with UV lights
- All piston coils are compatible with R22 or R410a
- Tightly sealed, painted steel cabinet with wall to wall insulation to ensure <2% air leakage.
- Dual condensate drains on front and back of coil allows flexibility of placement to accomodate left or right airflow furnaces
- 10-year limited parts warranty available when applied with a system. See limited warranty document for details
Also Consider
3 Ton, W 26 1/2 x H 17 1/2 x D 21 1/2, Horizontal Cased Evaporator Coil
Blueridge BH1P36B
In Stock
$
420
00
Specs
Configuration
Horizontal
Cooling BTUs
30000 BTU
Cooling Tonnage
2.5 Tons
Refrigerant
R-22 / R-410A
Number of Rows
3
Liquid Line Size
3/8 Inches
Suction Line Size
7/8 Inches
Orifice Size
0.065 inches
Coil Width
26.5000 inches
Coil Height
17.5000 inches
Coil Depth
21.2500 inches
Plenum Opening Width
19 inches
Plenum Opening Height
16 inches
Cabinet/Chassis Size
B
Shipping Weight
53 lbs
Accessories
AC Installation Supplies
Alpine Home Air Products KIT017
Supplemental Air Handler/Evaporator Coil Condensate Supplies Package (P-trap and float switch)
$61.00
Alpine EPS FM (2-Pack)
Noise reducing styrofoam block for horizontal configurations 4" X 6" X 48" (2-Pack)
$9.99
Alpine SLCS3-78
3" 7/8" Suction Line Copper Stub
$9.99
Condensation Control
AquaGuard AG-G30X50 (AG-4200)
30" x 50" Secondary Drain Pan with Float Switch
$160.00
AquaGuard AG-G30X66 (AG-4200)
30" x 66" Secondary Drain Pan with Float Switch
$190.00
DiversiTech 6-3050L
30" x 50" Secondary Drain Pan
$69.99
DiversiTech IQP-120
120 Volt Condensation Pump with Variable Speed Pump and Floatless Sensor
$104.99
DiversiTech IQP-120T
120 Volt Condensation Pump with Variable Speed Pump and Floatless Sensor, and 20' of Drain Tubing
$104.99
Rectorseal SS2
Safe-T-Switch® Secondary Drain Line Switch
$29.99
Duct Sealant
Diversitech 800-008
Pro-Air Duct Sealant – 1/10 Gallon Tube – 10.5 oz.
$9.99
Hardcast CCWI-181
Duct Sealant - 1 Gallon (Gray)
$39.99
Sheet Metal Transition Kits
Alpine Home Air Products KIT081T
Sheet Metal Transition Kit With Sheet Metal Bender
$99.98
Supply Air Plenums
Alpine PLN121
Supply Plenum 17 x 20 x 30 Inches
$114.99
Tools
Diversitech 640-UL25
Diversitech 640-UL25 Foil Tape
$34.99
Documents
- Blueridge Unitary Equipment Warranty (Ver. 2.1)(PDF, 470 KB)
- Blueridge Evaporator Coil Spec Sheet(PDF, 650 KB)
- Blueridge Horizontal Coil Installation Manual(PDF, 902 KB)
