24,000 BTU Wall Mounted Ductless Air Handler (L04: 3/8 LL 5/8 SL)
24,000 BTU Wall Mounted Ductless Air Handler (L04: 3/8 LL 5/8 SL)
Model: Blueridge BXAFA24WM0 (Item No. 741805)
- + 5 More
Model: Blueridge BXAFA24WM0 (Item No. 741805)
Provides heating and cooling
Whisper quiet indoors and outdoors
Sips electricity for low utility costs
Simple installation + friendly tech support available
$60800
Or as low as
Qty:
In Stock and Ready to Ship
Includes
highlights

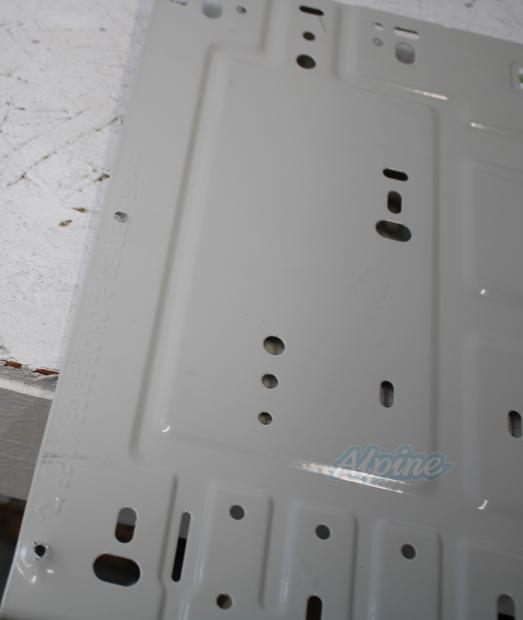

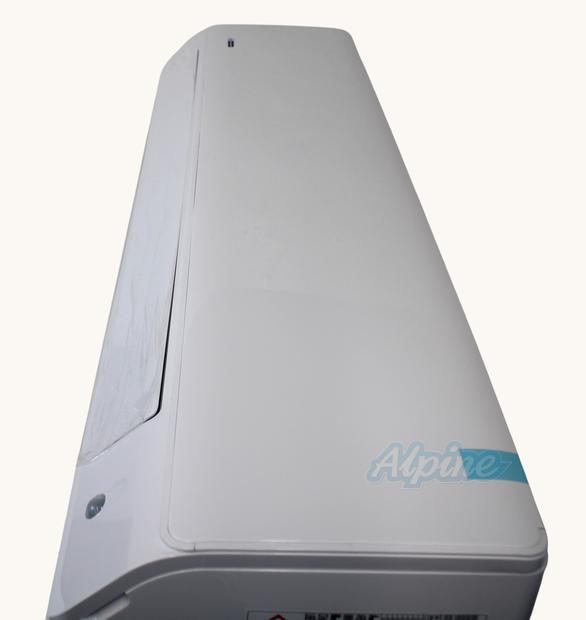

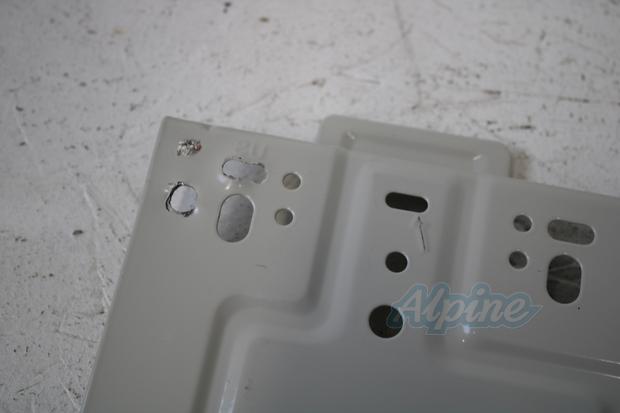

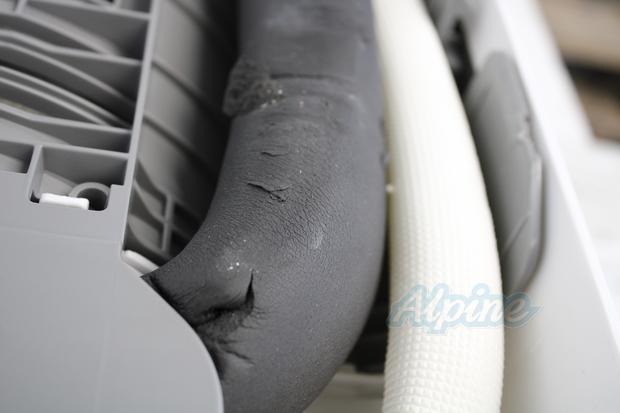

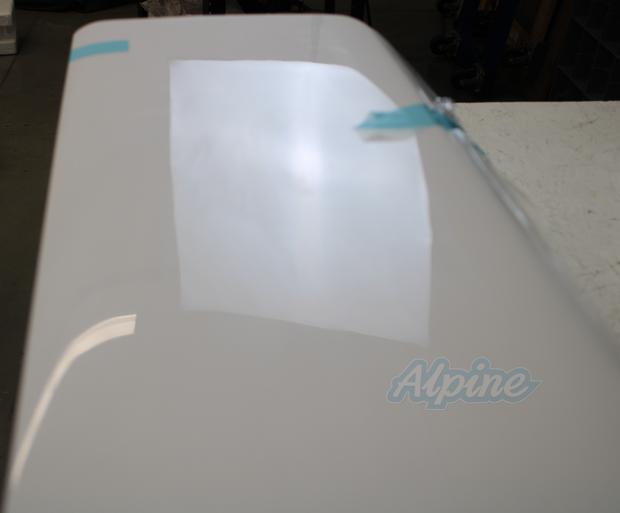

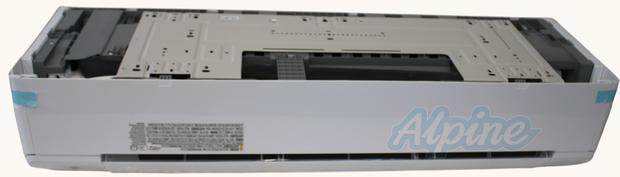

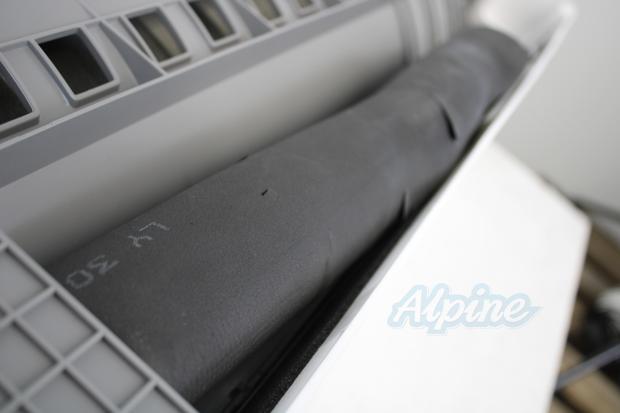

This Blueridge BXAFA24WM0 24,000 BTU Ductless Wall Mounted Air Handler has some cosmetic damage incurred during shipping. Rips and tears on the insulation of the evaporator hose. Screw holes in the insulation plate have a little wear. Scratches on the top panel. For detailed photos please click 'See Additional Images' above. This Blueridge BXAFA24WM0 24,000 BTU Ductless Wall Mounted Air Handler meets the full manufacturer's specifications, comes with the full manufacturer's warranty, and includes Alpine's premium guarantee.
For product specs and photographs of product in its original condition, click here.
This is an air handler ONLY - for a complete system, you must attach this component to an outdoor condenser.
*NOTE: This product is not a complete system, it is only one component. A complete system requires an indoor air handler, outdoor condenser and connecting line set. Please view complete systems here.
Heat or Cool Any Space,
Simply and Affordably
Simply and Affordably
Surprisingly
Affordable
Affordable
Incredibly
Quiet
Quiet
Great
Reviews
Reviews
Easy to
Install
Install
What is a Blueridge Ductless System?
It's a better way to heat and cool any space without the need for ductwork. Includes an outdoor heat pump condenser and 1 to 5 indoor air handlers. It's inexpensive to own and operate, easier to install and whisper quiet.
Homeowners and contractors love Blueridge ductless mini-splits. If you own a home, you will want one.
Blueridge mini-splits are a high quality, energy efficient and inexpensive option for cooling and heating many types of spaces without ductwork.
Blueridge mini-splits compare favorably to well-known brands at a fraction of the price. They have the highest online product ratings of all mini-split brands. Their affordability, ease of installation, and high quality make them a favorite among contractors and homeowners.
Benefits
Quiet
Both the indoor and outdoor units operate so quietly you may not be aware they are running. You will just be aware that you are comfortable.
Affordable
The great value extends beyond the low purchase price of these units. You will be pleasantly surprised by how inexpensive they are to operate.
Efficient
Lower your utility bills with inverter technology, by using less electricity and no fossil fuels to accomplish your heating and cooling needs. This is intelligent equipment for a sustainable and comfortable lifestyle.
Versatility
Because there is no ductwork, this is a solution for all kinds of hard-to-fit applications. Any room or space can be transformed into a place for you and others to enjoy for years to come.
Simple Installation
If you're handy, you can accomplish 90% of the installation yourself by following the simple directions and watching our helpful video. Bring in a professional to finish the job and you're set.
Heat or Cool Any Type of Space:
Entire homes
Condos
Bonus rooms
Hotel rooms
Small businesses
Studios
Tiny homes
Coffee shops
Pool houses
Workshops
Offices
Man caves
Attics
Casitas
Retreat spaces
Sun rooms
Basements
Garages
Enclosed porches
Mother-in-law apartments
Many more applications
Videos
Blueridge Ductless Mini-Split AC Highlights
Blueridge Mini-Splits also Provide Heat!
Great customer reviews
Great Product!
Simon
Cleveland, GA
This is an outstanding product at a reasonable price.
Mike
Birmingham AL
Great mini-split system!
Marq
New Bern, NC
Installed easily and works very quietly.
Mike
Palm Desert, CA
Excellent! Works great.
Vic
Jefferson, GA
I would buy it again.
Jack
Johns Creek, GA
Installation
Step 1
Mount
Once you have received the product, mount the indoor and outdoor units to your desired resting location.
Step 2
Connect
Next, run the line sets, drain line, and electrical wires from the indoor unit(s) to the outdoor unit.
Step 3
Electrical
Run a 220 volt power circuit from your main breaker to the outdoor disconnect. Then run the electrical whip from the disconnect to the outdoor unit.
Step 4
Pro Start Up
We'll help you get an HVAC contractor who will pressure test the line sets, check for leaks, and release refrigerant. Click Here For Details
How to Install a Blueridge Ductless Mini-Split AC System
CEO and Founder
Andrew Arthurs
Alpine Home Air Products
Blueridge ductless mini-splits are exclusive to Alpine Home Air and are one of our most popular brands. These units are manufactured to our specifications by the largest, most reputable HVAC manufacturer in the world.
Our customers love them! We receive rave reviews because these products are solidly-engineered, thoroughly tested, reliable, and quiet. Our customers order Blueridge because of the incredible value and savings. Competing brands cost more for one reason: a long supply chain raising the price before the product hits your door. With Blueridge, we buy directly from the manufacturer and our customers save thousands of dollars. Long established throughout the rest of the world, mini-splits are quickly gaining popularity across America. The ease of installation, versatility, and savings cannot be matched. We know you will love our Blueridge mini-splits as much as we do. Please tell your friends and help us get the word out.
Blueridge BXAFA24WM0 (Item No. 741805)
Standard Features
Convenient remote control enables unique temperatures to be set per zone.
High-efficiency inverter technology allows for even cooling and heating while reducing energy costs.
Gold fin condenser coil coating extends the life of your system by protecting it from corrosion.
Intelligent sleep function adjusts to your sleep pattern in order to maximize your comfort and reduce energy costs. User controls direct air flow.
Intelligent defrost reduces energy and defrost time by only defrosting when needed.
This System Includes*
24,000 BTU Wall Mounted Ductless Air Handler (L04: 3/8 LL 5/8 SL)
Specs
System Information
Single Zone Mini-Split Series
XS3: High Efficiency / XS5: All Climate +
Multi Zone Mini-Split Series
XM1: Core / XM3: All Climate +
Indoor Air Handler Type(s)
Wall Mount
Zones
1
Product Type
Hyper Heat
Single Vs. Multi-Zone
Single zone
Features
WIFI (2.4GHz)
Yes (With Adapter)
Wireless Remote
Included
Efficiency
SEER2
21 SEER2
EER2
13 EER2
HSPF2
13.5 HSPF2
Refrigerant Readiness
Primary Refrigerant
R-454B
Mobile Home Compatible
Yes
RDS (Refrigerant Detection System) On-Board
Yes
RDS Factory-Programmed For
R-454B
Performance
Tonnage
2 Ton(s)
High Output Cool
24000 BTU
High Output Heat
24000 BTU
Airflow Capacity
618 / 412 / 317.8 CFM
Sound Rating
16 / 27 / 38.5 / 43.5 / 54.5 Decibels
Air Handler Setpoint Range (Cooling)
60 - 86 °F
Air Handler Setpoint Range (Heating)
60 - 86 °F
Electrical Information
Frequency
60 Hz
Line Set Information
Lineset Compatibility Code
L04
Liquid Line Size (OD)
3/8 Inches
Suction Line Size (OD)
5/8 Inches
Line Set Connection Type
Flare
Product Dimensions
Width
46 17/20 Inches
Depth
11 1/5 Inches
Height
14 59/100 Inches
Product Weight
43.65 lbs
Important Measurements
Minimum Unit Clearance (Sides to Wall)
4.75 Inches
Minimum Unit Clearance (Top to Ceiling)
6 Inches
Minimum Unit Clearance (Bottom to Floor)
70 Inches
Warranty
Parts Warranty
5 Years
Certifications
Approved for US Region(s)
North / Southeast / Southwest
ENERGY STAR® Certified
Yes
Qualified Manufacturer ID (QMID)
R4M0
Accessories
Condensation Control
Rectorseal SS610E
Safe-T-Switch Electronic Condensate Overflow Switch
$12999
Mini-Split System Accessories
Alpine MW4/125
125' Stranded Mini-Split Communication Wire - Non-Shielded (600 Volt)
$17999
Alpine MW4/20
20' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$5499
Alpine MW4/250
250' Stranded Mini-Split Communication Wire - Non-Shielded (600 Volt)
$35999
Alpine MW4/30
30' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$6499
Alpine MW4/40
40' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$7999
Alpine MW4/55
55' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$8999
Alpine MW4/070
70' Stranded Ductless Mini-Split Communication Wire - Non-Shielded (600 Volt)
$10499
Alpine AHDH100
5/8in Coil Standard Drain Hose 100ft Length
$6999
Alpine AHDH50
5/8 in. Coil Standard Drain Hose 50 ft. Length
$3999
Alpine AHDH20
5/8in Inner Diameter Drain Hose, 20ft Length
$1999
Blueridge 120N(X6W)
Wired controller with WIFI built-in, 120N(X6W) (replaces 17317100A36377 )
$11999
Blueridge BR-CP40S
40L/H Undermount Ductless Mini-Split Condensate Pump
$12999
Cielo Breez Max (White)
Cielo Breez Max (White) - Smart Wi-Fi Air Conditioner Controller (Works with Alexa and Google Assistant)
$12999
Cielo Breez Max (Black)
Cielo Breez Max (Black) - Smart Wi-Fi Air Conditioner Controller (Works with Alexa and Google Assistant)
$12999
DiversiTech 230-DLF25
Drain Line Fitting, Metric to 3/4 in.
$1799
Alpine AHDH164
5/8in Coil Standard Drain Hose 164 ft Length
$9999
Rectorseal 97705
Rectorseal 97705 Mighty Bracket
$23999
Refrigeration Technologies RT201B
Nylog Blue Gasket, Flare and Thread Sealant
$1399
Blueridge WFWM
WiFi Adapter for Blueridge BM Series - Wifi Capable Wall Mount and Low Wall Air Handlers - Version 2.0
$5999
Mini-Split System Line Sets
Alpine L04-F100
100 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$74999
Alpine L04-F15
15 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$15999
Alpine L04-F25
25 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$20999
Alpine L04-F35
35 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$31999
Alpine L04-F50
50 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$41999
Alpine L04-F65
65 Foot 3/8 LL 5/8 SL Ductless Mini-Split Line Set
$51999
Outdoor Line Set Covers
Blueridge BWS3B
Wall Sleeve 3 in. x 9.4 in. – 7-3/4 in.
$1499
Ultraviolet Purifiers & Replacement Parts
DiversiTech TUV-MINI-LED
Mini UV Light LED System for Mini-Splits
$24999
Documents
Blueridge Ductless Mini-Split Warranty(PDF, 180 KB)- Blueridge BXAFA24WM0 Specifications Sheet(PDF, 32.2 KB)
- Blueridge BXAFA WM Installation Instructions(PDF, 6.71 MB)
